Home >> Toyota >> 2007 >> Highlander Hybrid, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (Hybrid) >> Throttle Body >> Components

Throttle Body: Components

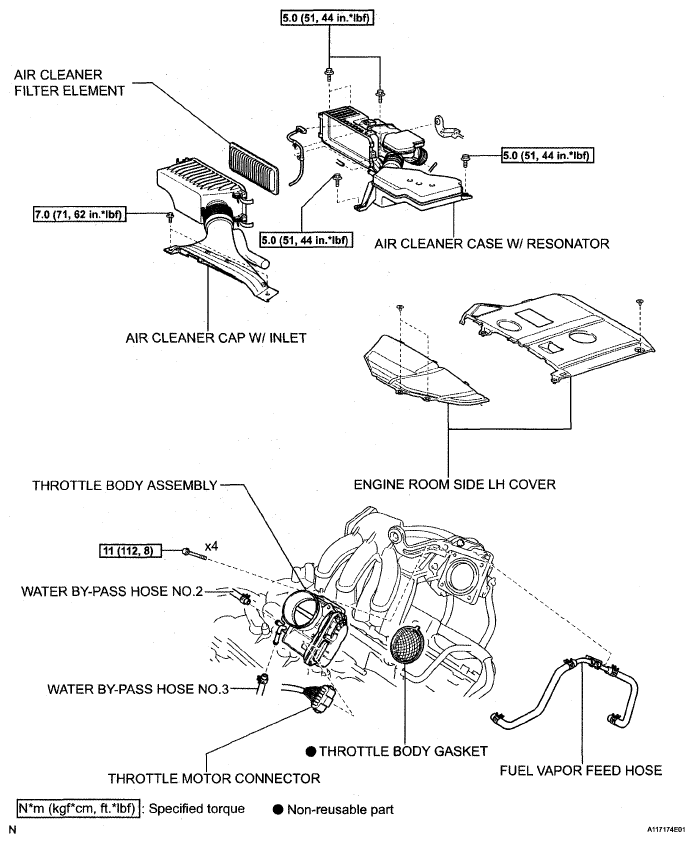

Fig 1: Throttle Body Replacement Components With Torque Specifications
G05200224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
