Interior Light: Notes

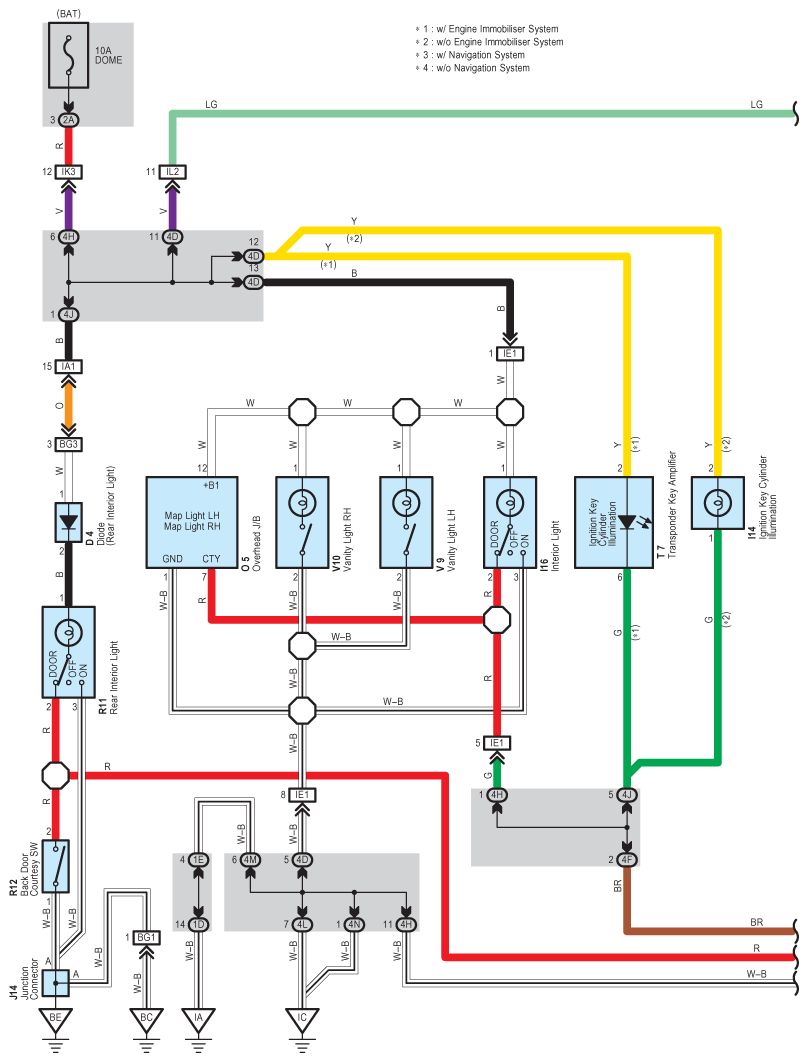

Fig 1: Interior Light System Wiring Diagram (1 Of 3)
G08860912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

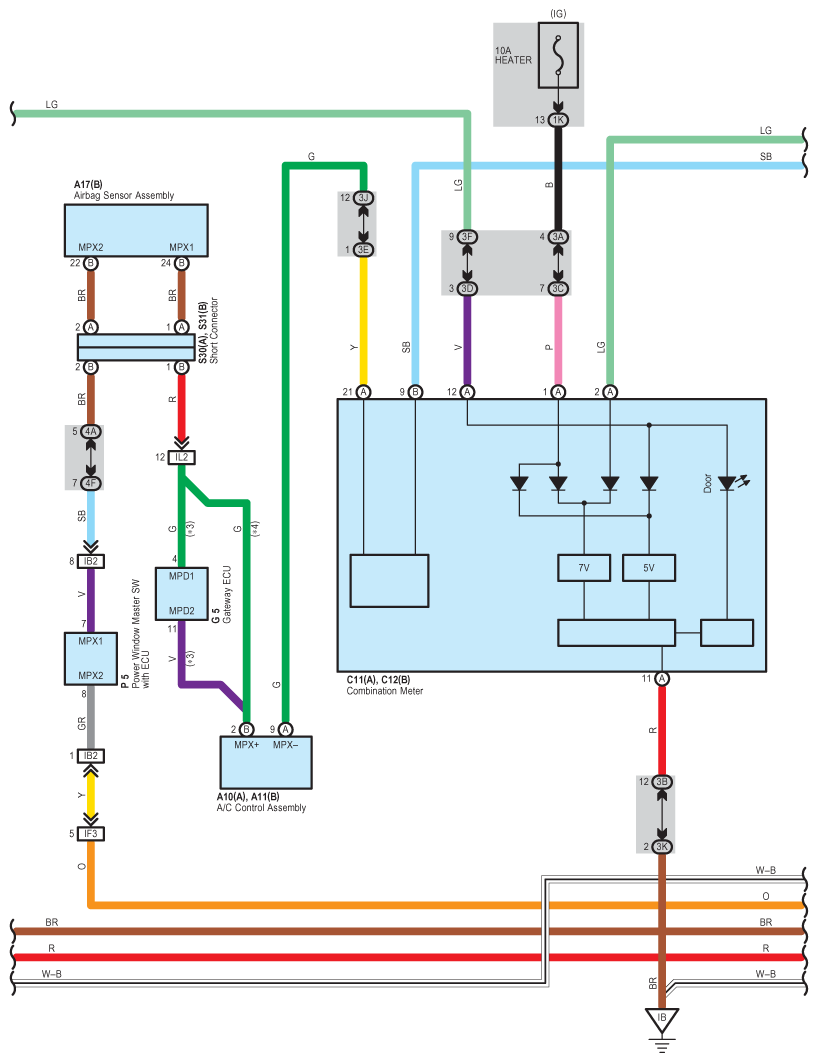

Fig 2: Interior Light System Wiring Diagram (2 Of 3)
G08860913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

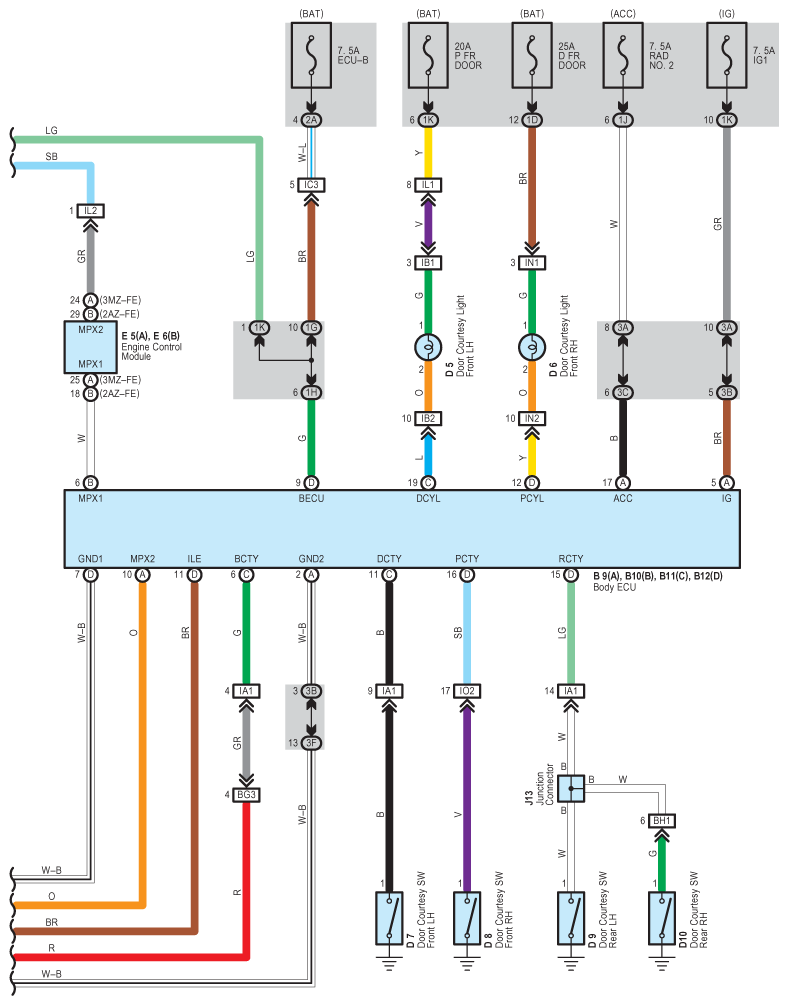

Fig 3: Interior Light System Wiring Diagram (3 Of 3)
G08860914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
