Manual Air Conditioning: Notes

Fig 1: Manual Air Conditioning System Wiring Diagram (1 Of 4)
G08861002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

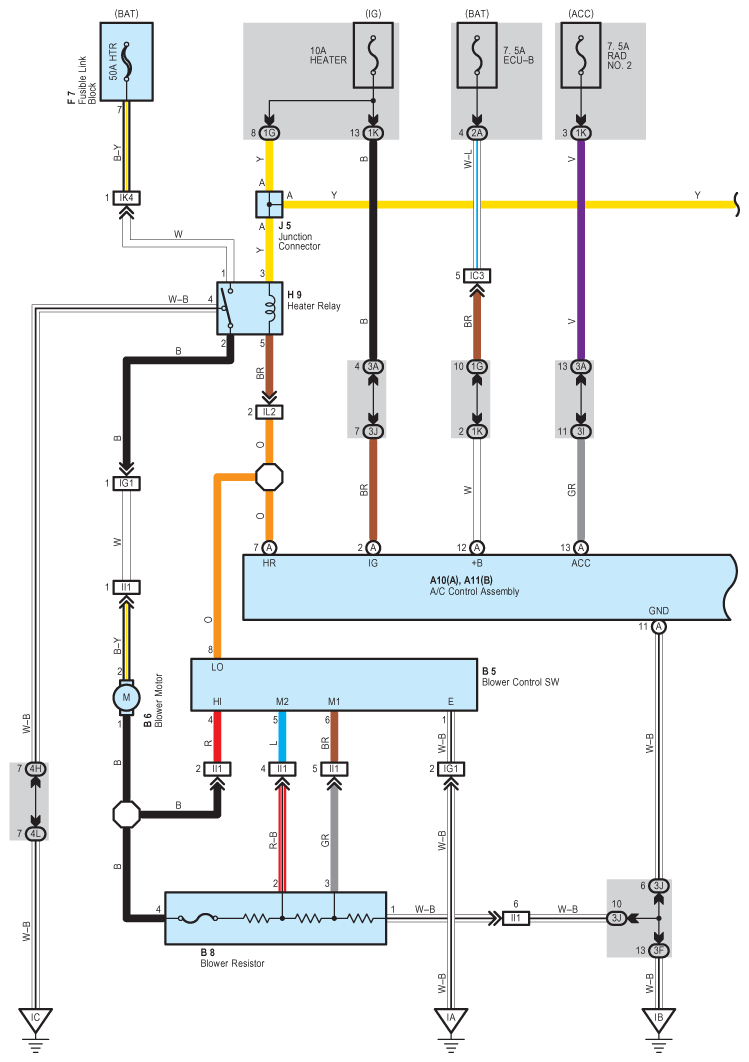

Fig 2: Manual Air Conditioning System Wiring Diagram (2 Of 4)
G08861003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

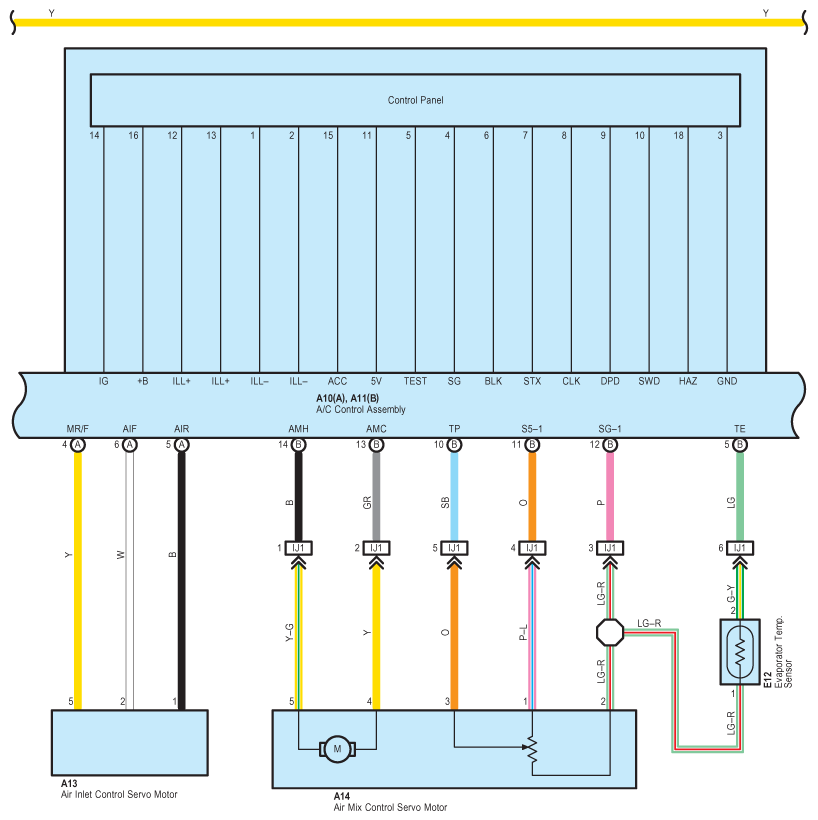

Fig 3: Manual Air Conditioning System Wiring Diagram (3 Of 4)
G08861004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

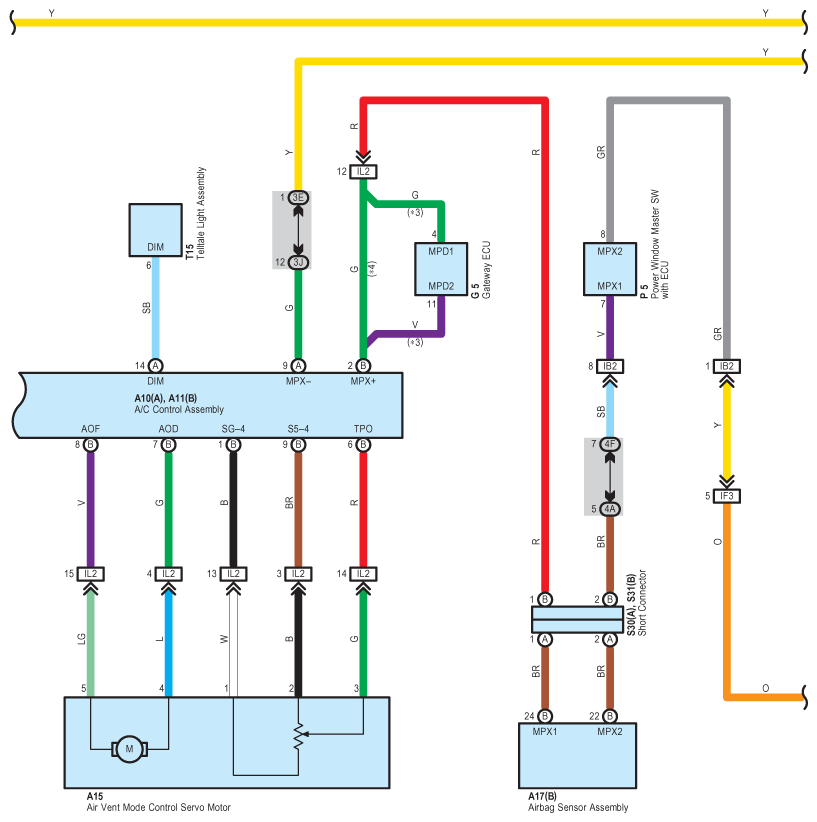

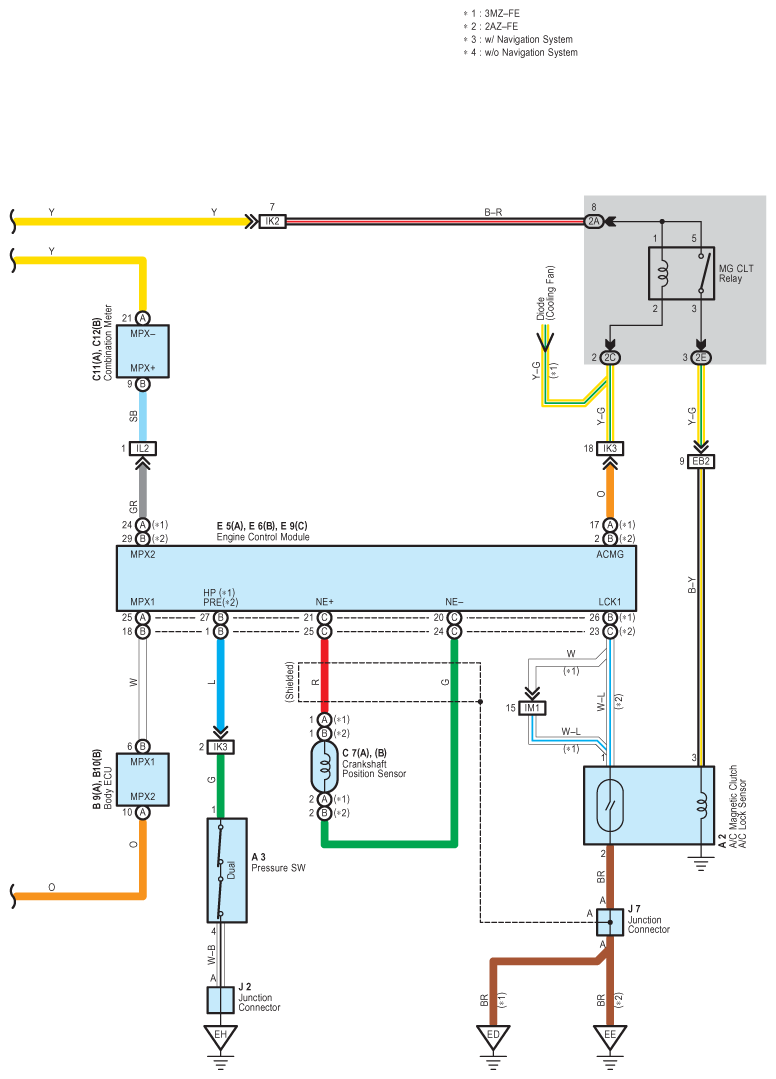

Fig 4: Manual Air Conditioning System Wiring Diagram (4 Of 4)
G08861005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
