Navigation System: Notes

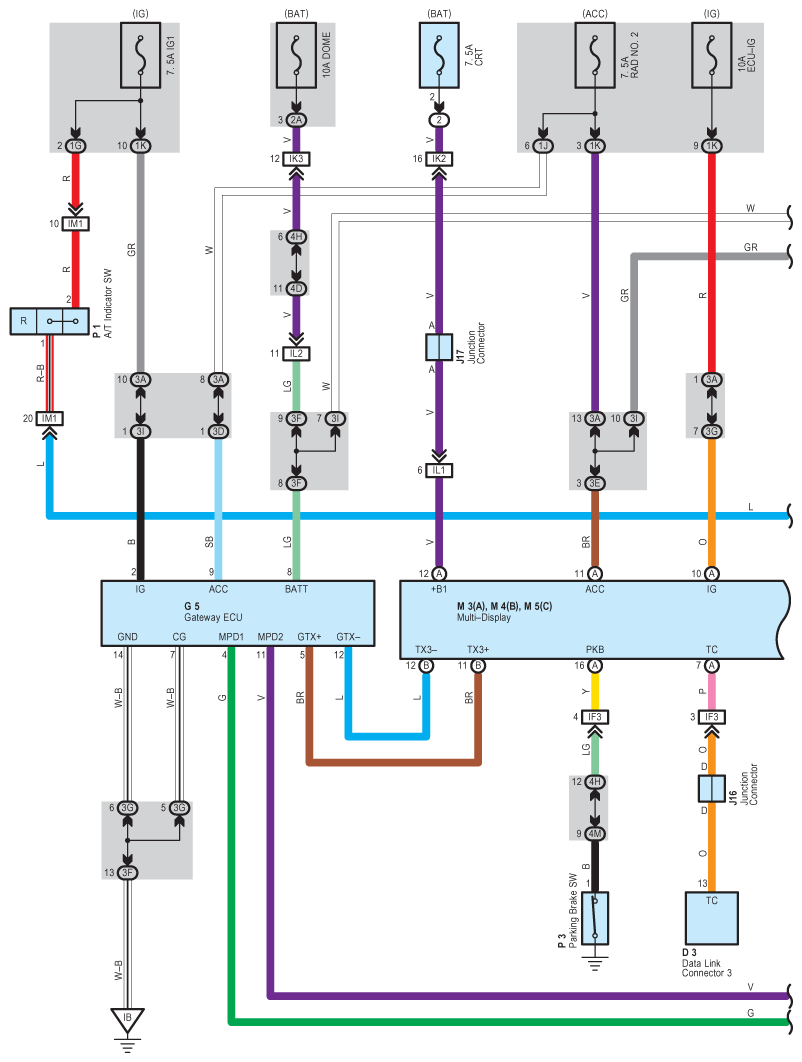

Fig 1: Navigation System Wiring Diagram (1 Of 4)
G08860977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

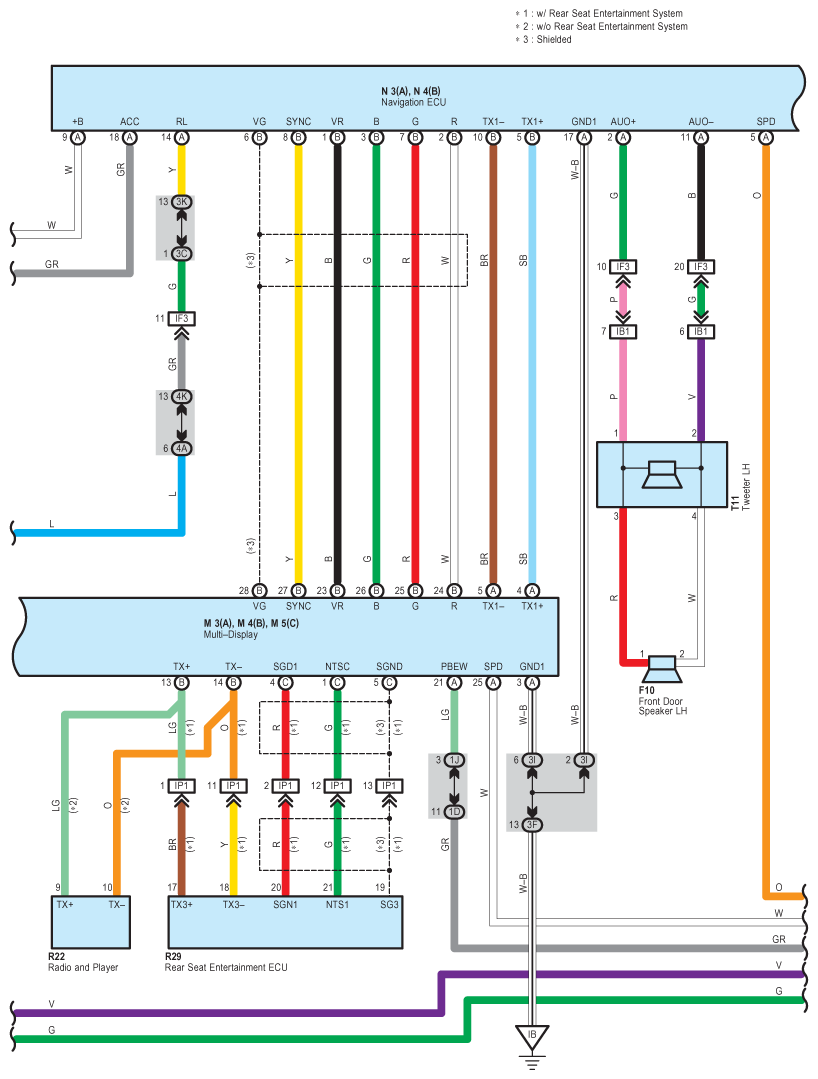

Fig 2: Navigation System Wiring Diagram (2 Of 4)
G08860978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

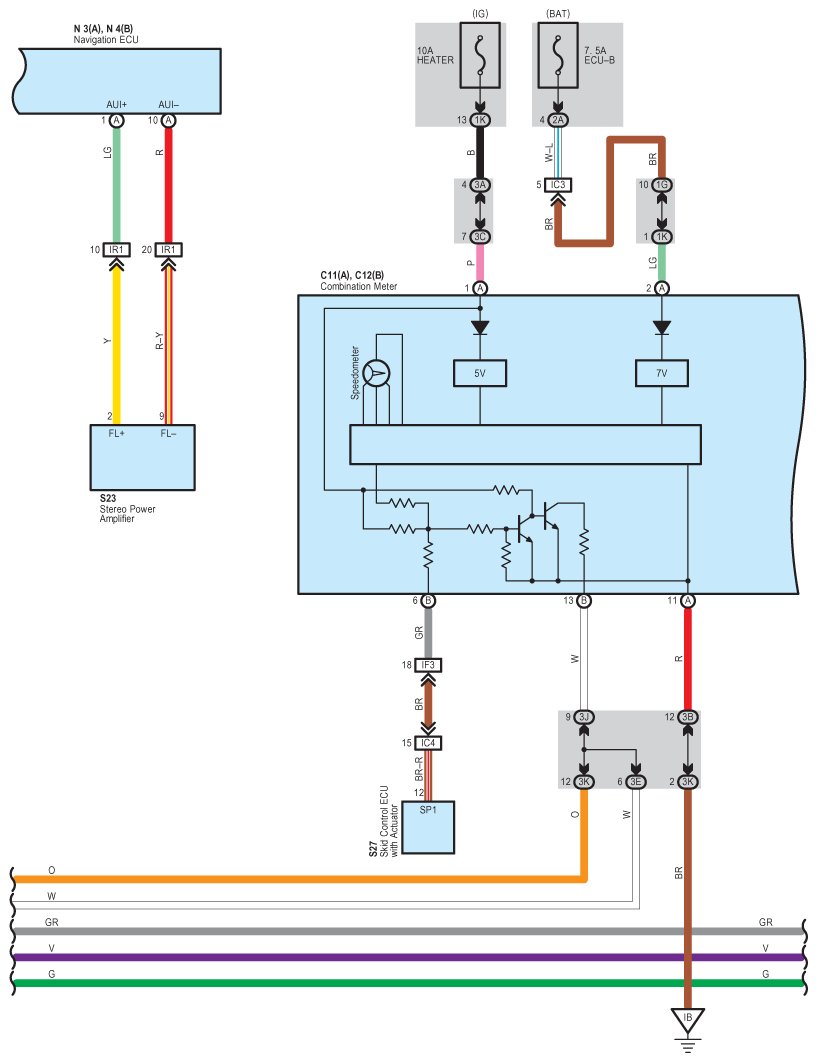

Fig 3: Navigation System Wiring Diagram (3 Of 4)
G08860979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

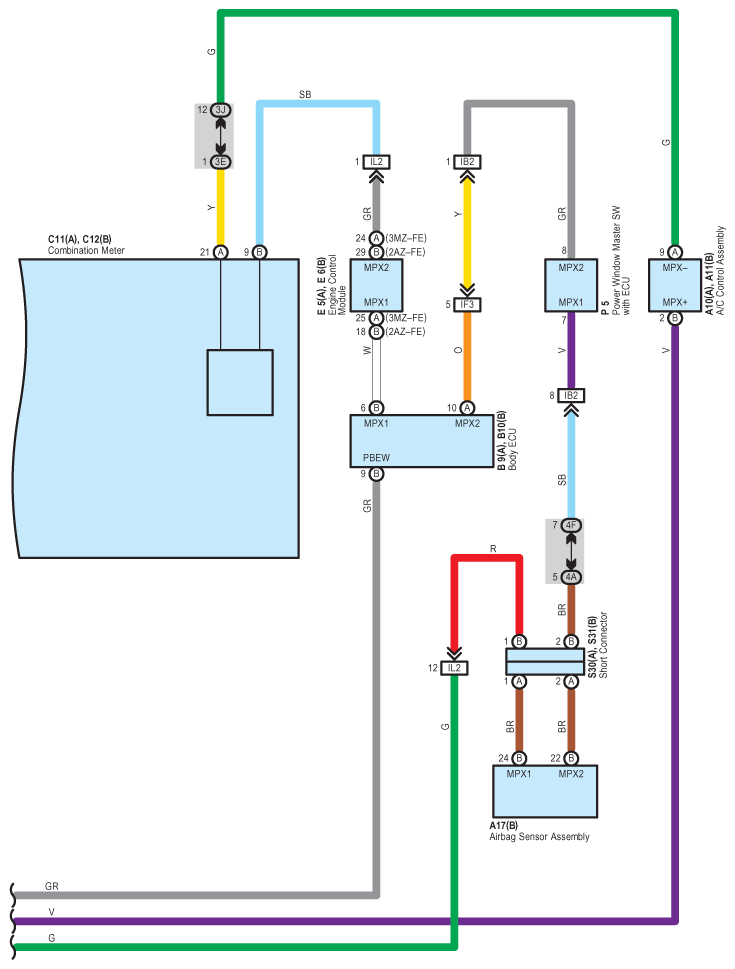

Fig 4: Navigation System Wiring Diagram (4 Of 4)
G08860980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
