Power Window Control System
>>
Rear Jam Protection Limit/Pulse Switch RH Circuit
>>
Wiring Diagram
Rear Jam Protection Limit/Pulse Switch RH Circuit: Wiring Diagram

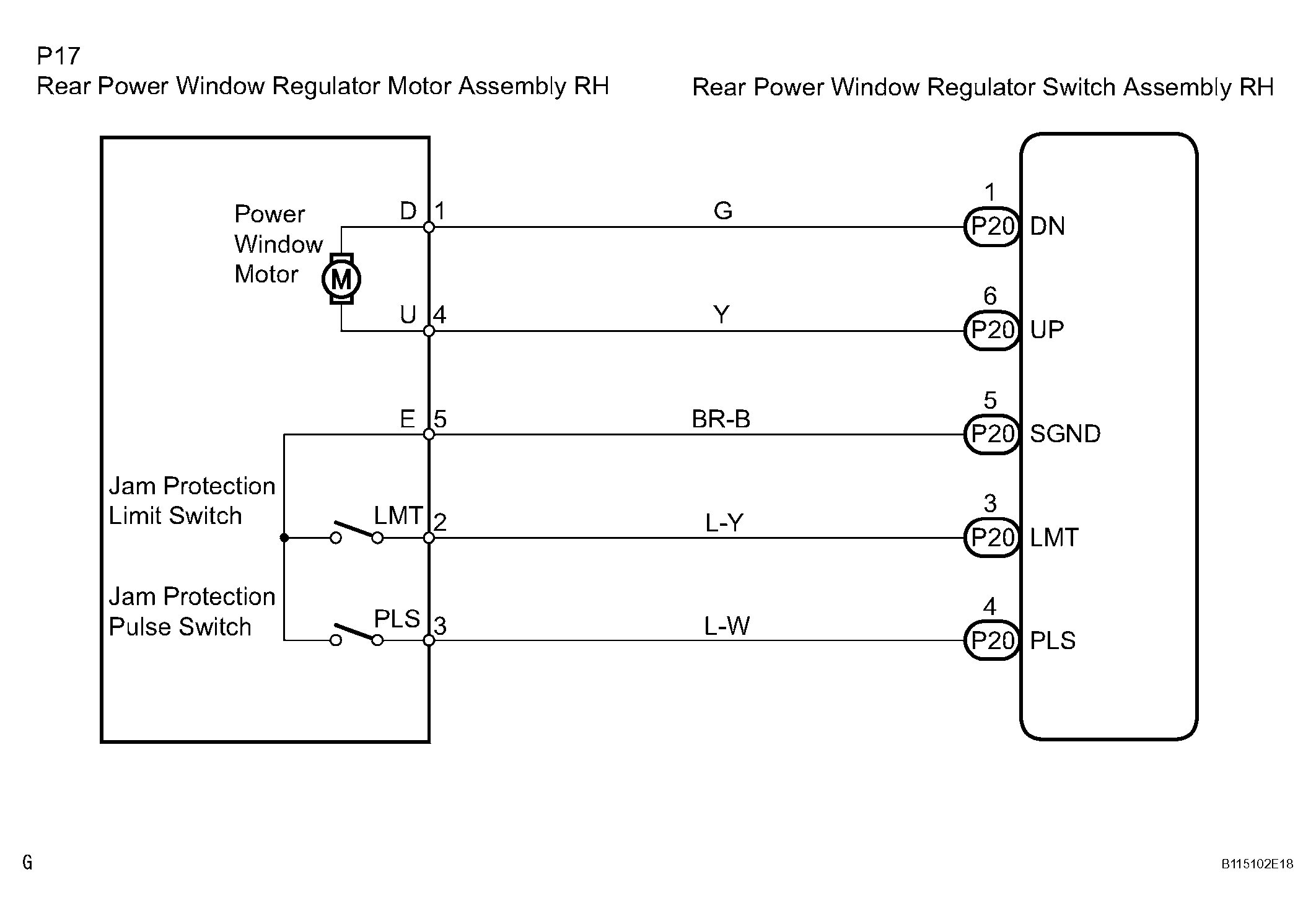

Fig 1: Rear Jam Protection Limit/Pulse Switch RH Circuit Wiring Diagram
