Audio System without Navigation System: Notes

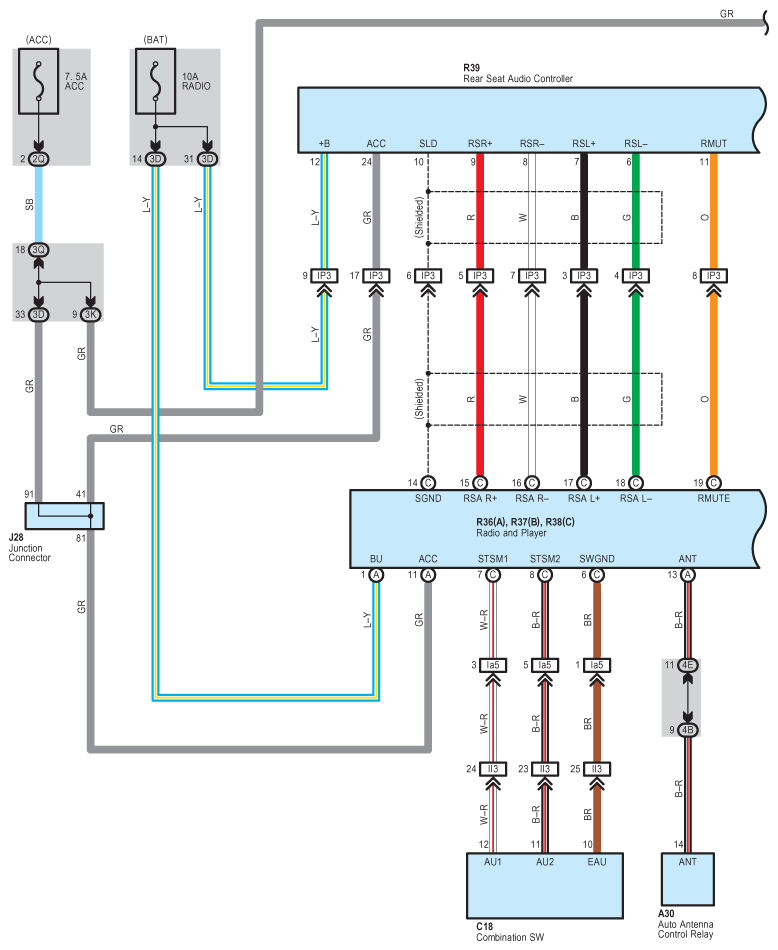

Fig 1: Audio System (Without Navigation System) Wiring Diagram (1 Of 4)
G08783479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

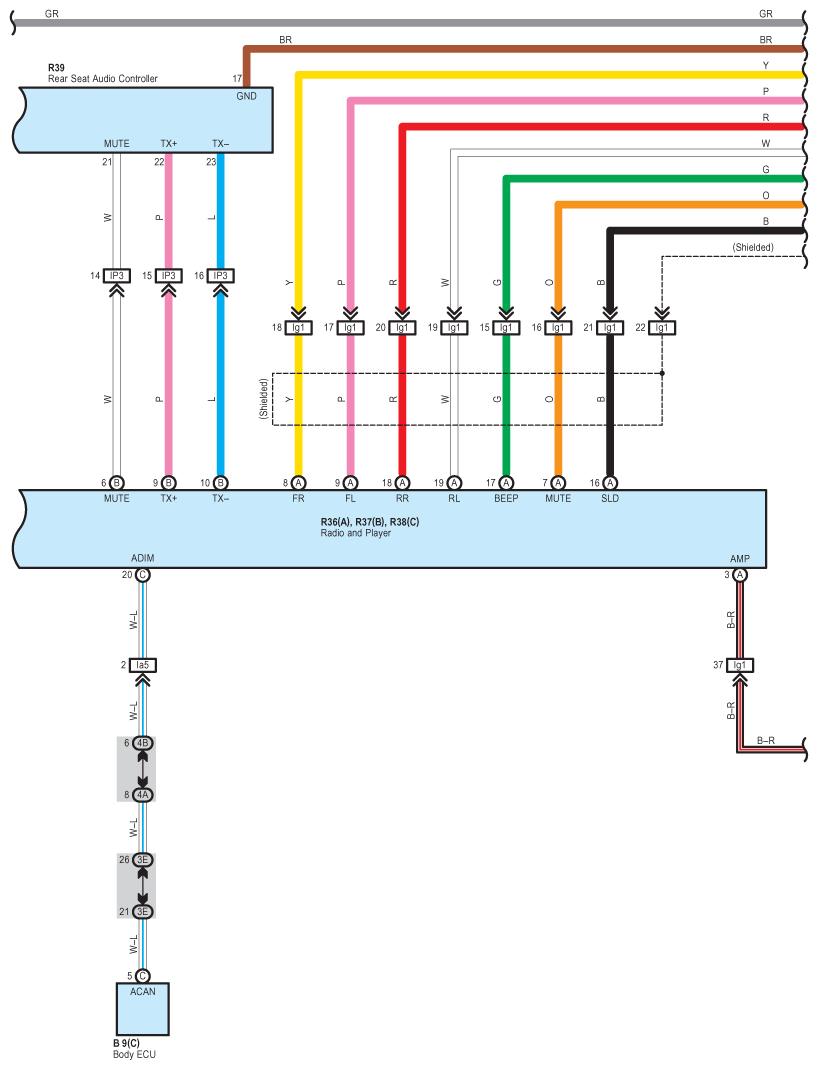

Fig 2: Audio System (Without Navigation System) Wiring Diagram (2 Of 4)
G08783480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

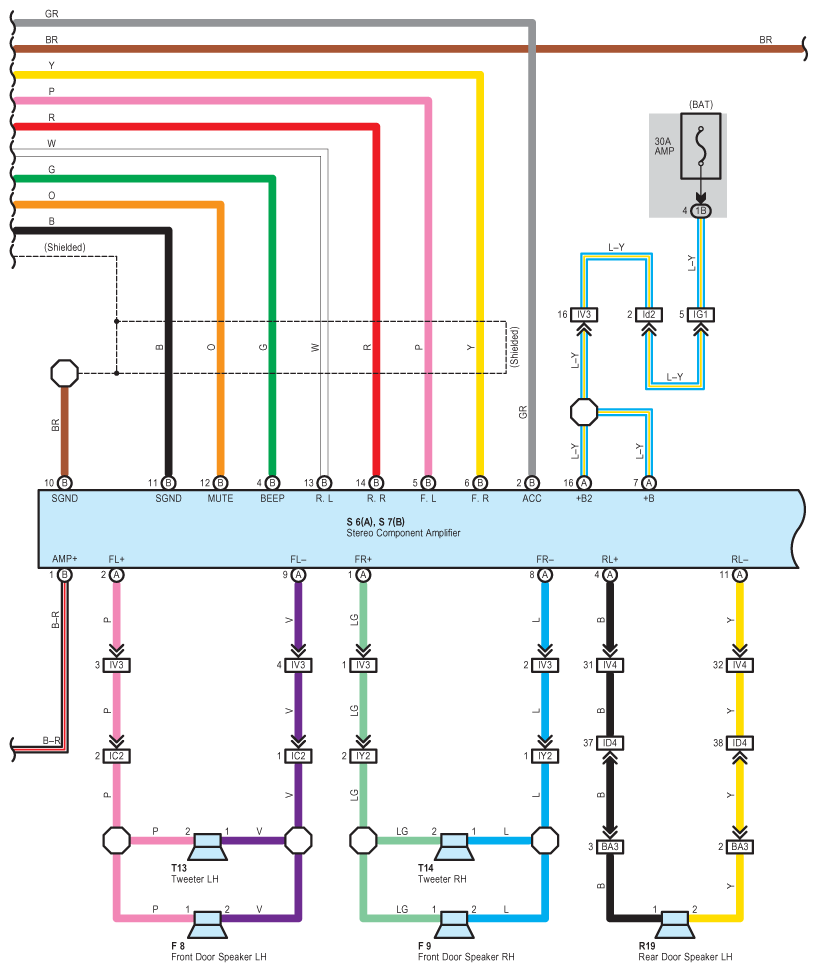

Fig 3: Audio System (Without Navigation System) Wiring Diagram (3 Of 4)
G08783481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

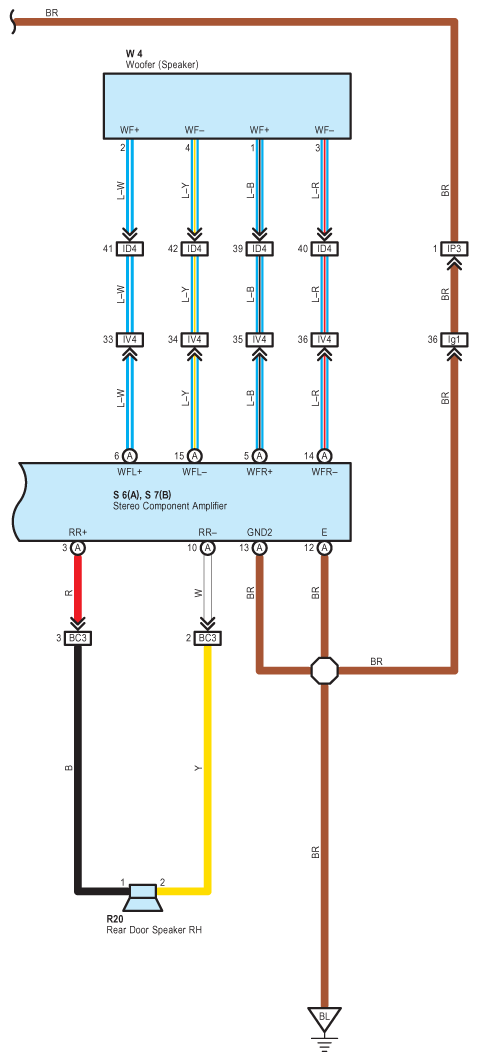

Fig 4: Audio System (Without Navigation System) Wiring Diagram (4 Of 4)
G08783482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
