Engine Immobilizer System: Notes

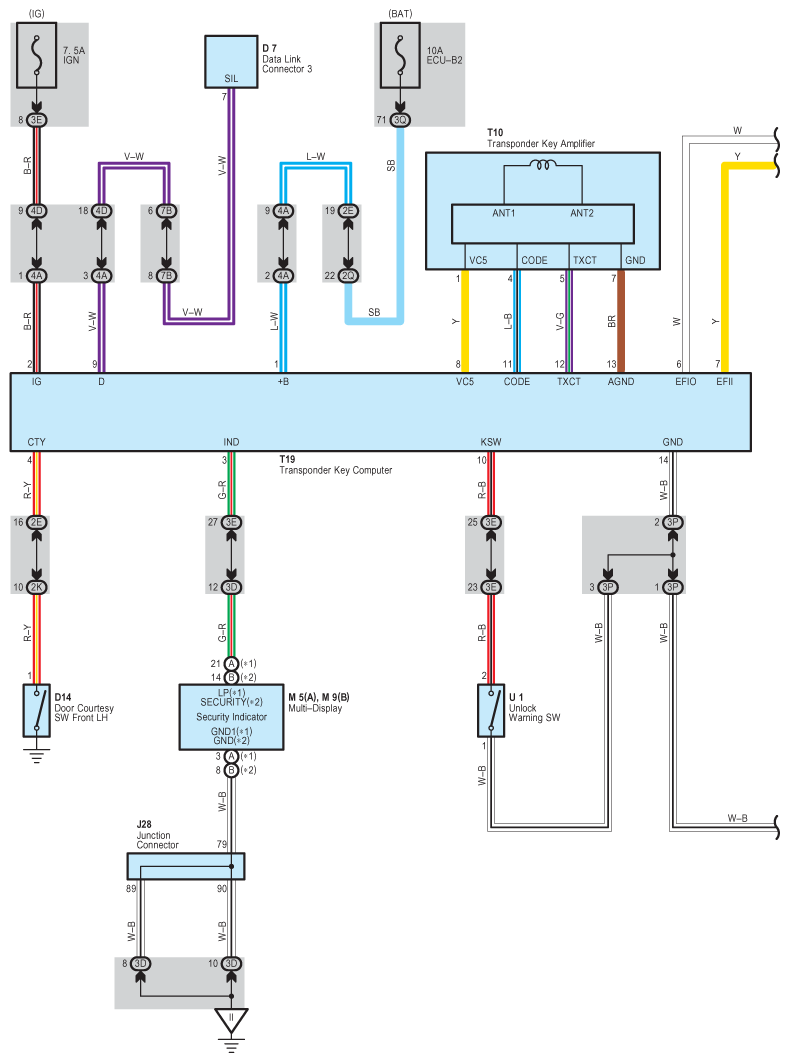

Fig 1: Engine Immobilizer System Wiring Diagram (1 Of 2)
G08783343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

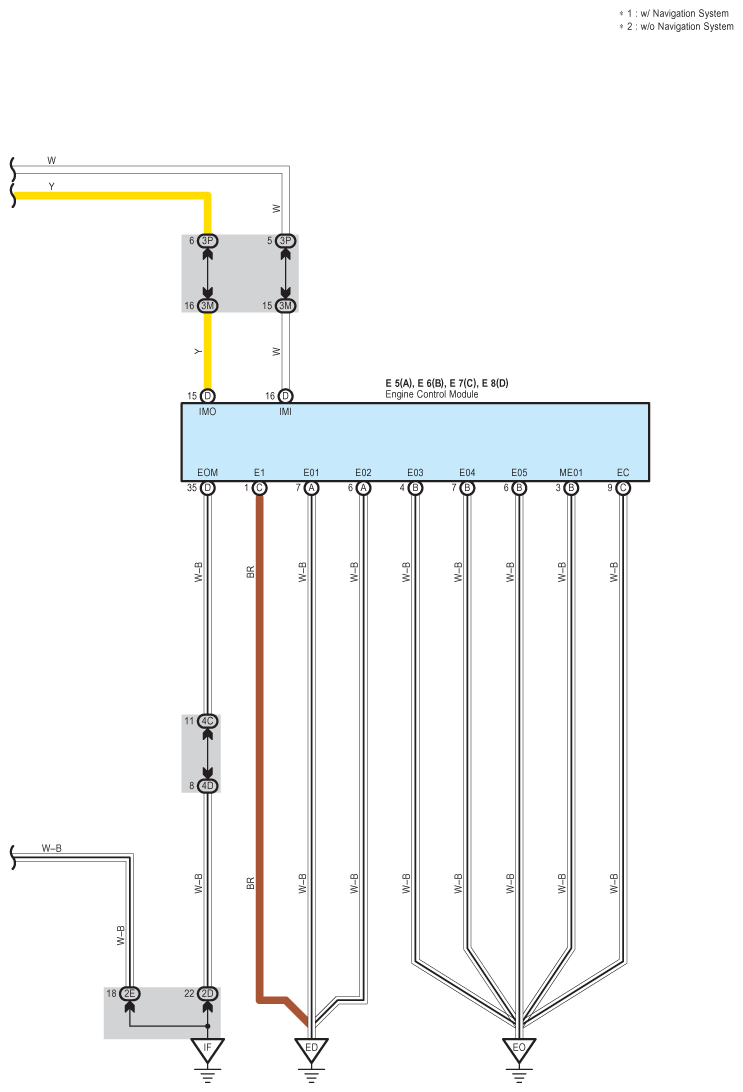

Fig 2: Engine Immobilizer System Wiring Diagram (2 Of 2)
G08783344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
