OEM System Circuits: Illumination: Notes

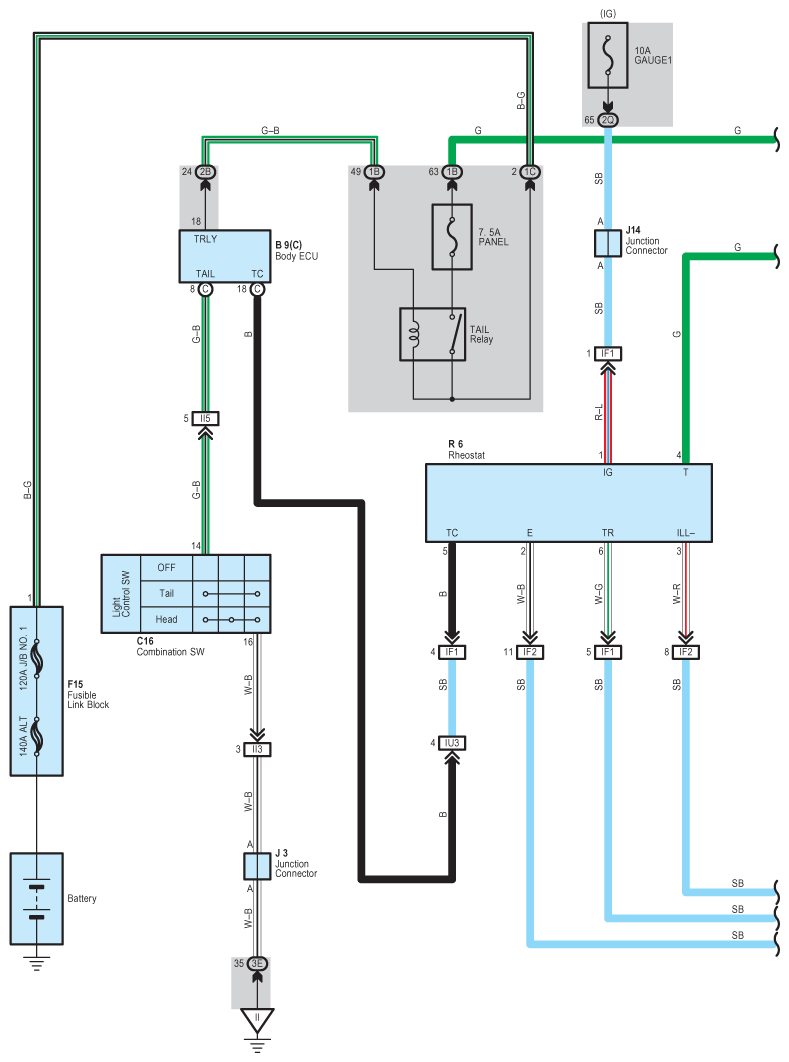

Fig 1: Illumination System Wiring Diagram (1 Of 4)
G08783352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

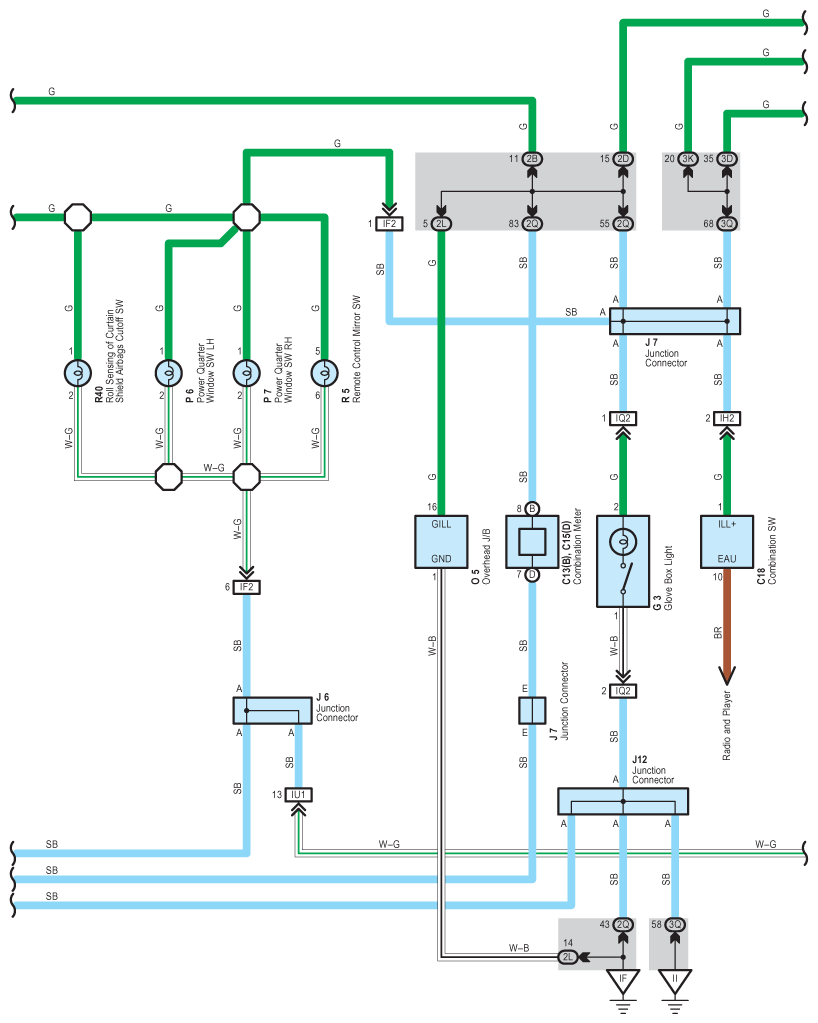

Fig 2: Illumination System Wiring Diagram (2 Of 4)
G08783353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Illumination System Wiring Diagram (3 Of 4)
G08783354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

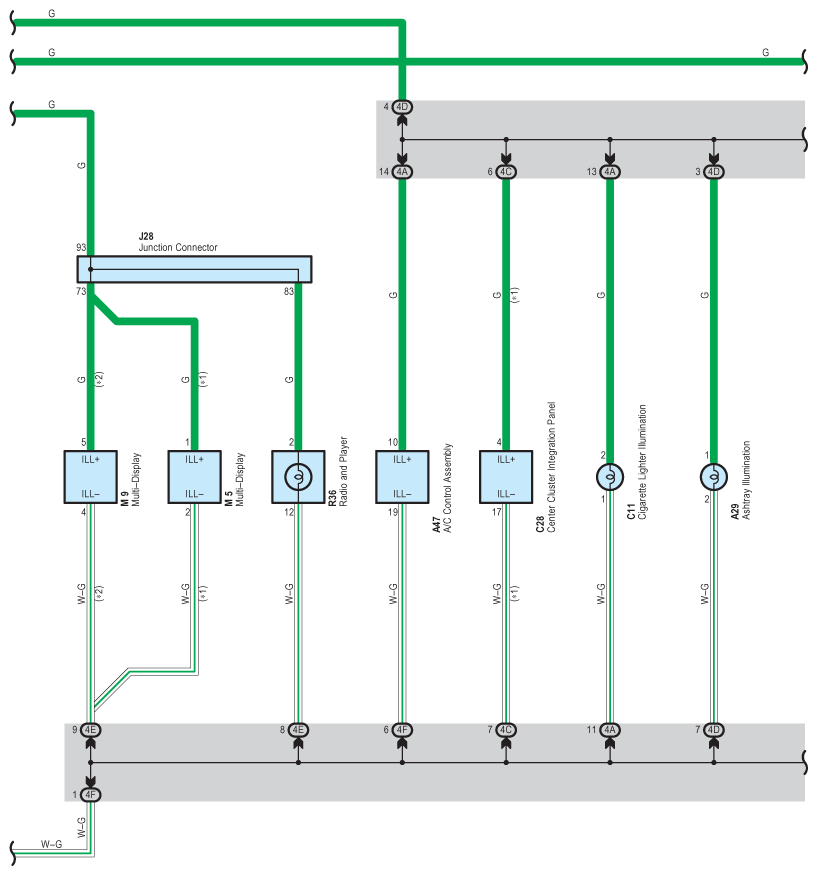

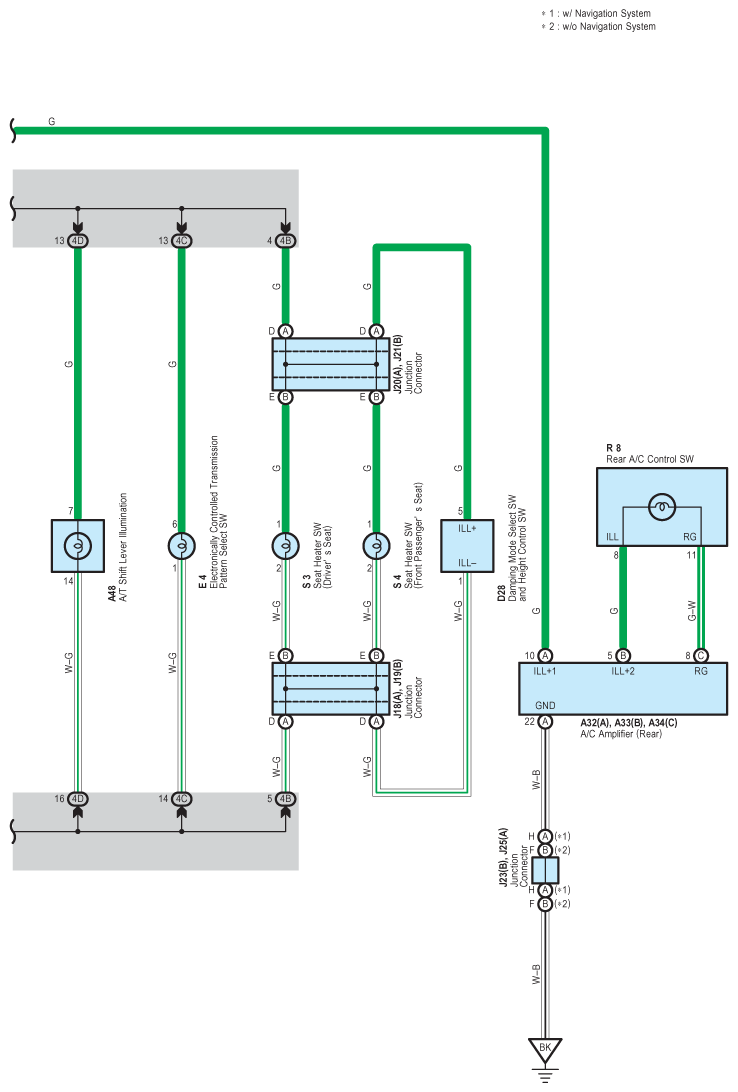

Fig 4: Illumination System Wiring Diagram (4 Of 4)
G08783355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
