Multiplex Communication System - AVC-LAN: Notes

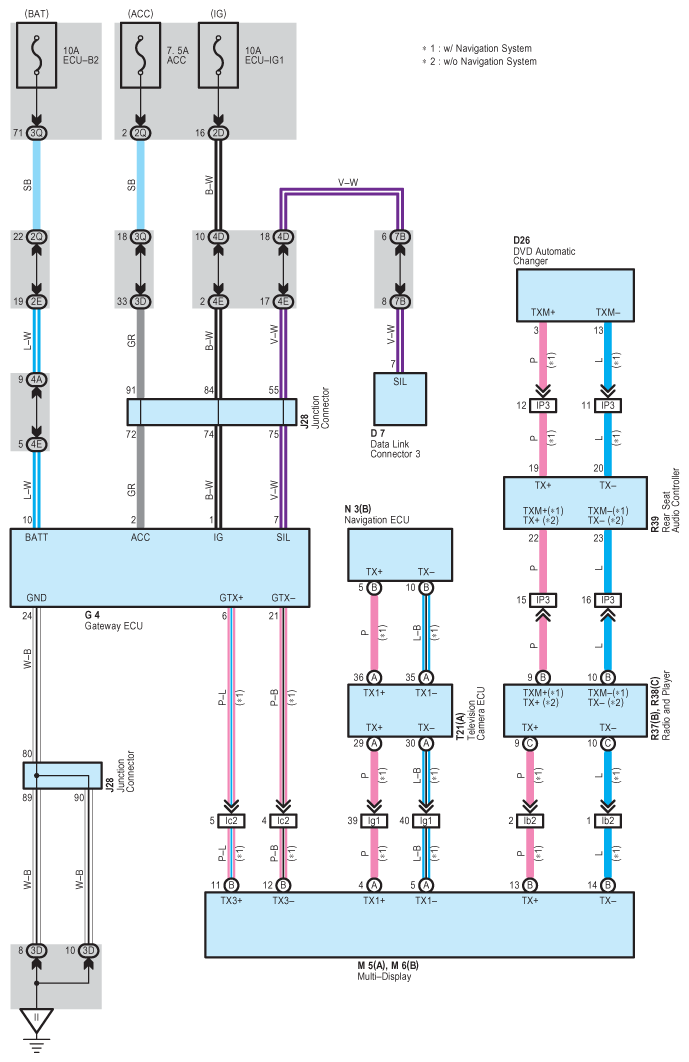

Fig 1: Multiplex Communication System (AVC-LAN) Wiring Diagram

G08783392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
