Multiplex Communication System - CAN: Notes

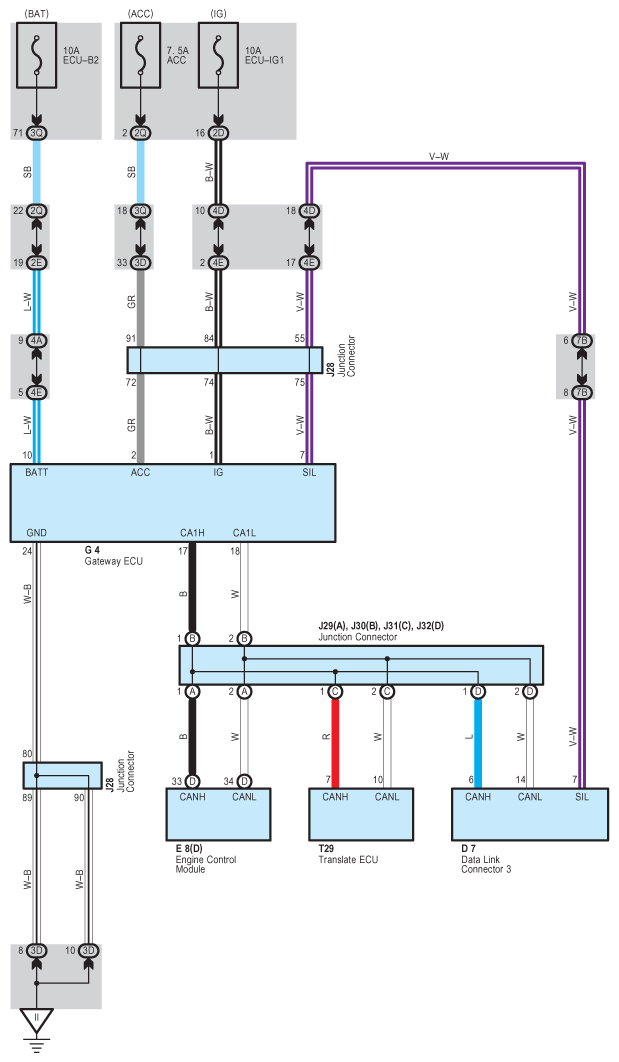

Fig 1: Multiplex Communication System (CAN) Wiring Diagram

G08783391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
