OEM System Circuits: Taillight: Notes

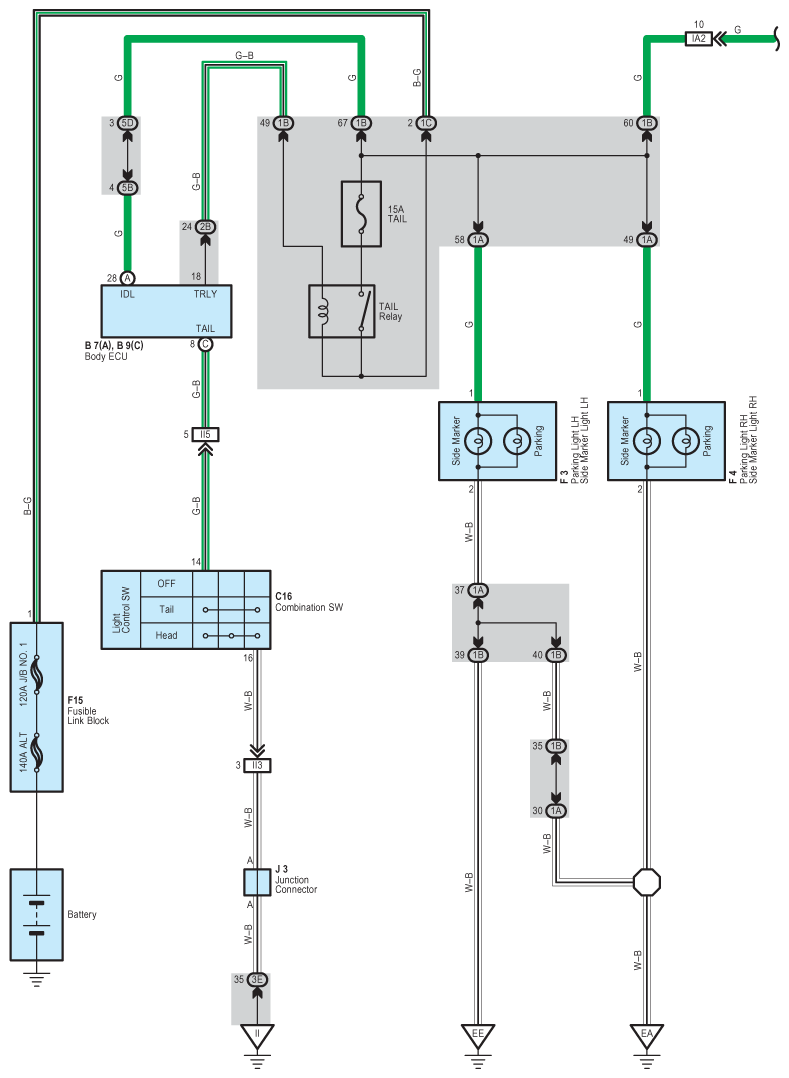

Fig 1: Taillight System Wiring Diagram (1 Of 2)
G08783350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

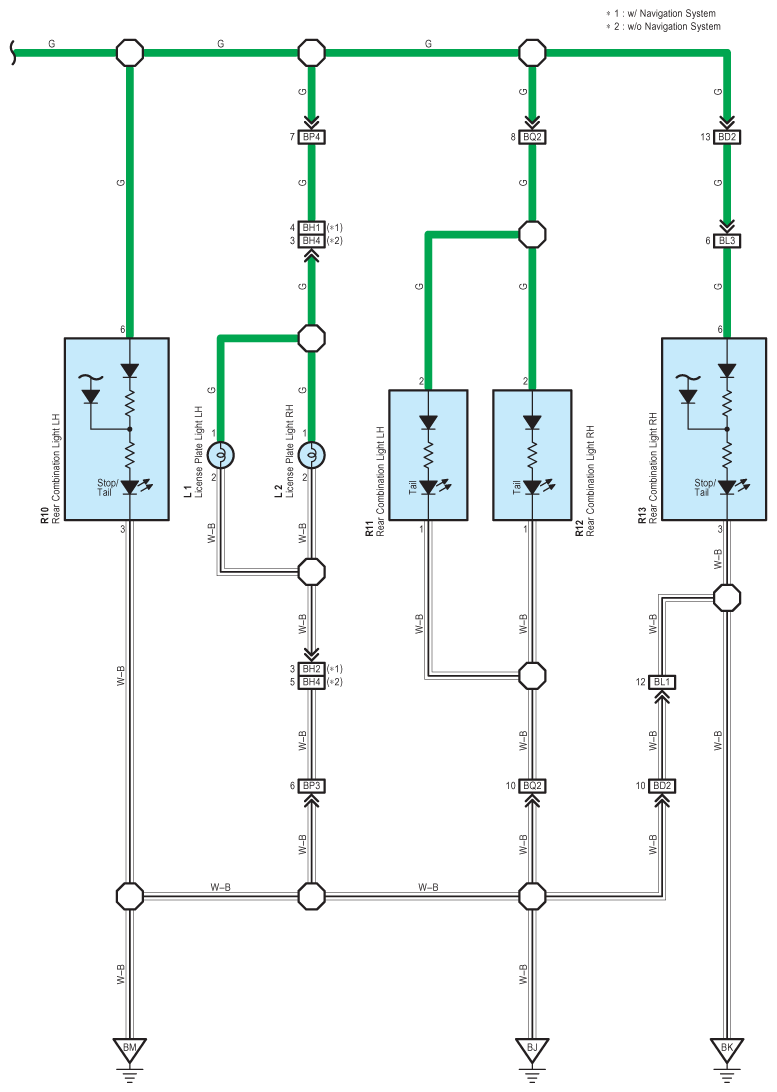

Fig 2: Taillight System Wiring Diagram (2 Of 2)
G08783351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
