Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

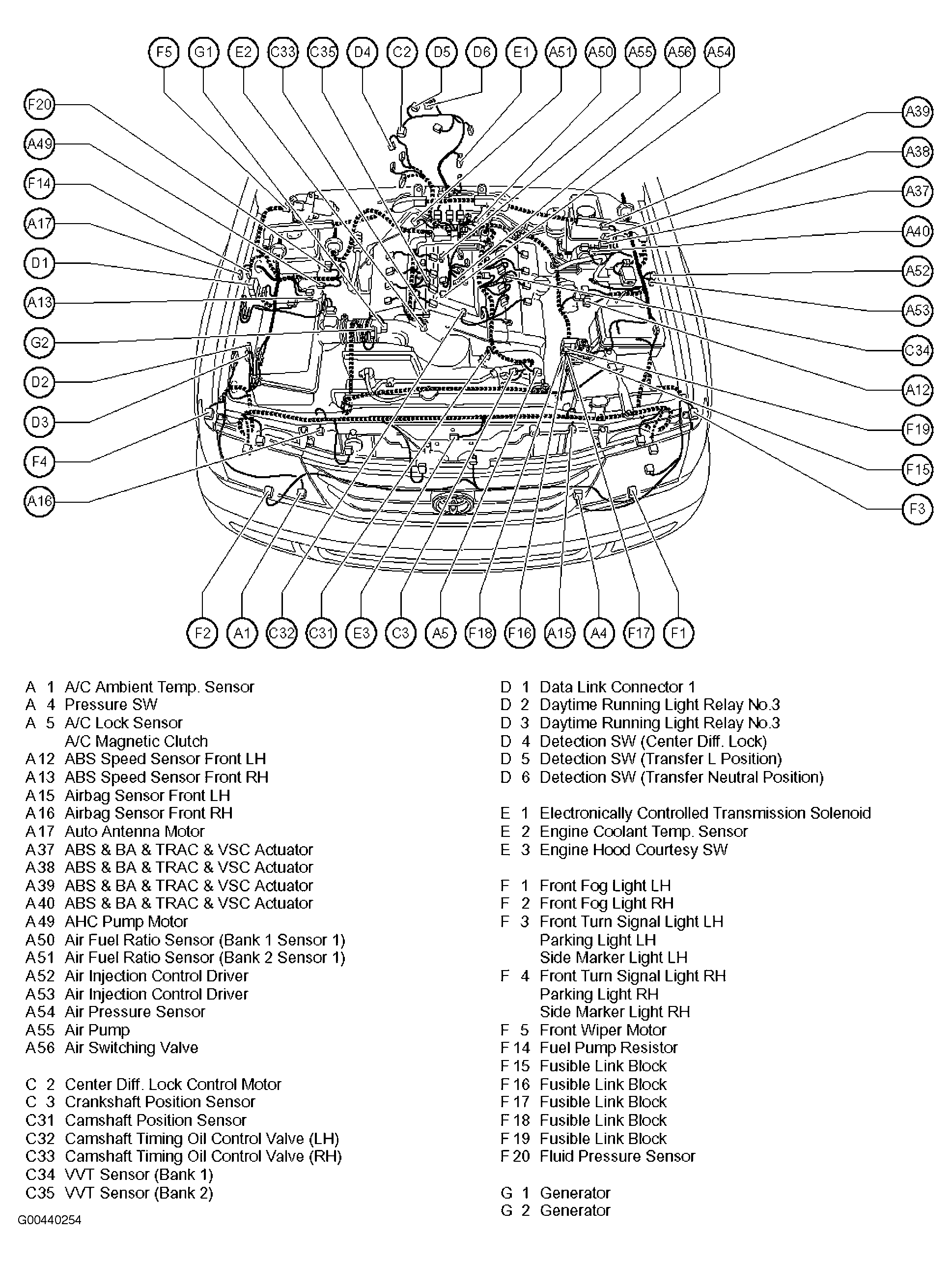

Fig 1: Engine Compartment

G00440254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

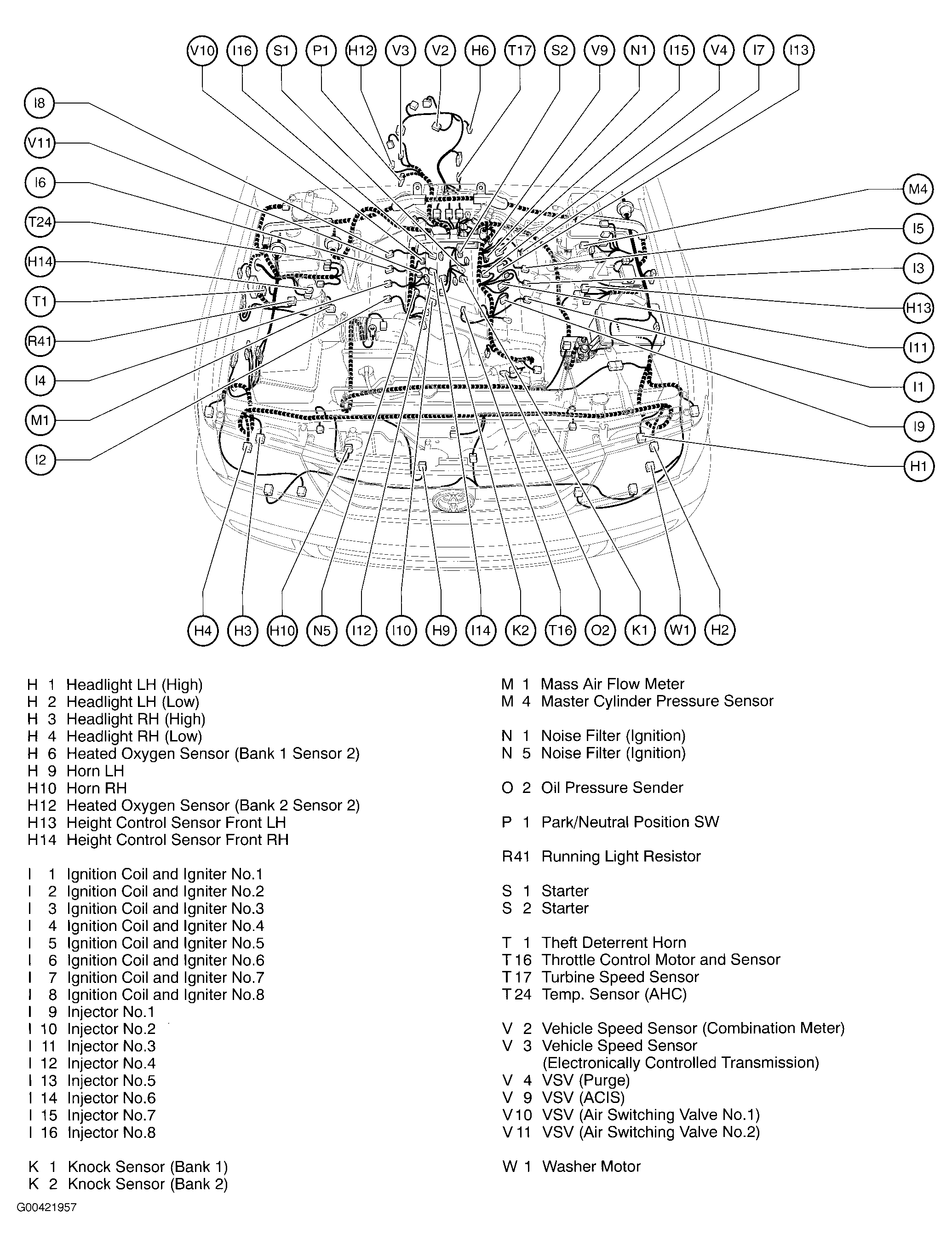

Fig 2: Engine Compartment

G00421957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

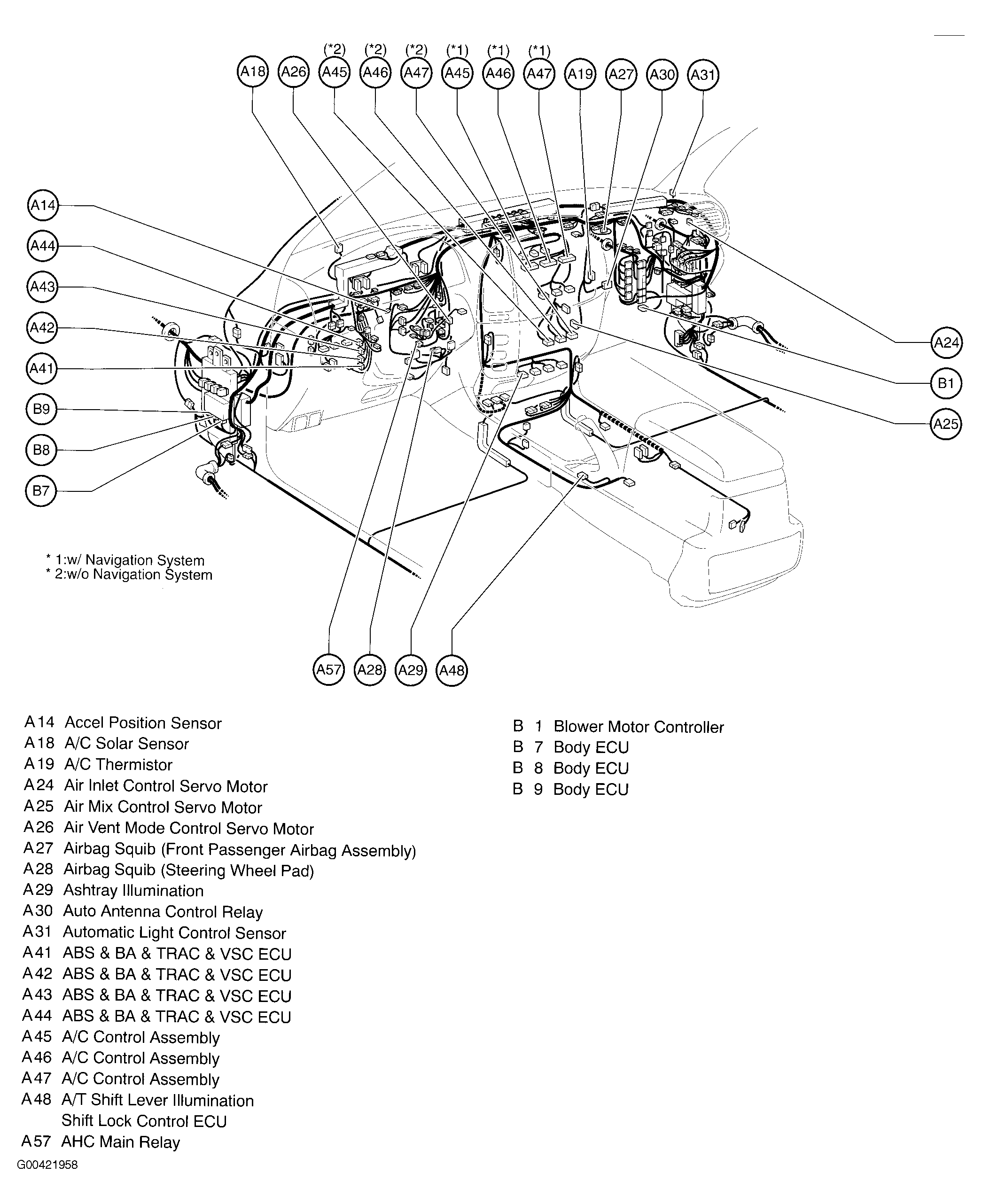

Fig 3: Dash

G00421958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

G00421960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

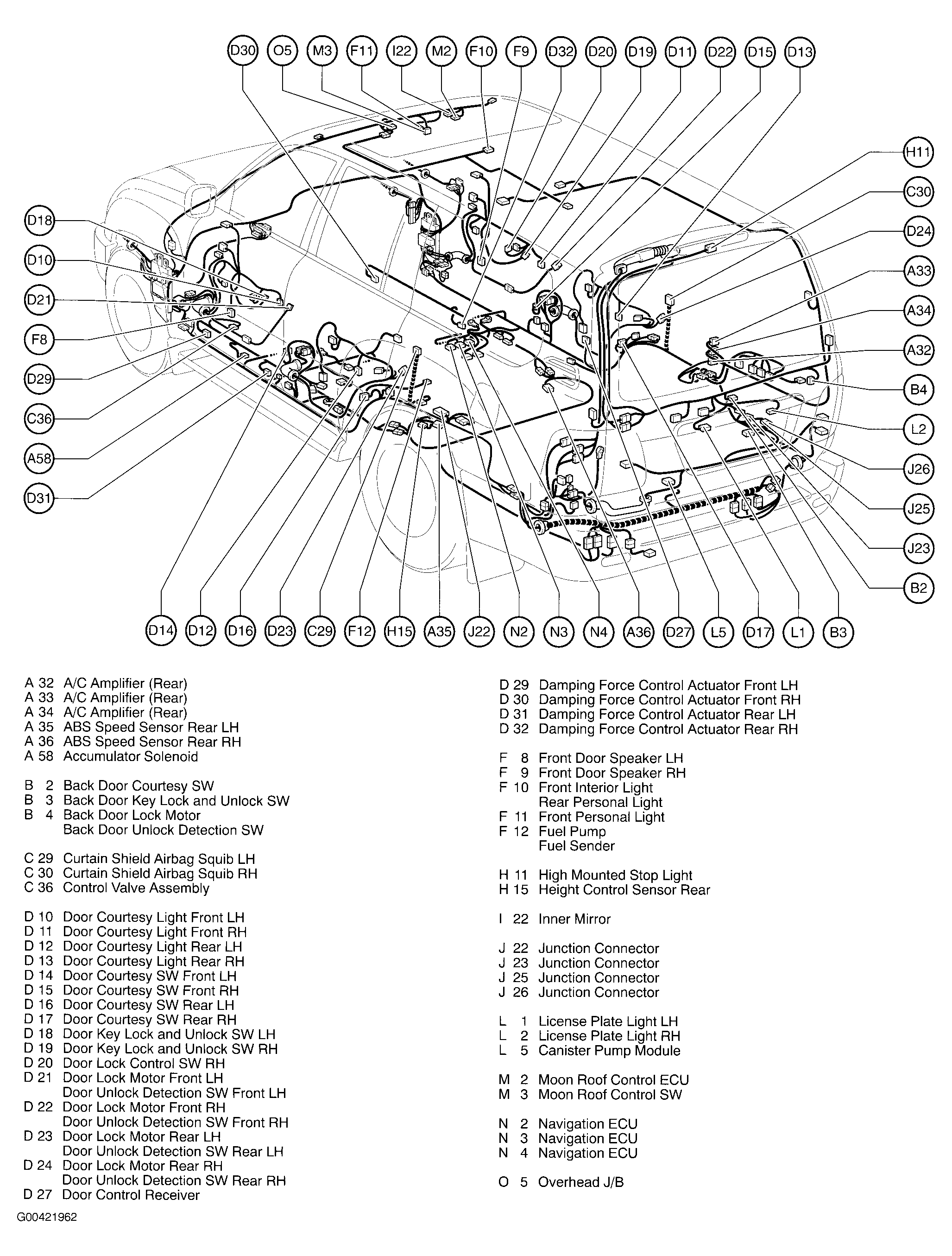

Fig 5: Vehicle Overview

G00421962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

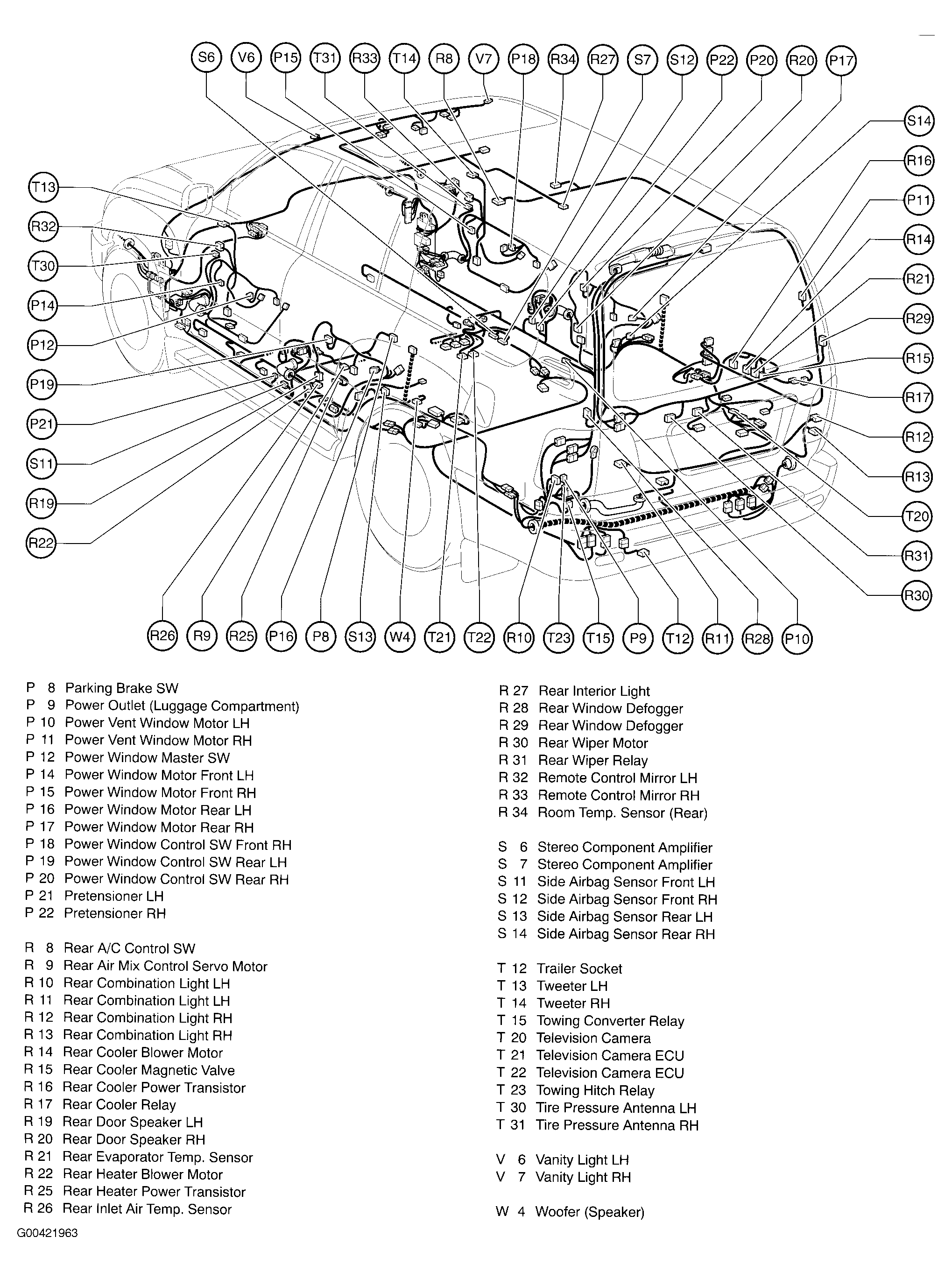

Fig 6: Vehicle Overview

G00421963

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

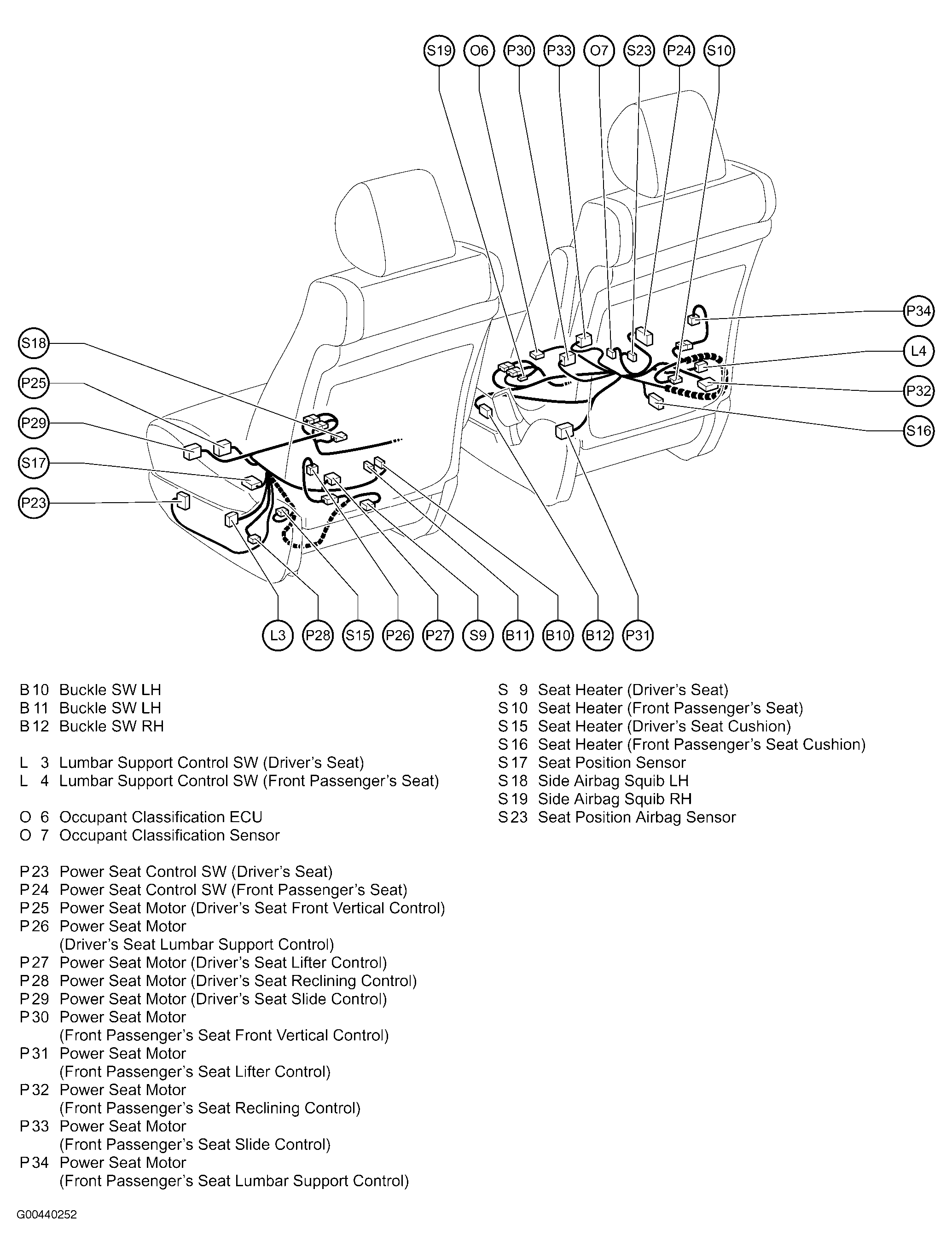

Fig 7: Front Seats

G00440252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

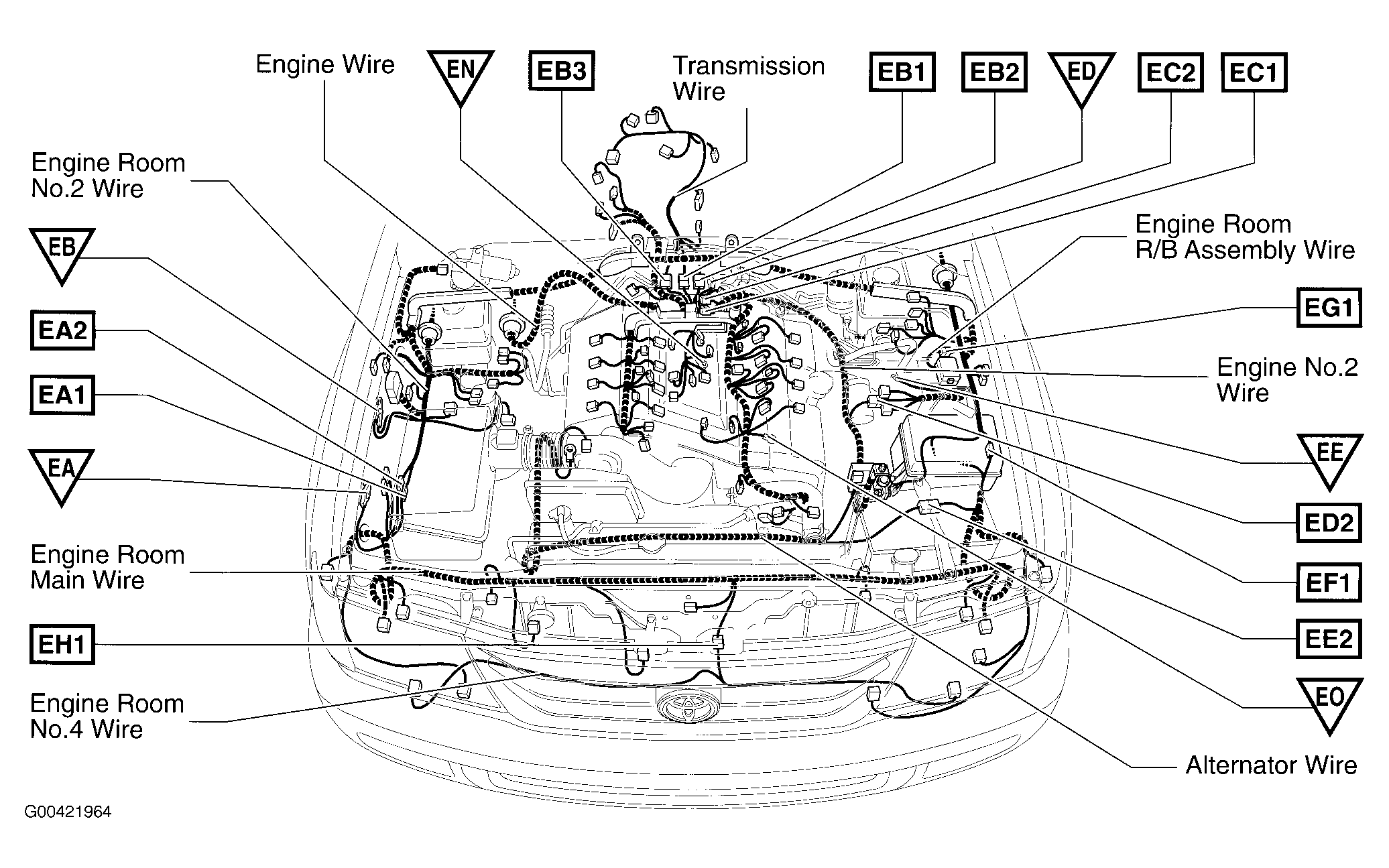

Fig 8: Engine Compartment

G00421964

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dash

G00421965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

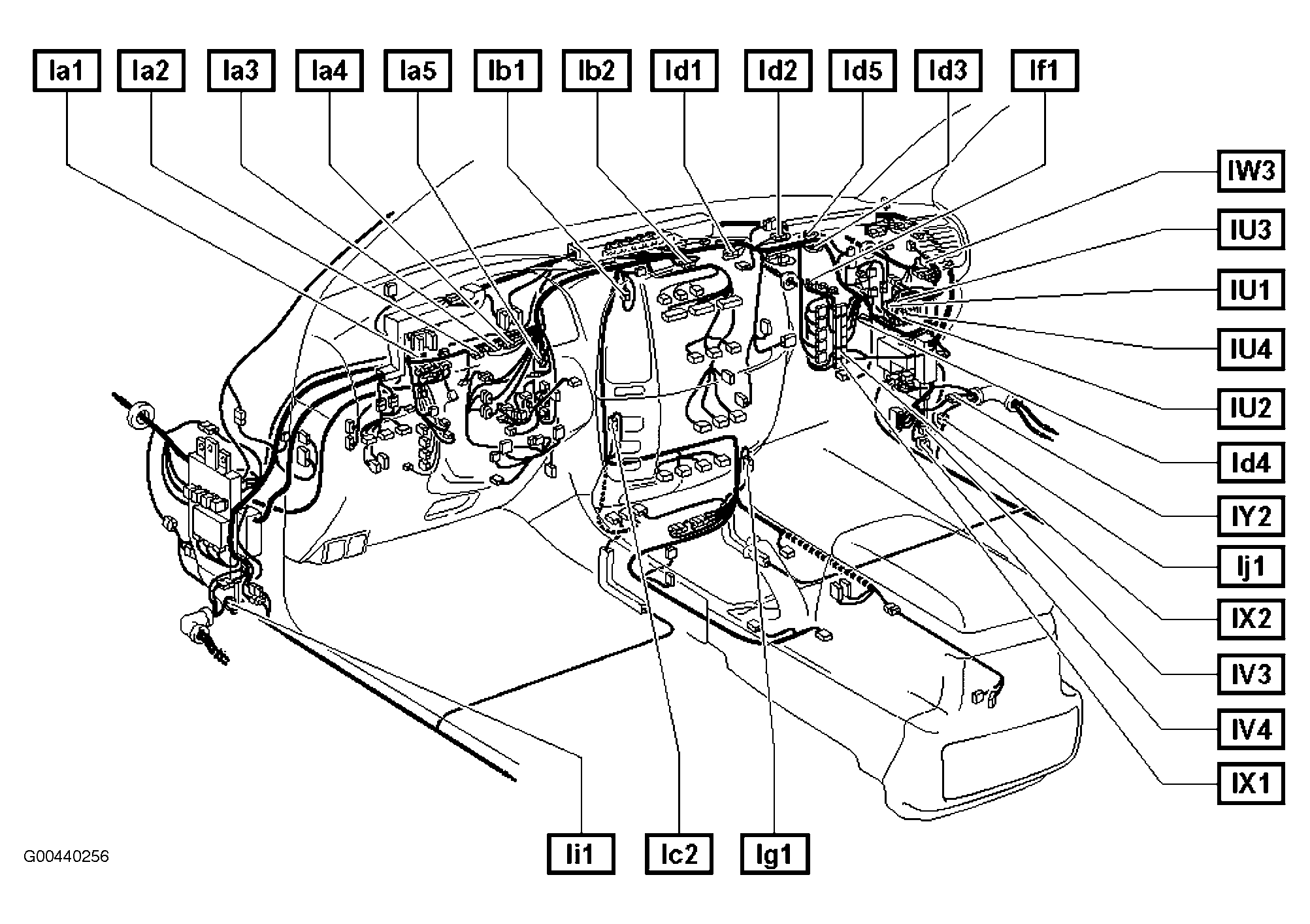

Fig 10: Dash

G00440256

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

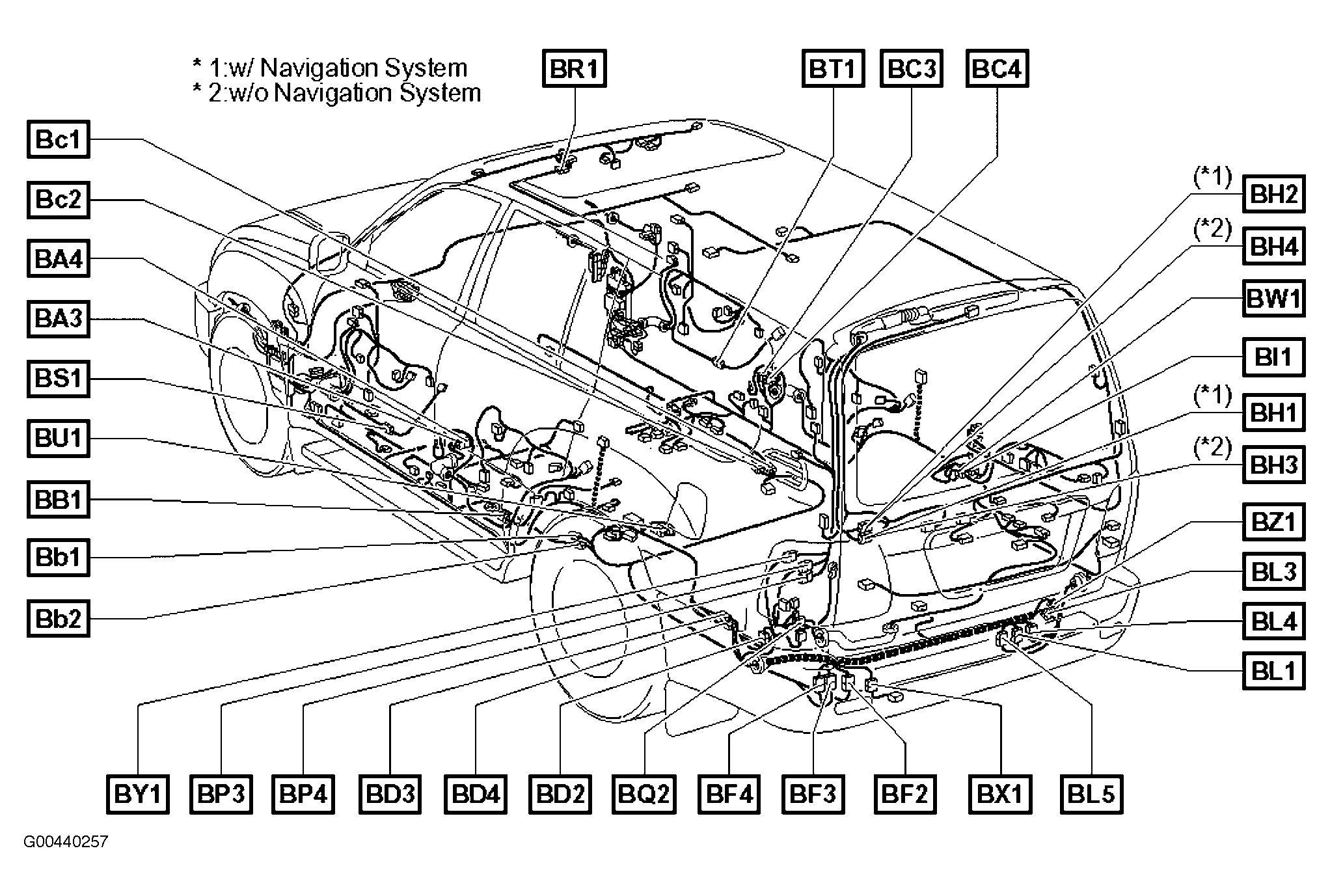

Fig 11: Vehicle Overview

G00440257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

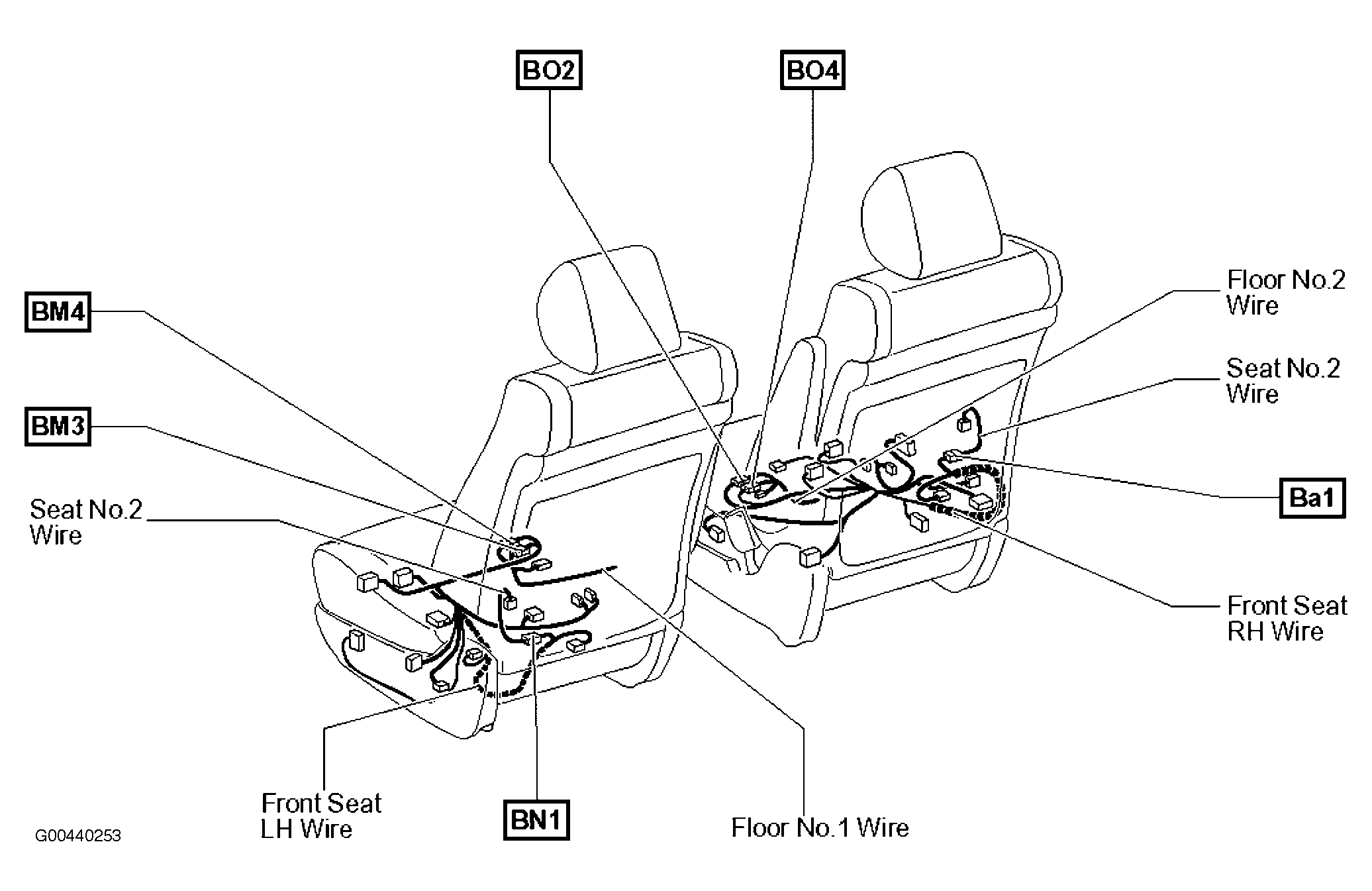

Fig 12: Front Seats

G00440253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

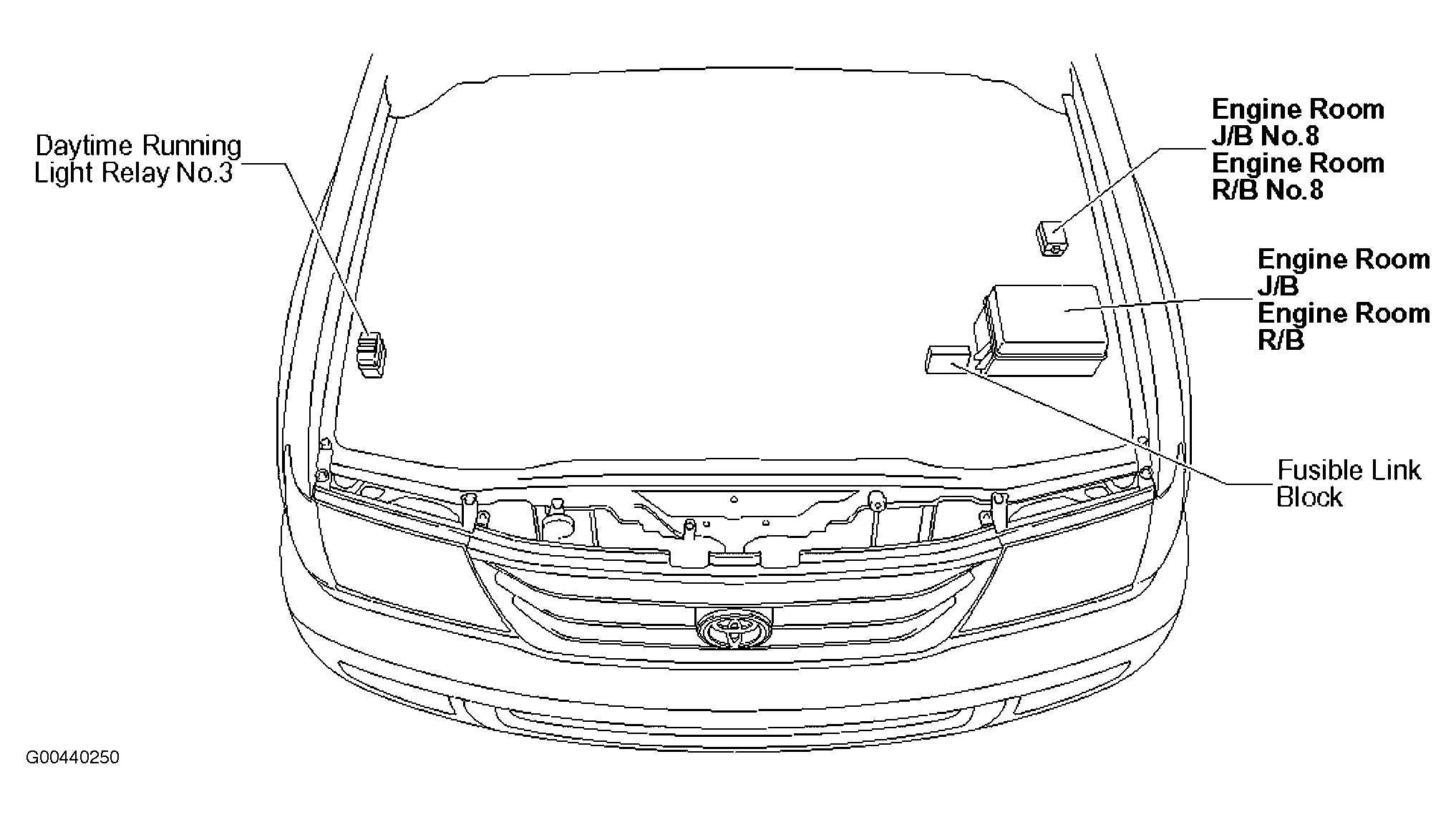

Fig 13: Engine Compartment

G00440250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

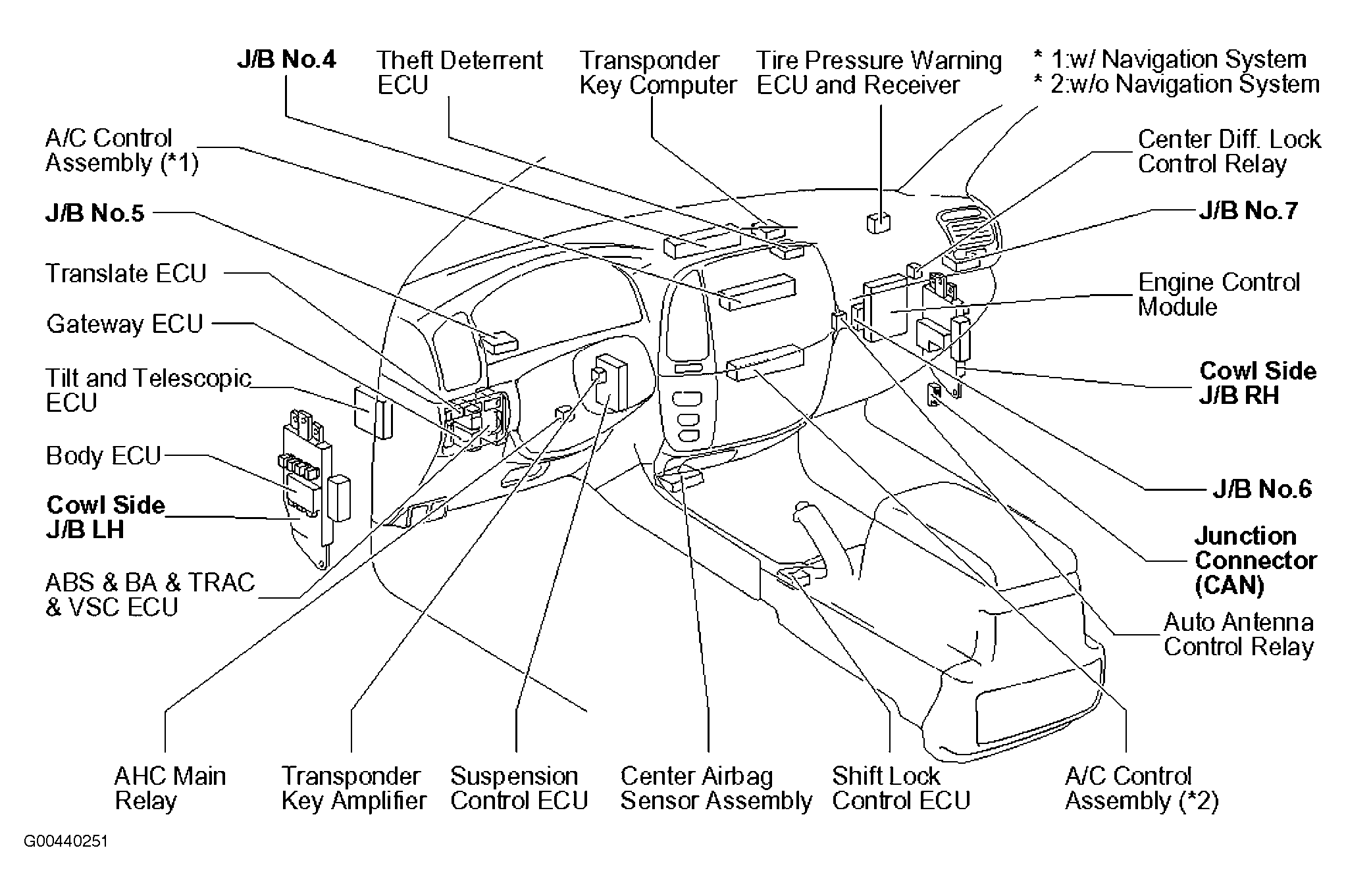

Fig 14: Dash

G00440251

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

G00262546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR VEHICLE RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Cooler Relay
Rear Wiper Relay
Towing Hitch Relay
Towing Converter Relay

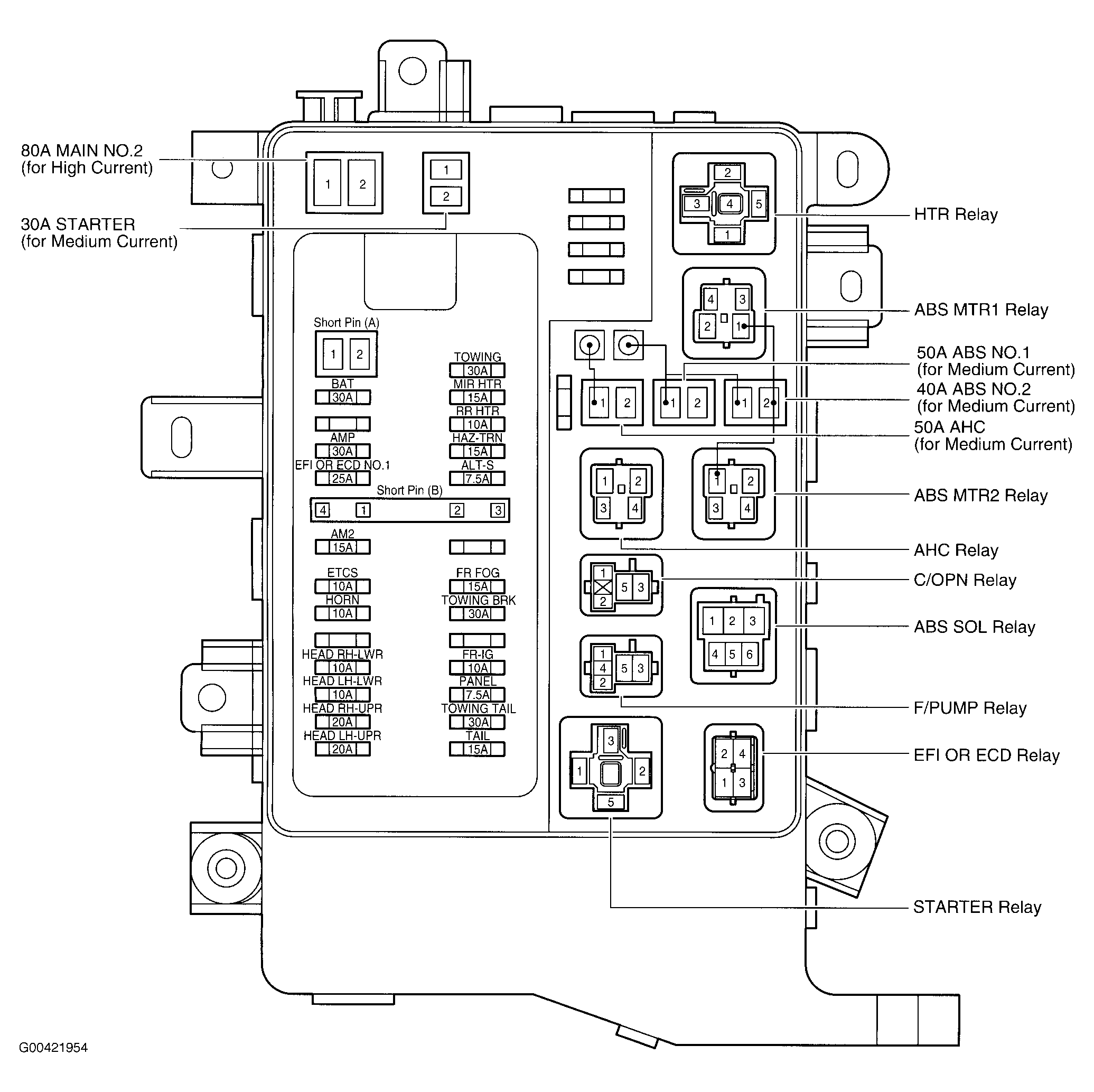

Fig 16: Engine Room J/B

G00421954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Room J/B (Inner Circuit)

G00262548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Cowl Side J/B LH

G00262551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Cowl Side J/B LH

G00262552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Right Kick Panel

G00262556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Cowl Side J/B RH

G00262557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Vehicle Overview

G00262577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

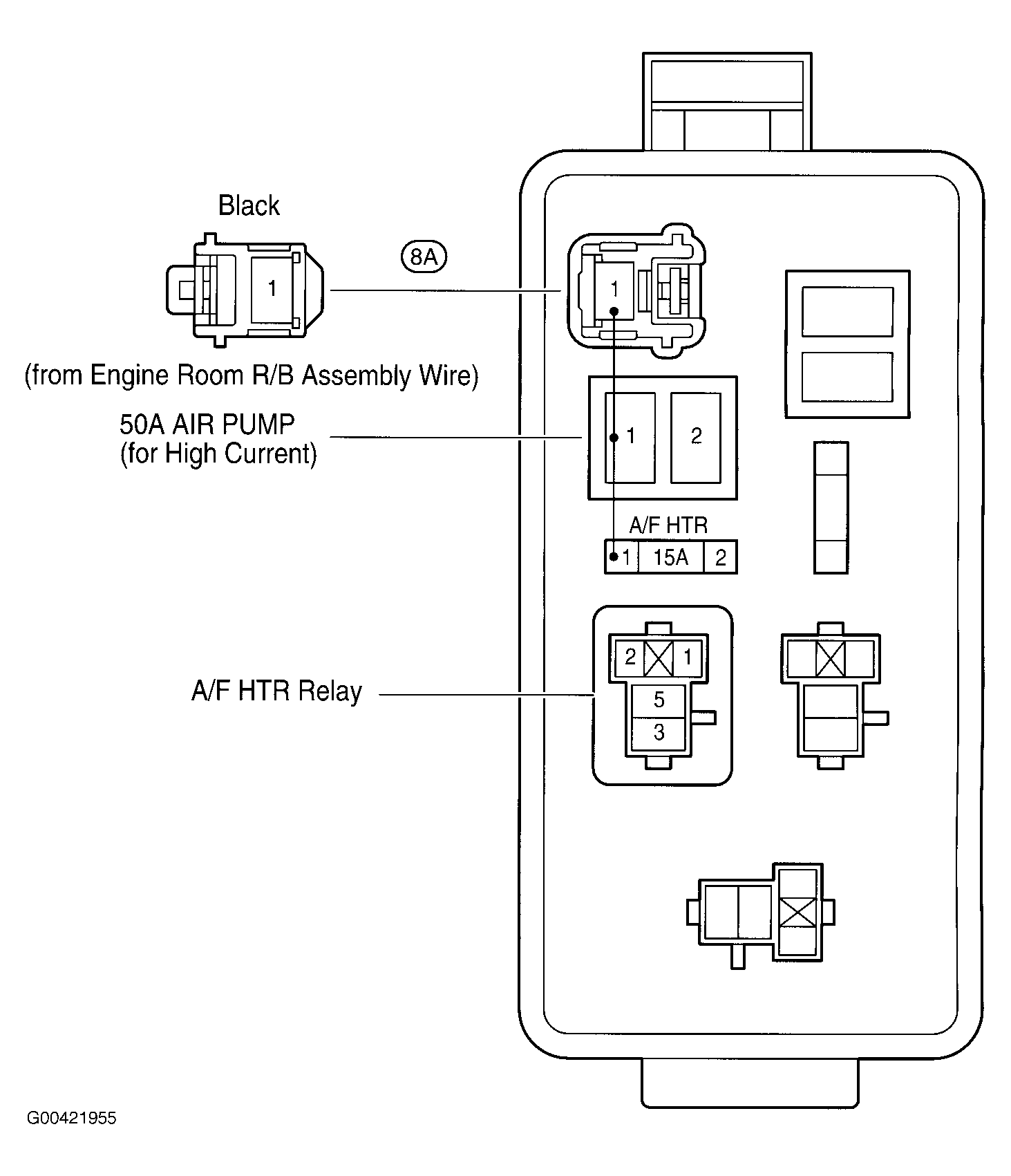

Fig 23: Engine Room J/B No. 8

G00421955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

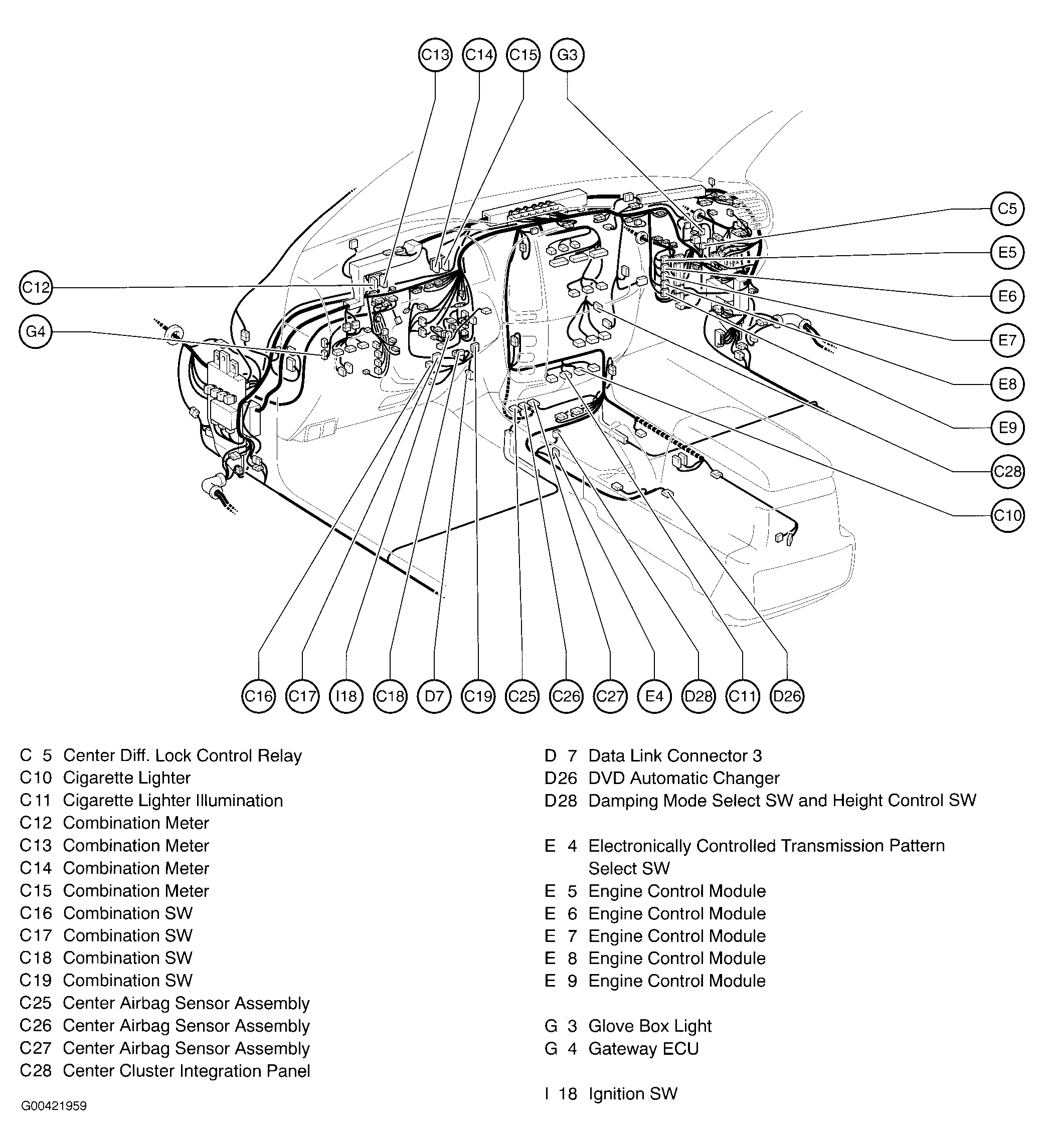

Fig 24: Dash

G00421959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

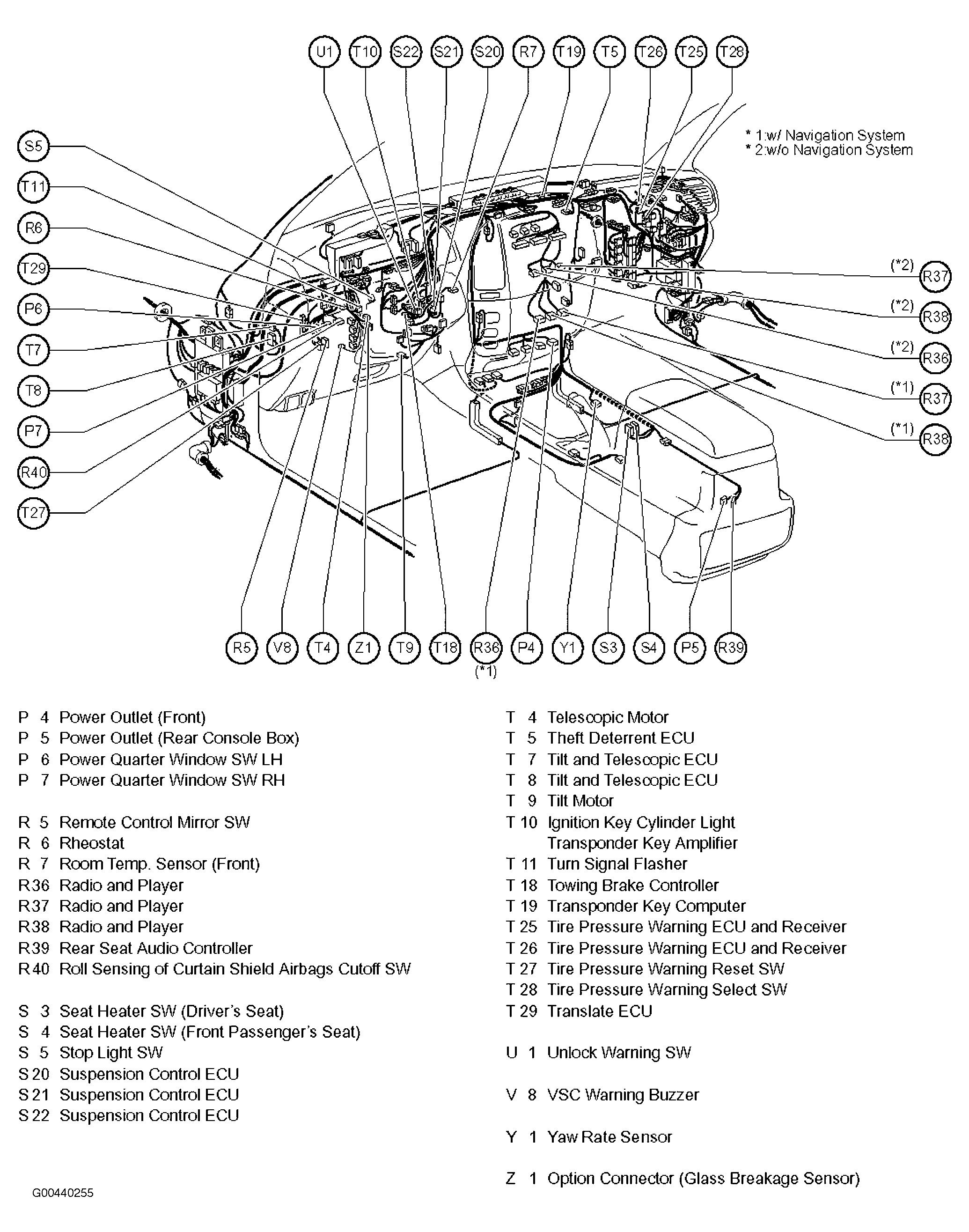

Fig 25: Dash

G00440255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
