Oil Pump: Components

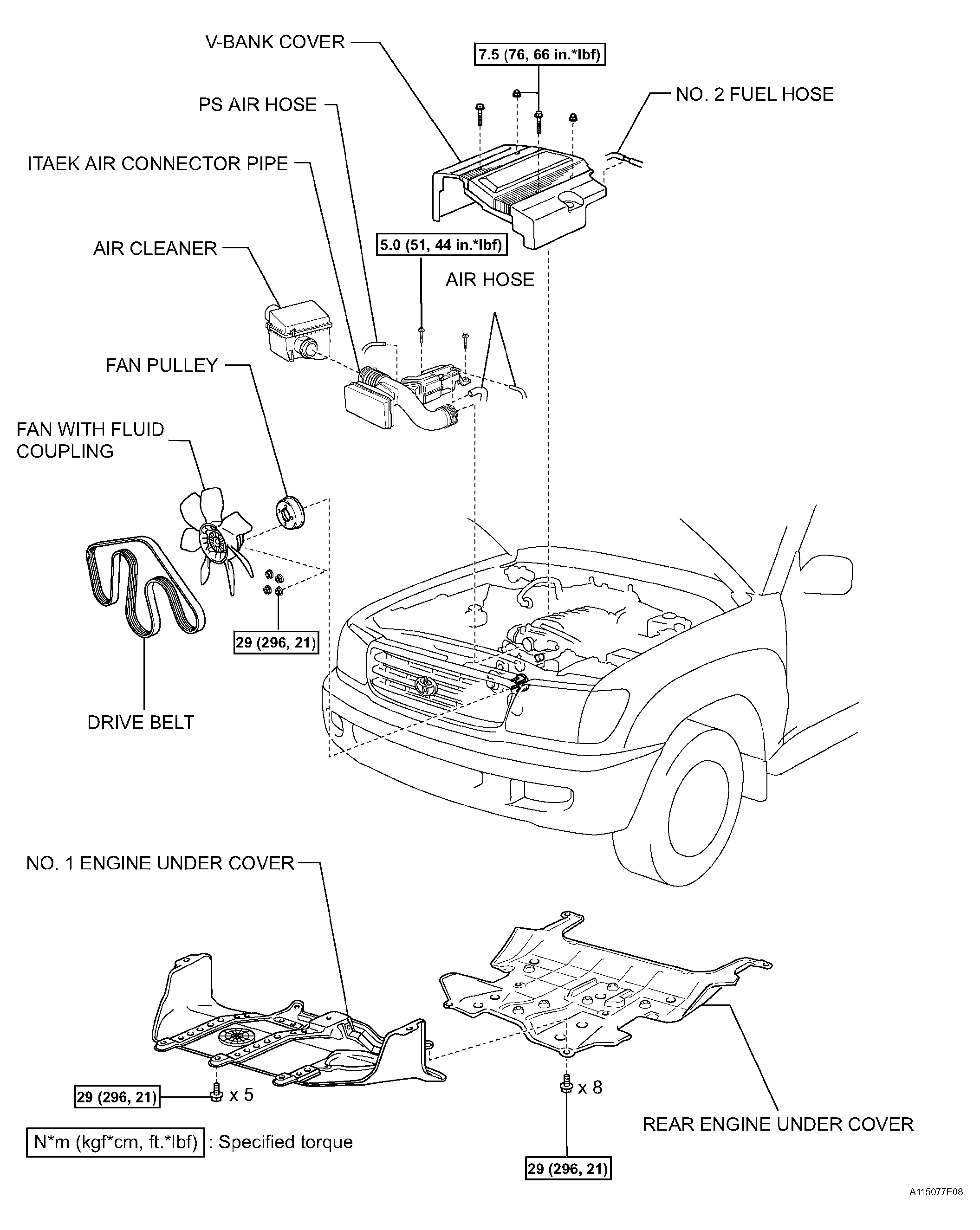

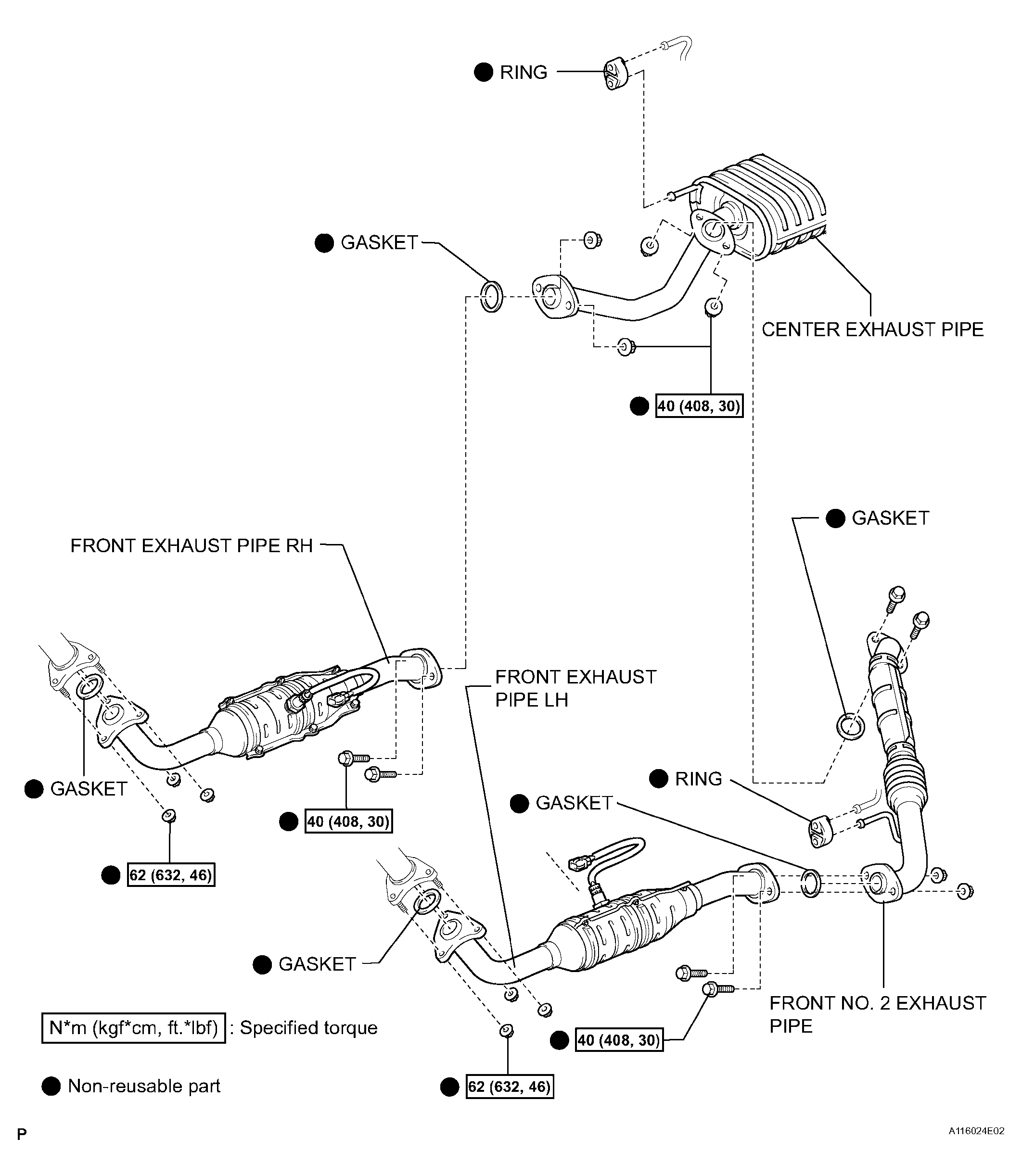

Fig 1: Identifying Oil Pump Components & Replacements (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

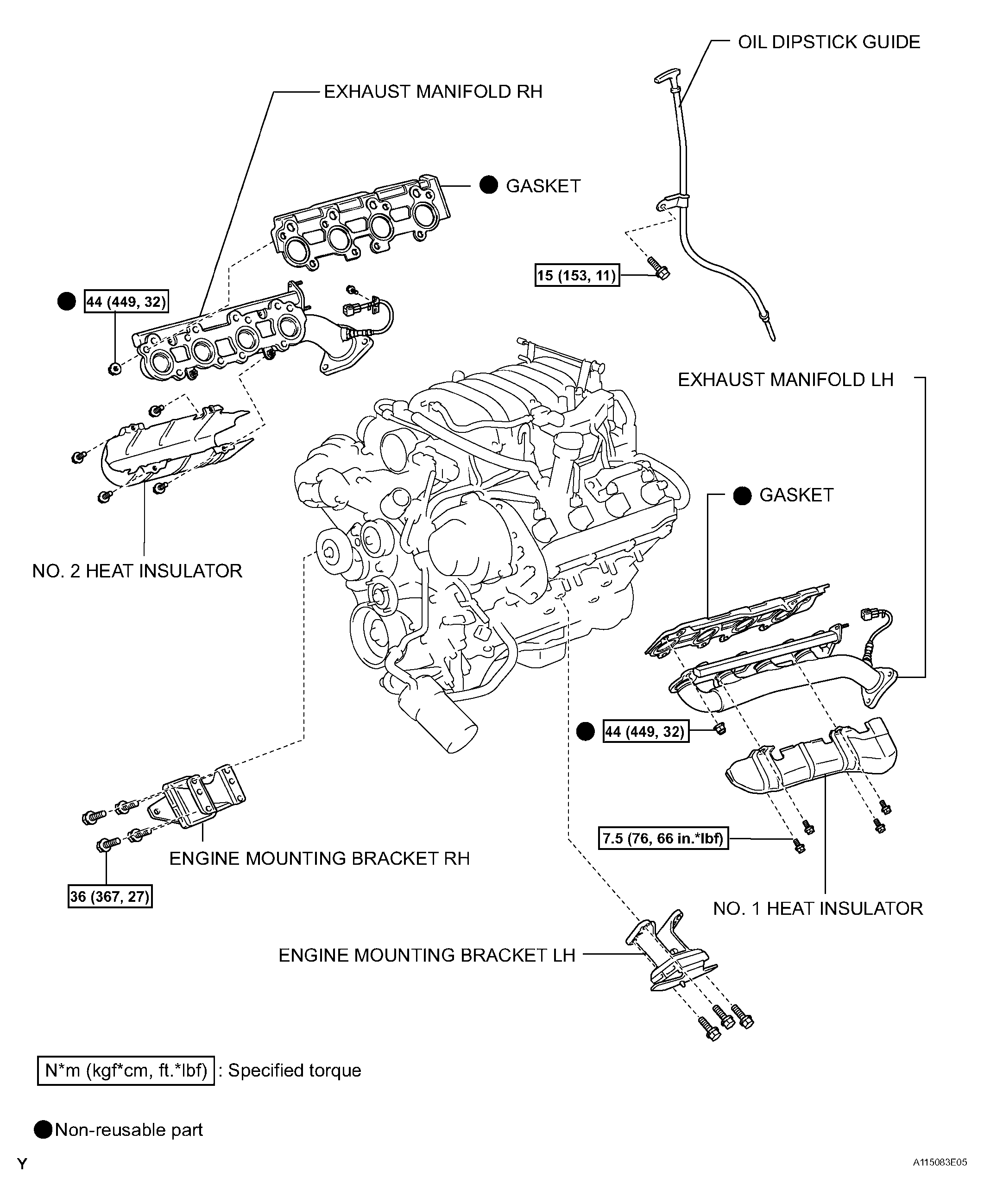

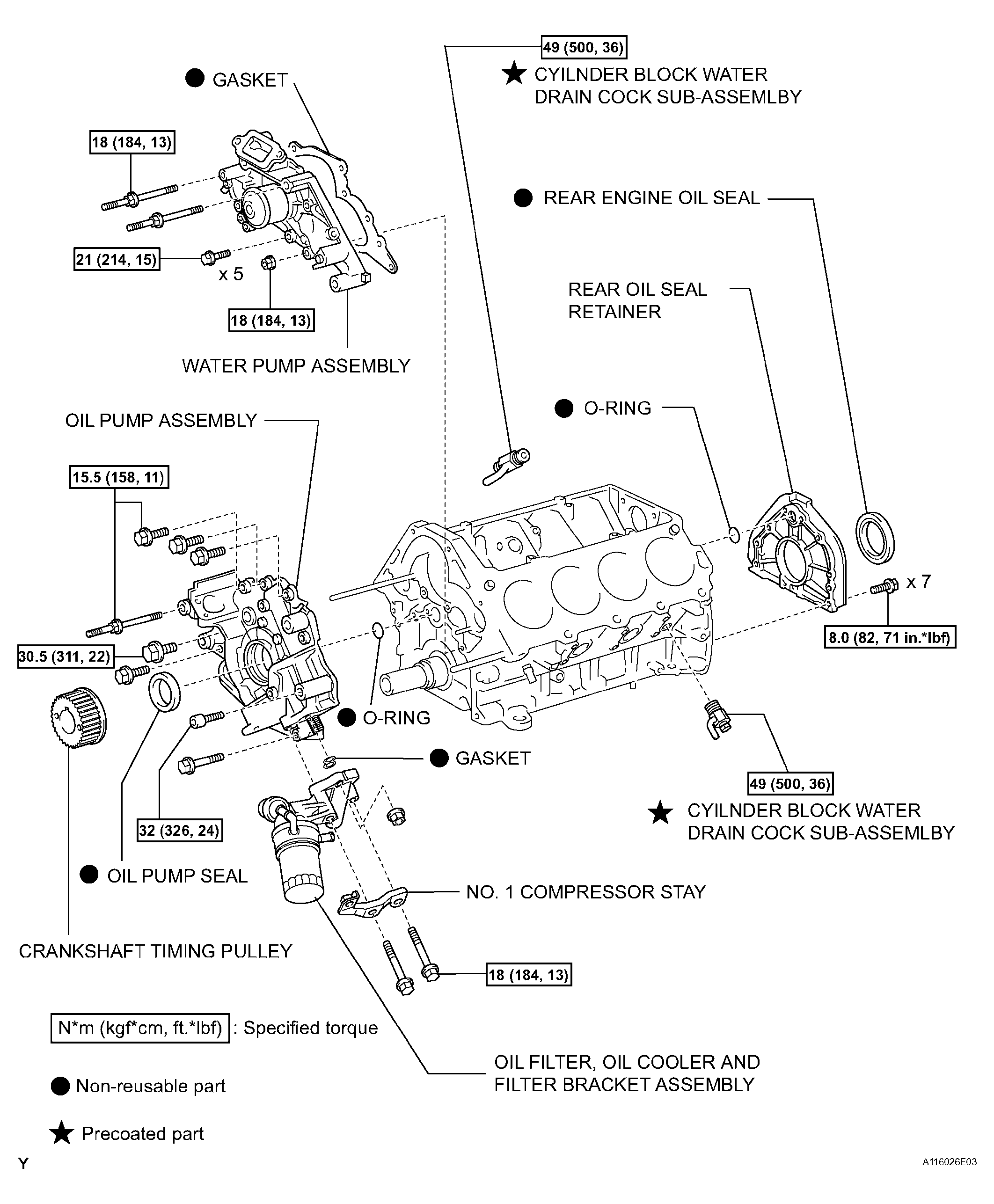

Fig 2: Identifying Oil Pump Components & Replacements (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

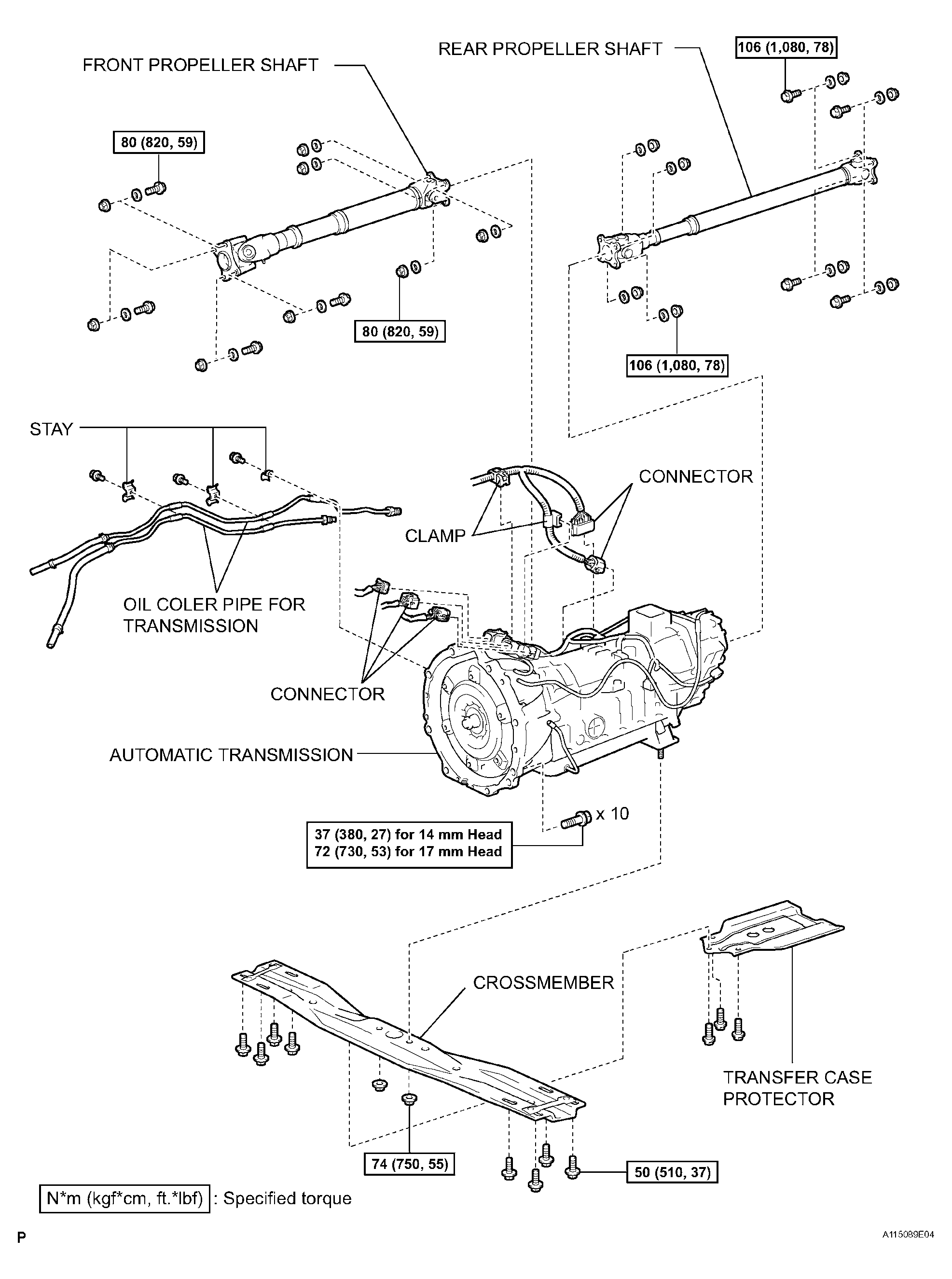

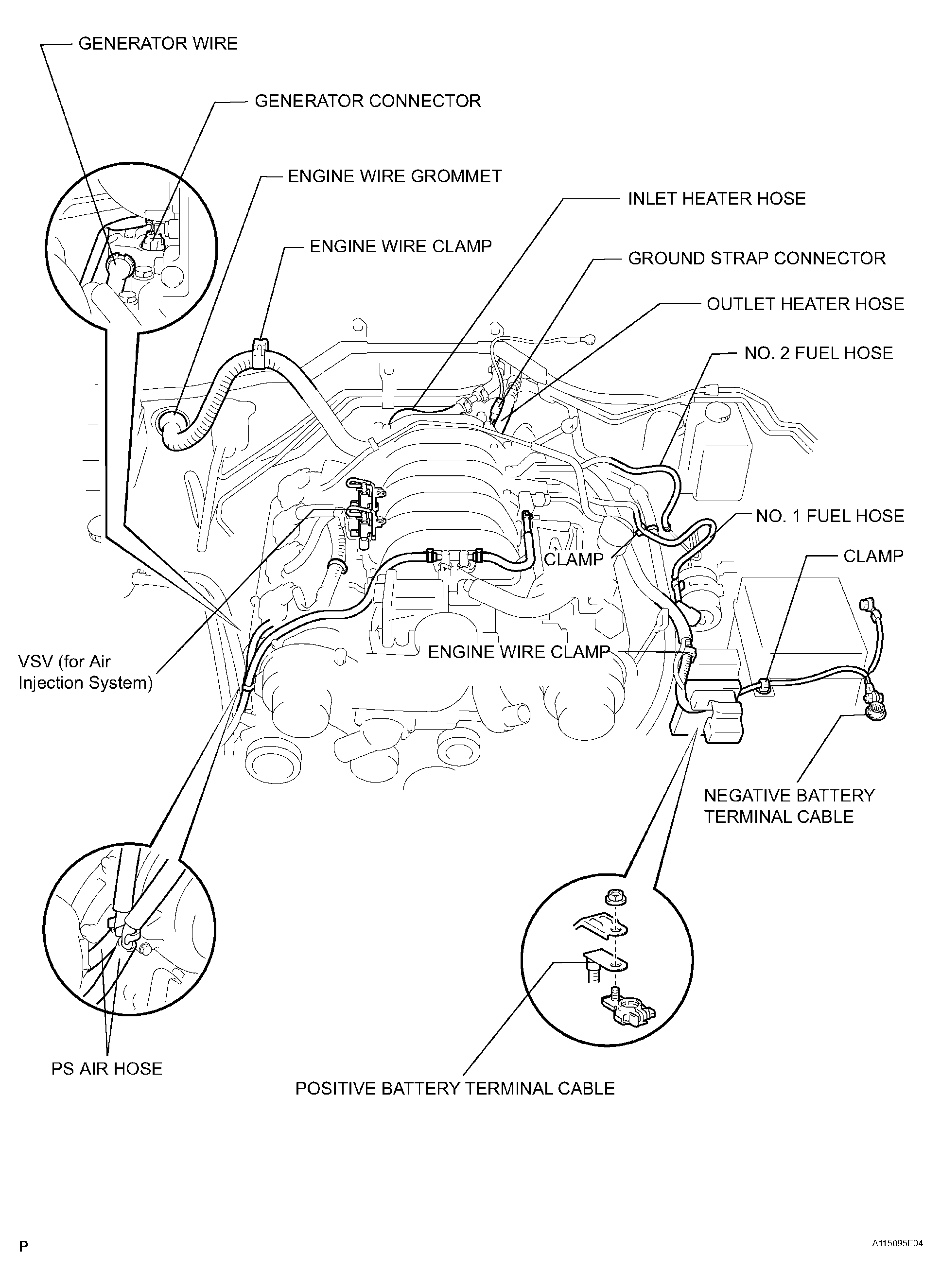

Fig 3: Identifying Oil Pump Components & Replacements (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

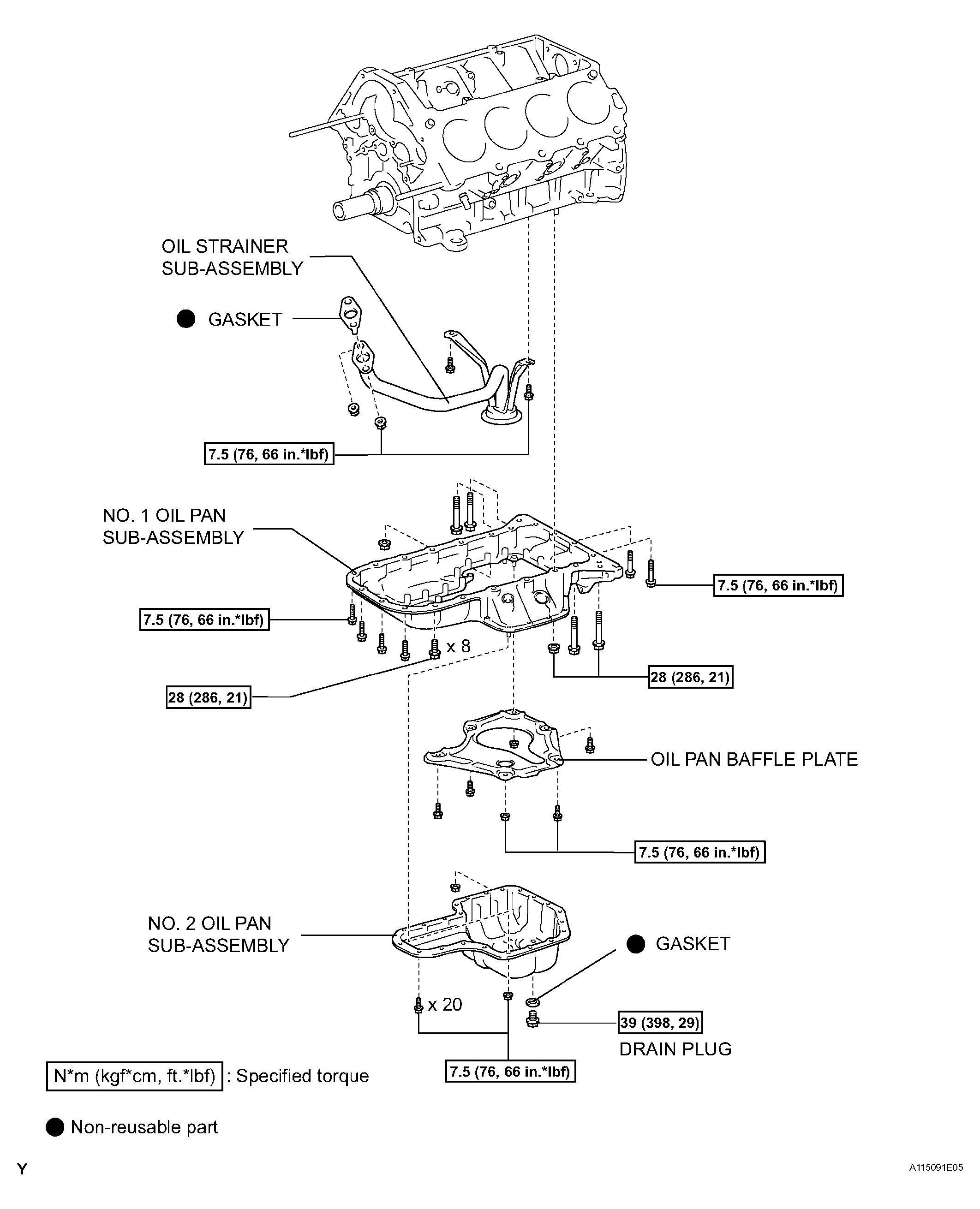

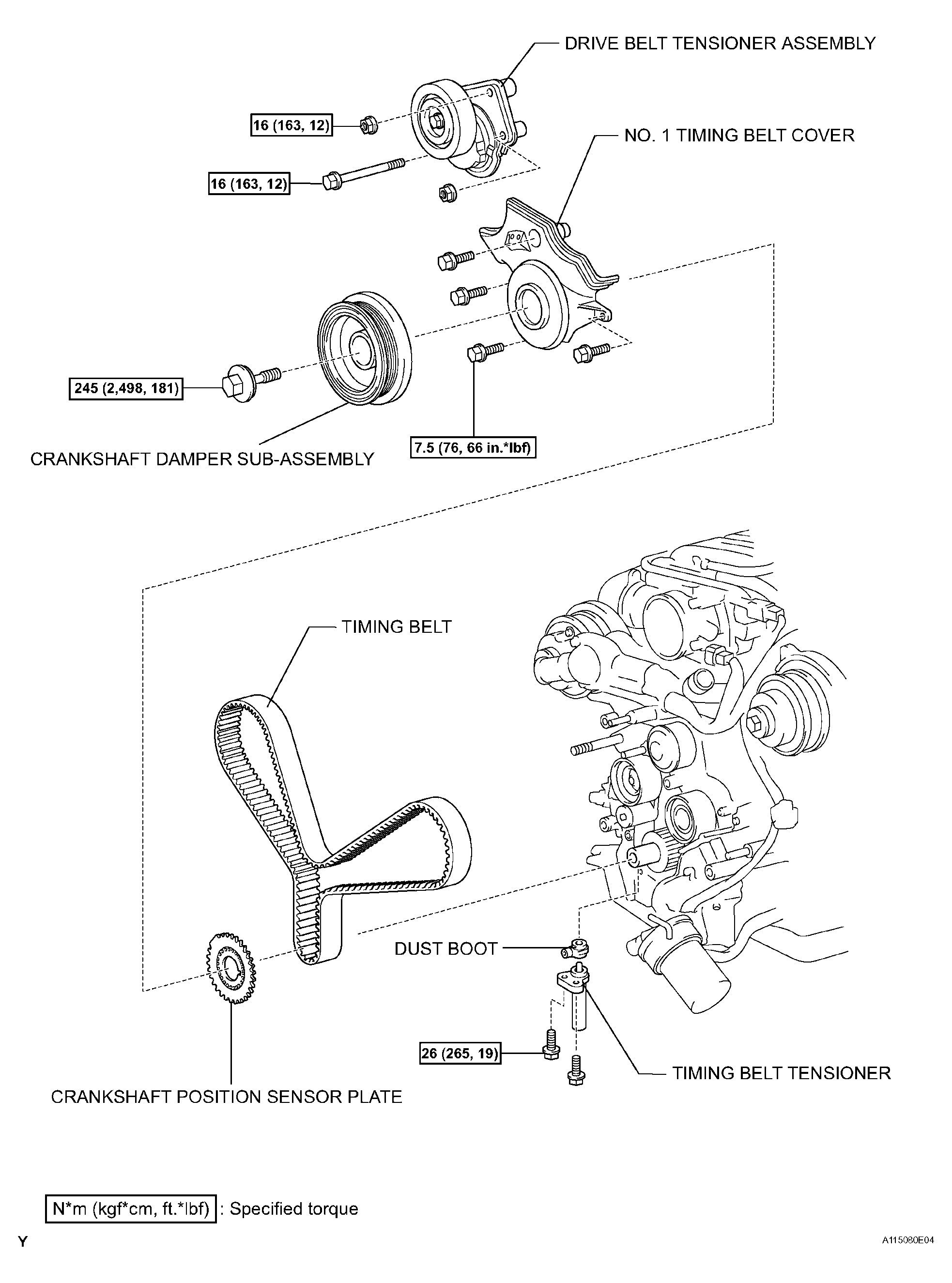

Fig 4: Identifying Oil Pump Components & Replacements (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

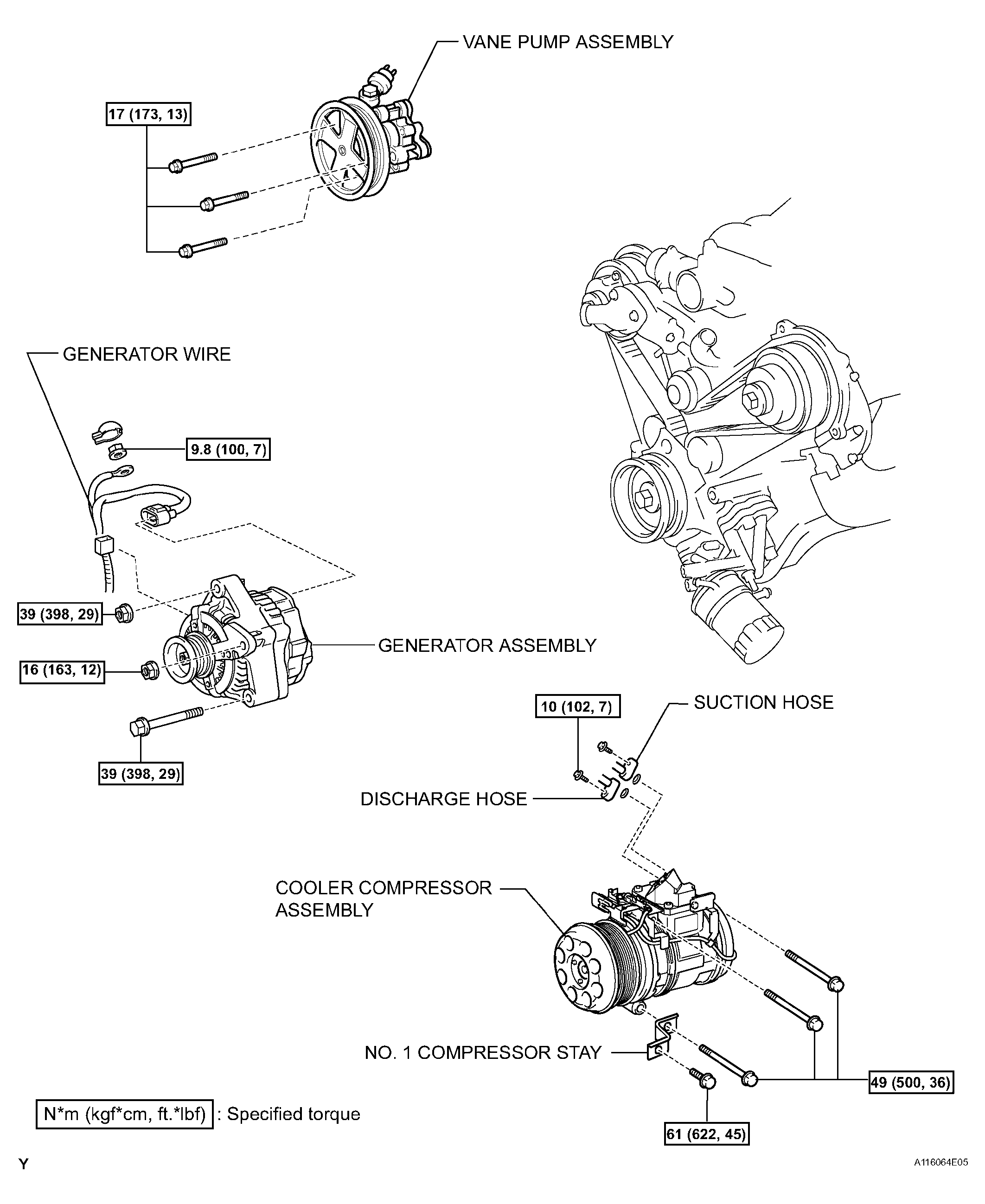

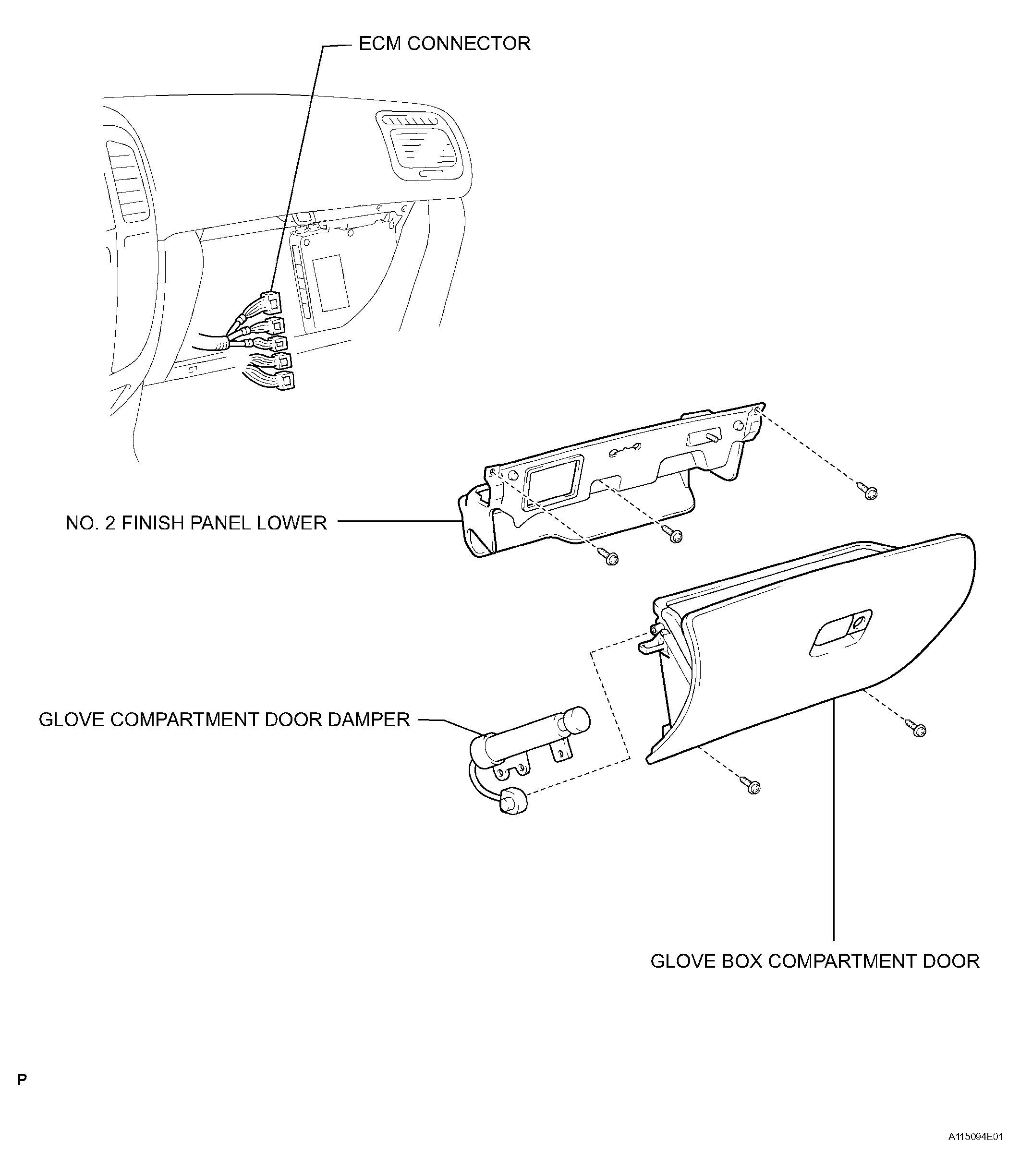

Fig 5: Identifying Oil Pump Components & Replacements (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

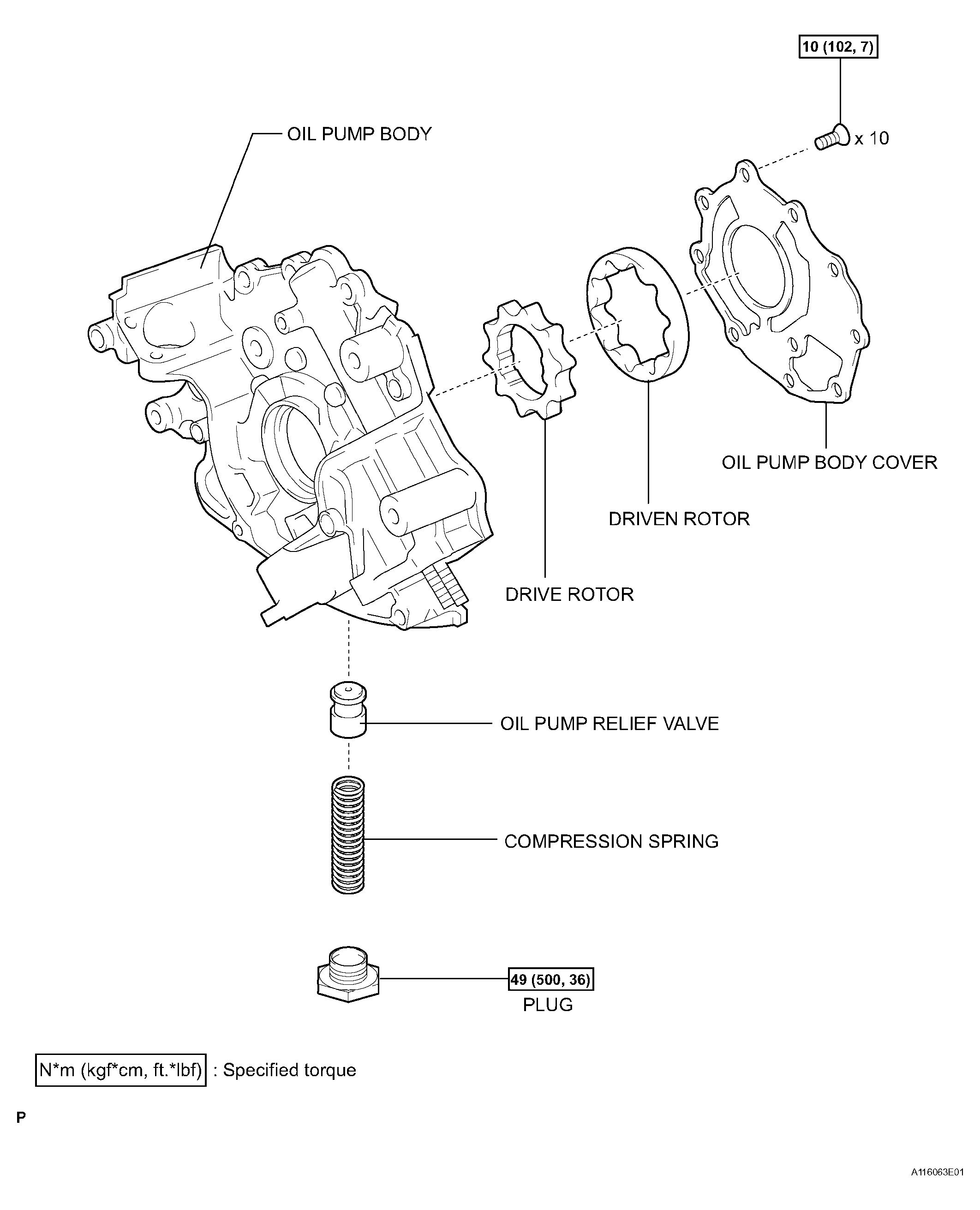

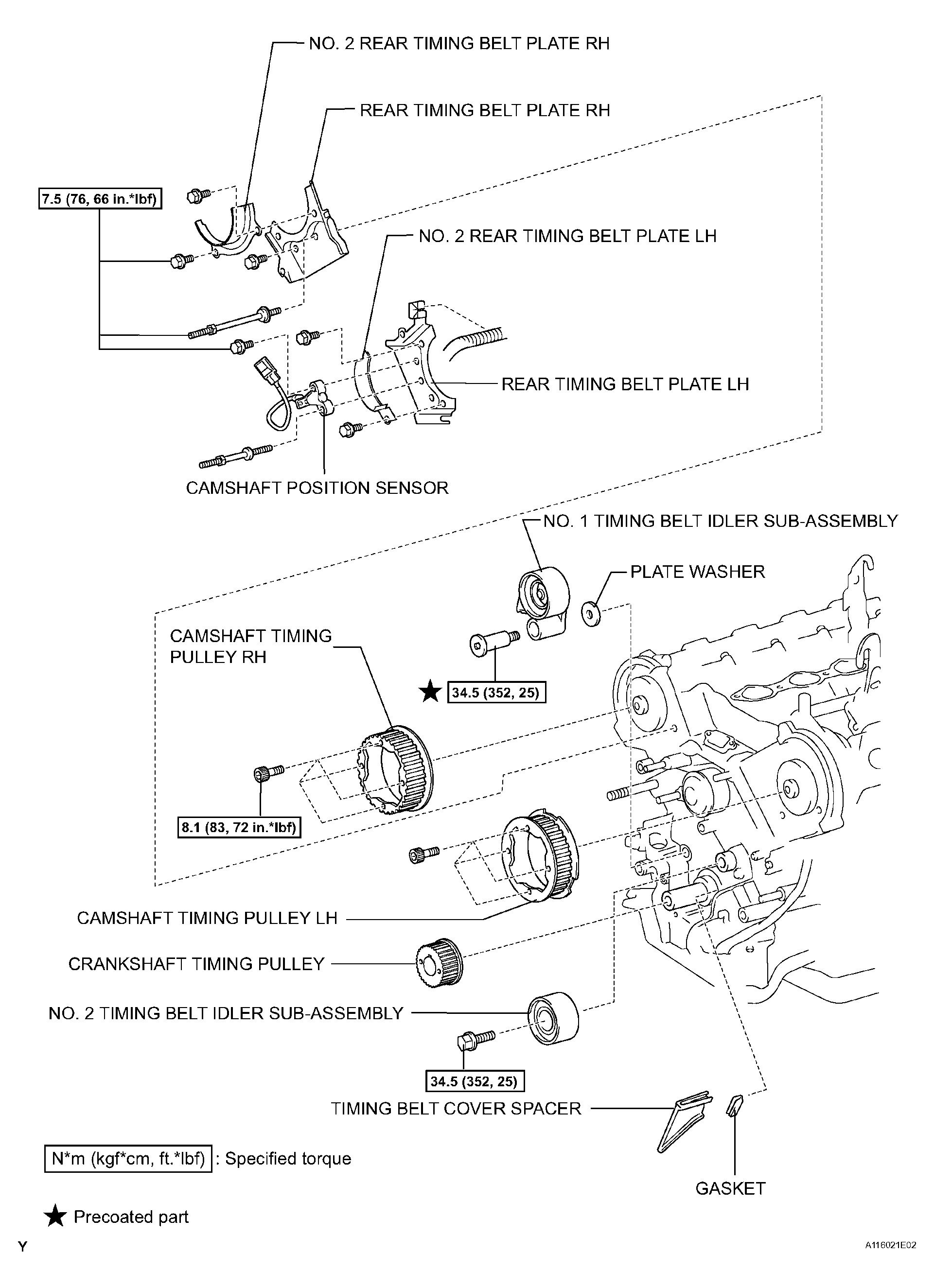

Fig 6: Identifying Oil Pump Components & Replacements (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

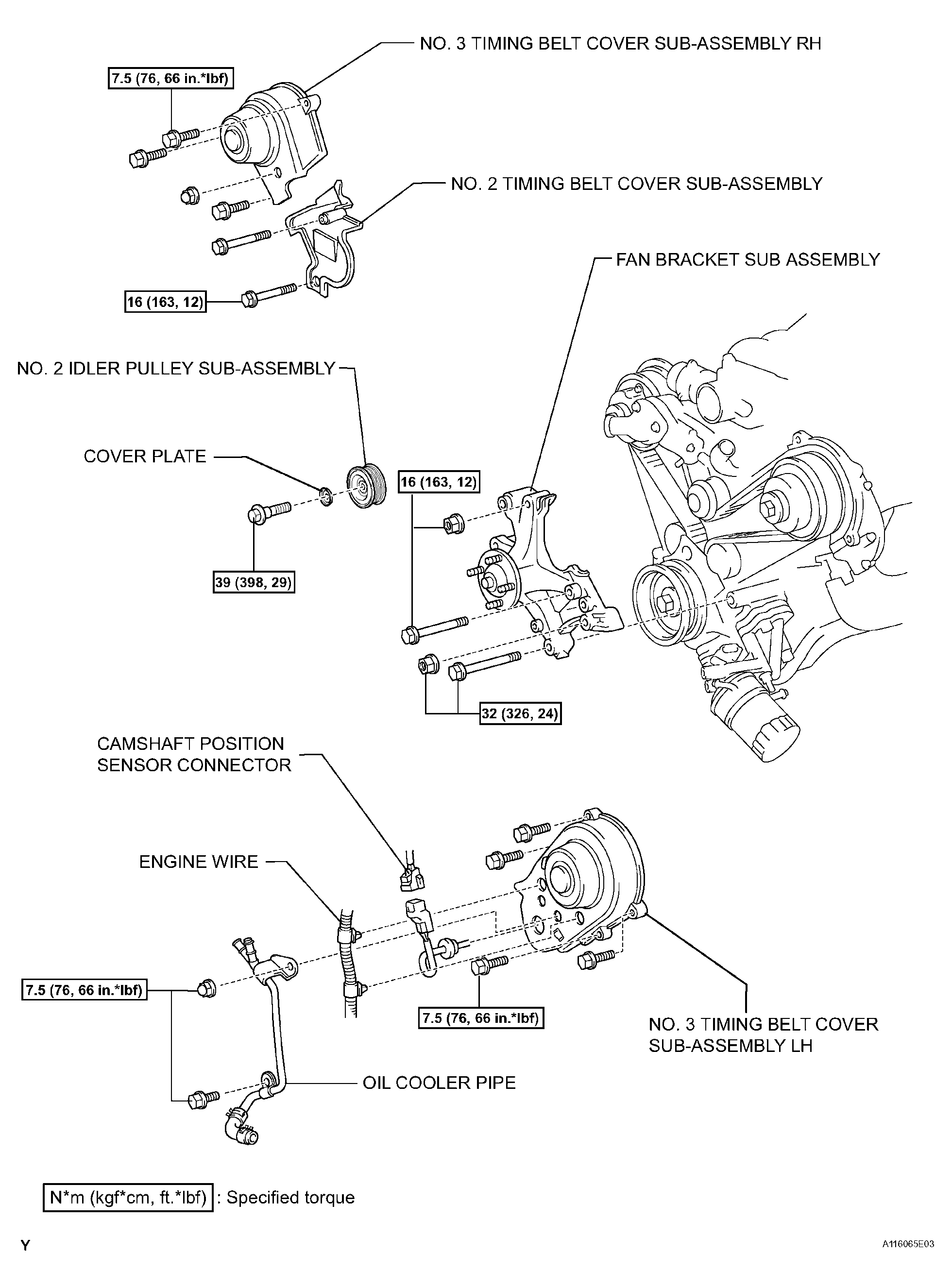

Fig 7: Identifying Oil Pump Components & Replacements (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Oil Pump Components & Replacements (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Oil Pump Components & Replacements (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Oil Pump Components & Replacements (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Oil Pump Components & Replacements (11 Of 15)

Fig 12: Identifying Oil Pump Components & Replacements (12 Of 15)

Fig 13: Identifying Oil Pump Components & Replacements (13 Of 15)

Fig 14: Identifying Oil Pump Components & Replacements (14 Of 15)

Fig 15: Identifying Oil Pump Components & Replacements (15 Of 15)
