Fuel Pump Resistor: Installation

  1. INSTALL FUEL PUMP RESISTOR
    1. Install the resistor with the bolt.

      Torque: 12 N*m (122 kgf*cm, 8.8 ft.*lbf)

    2. Connect the resistor connector.

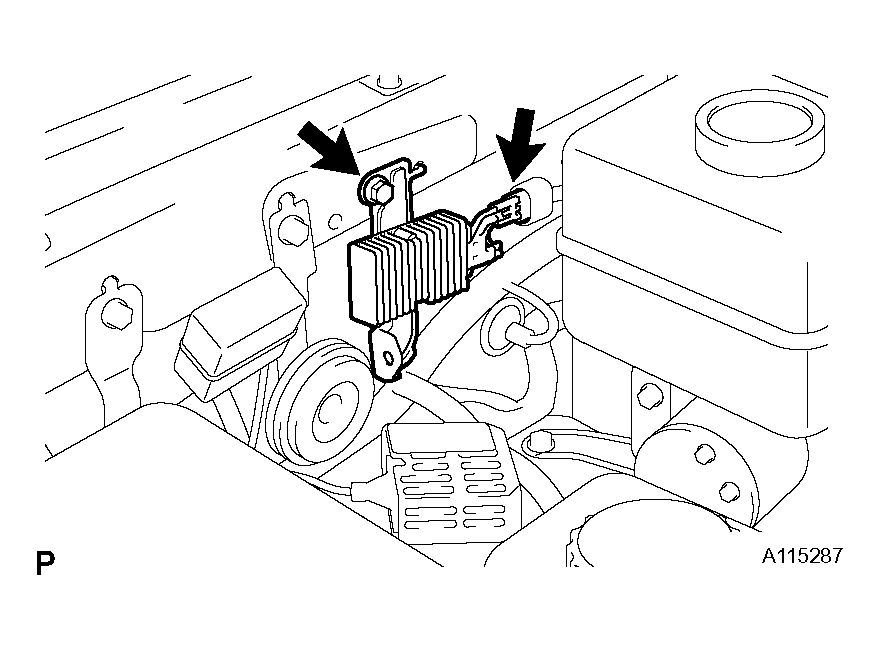

    Fig 1: Installing Fuel Pump Resistor
    G04436049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
