Home >> Toyota >> 2007 >> Land Cruiser >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Rear Shock Absorber >> Components

Rear Shock Absorber: Components

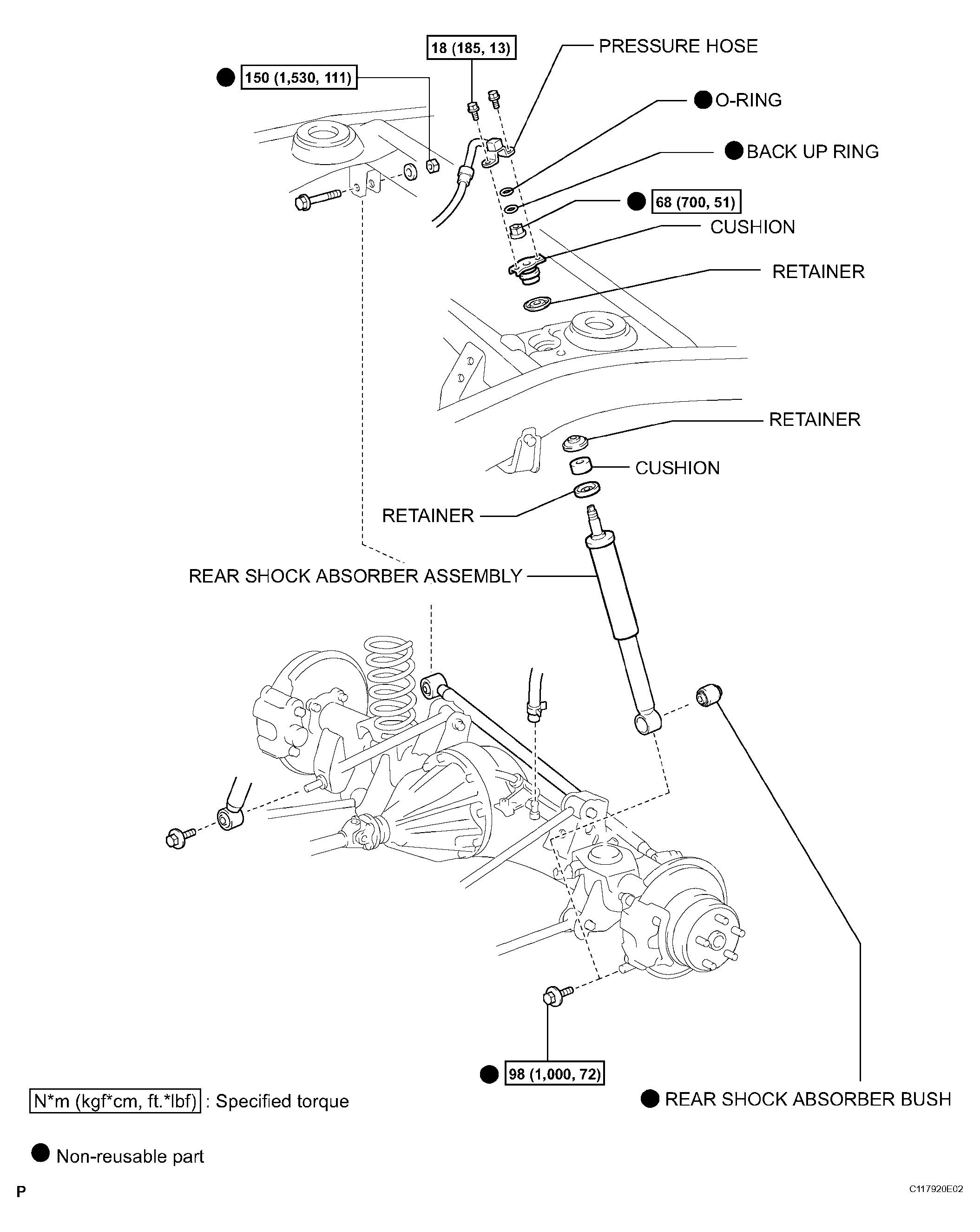

Fig 1: Rear Shock Absorber Replacement Components & Torque Specification

G04437592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
