Home >> Toyota >> 2007 >> Land Cruiser >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Torsion Bar Spring >> Components

Torsion Bar Spring: Components

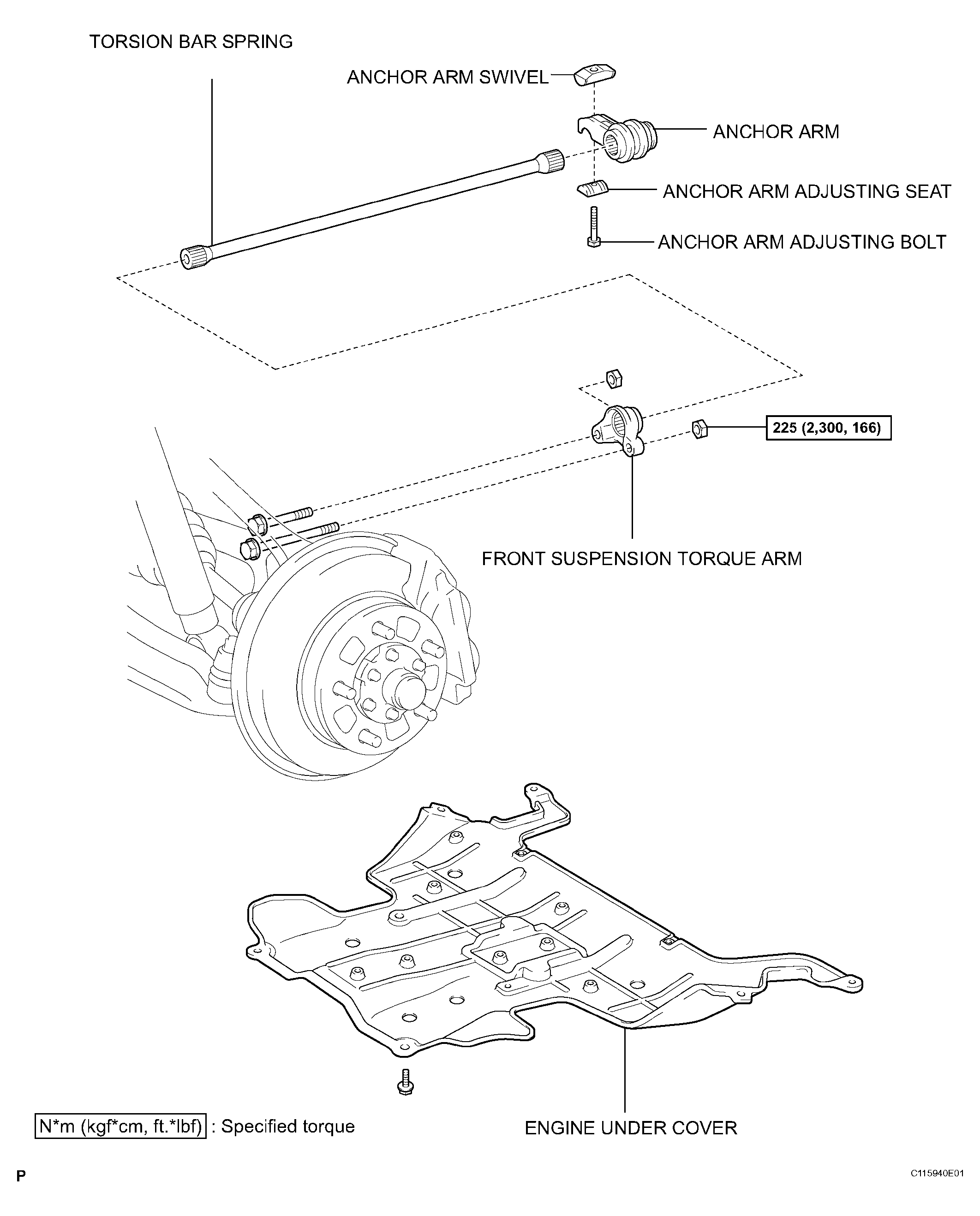

Fig 1: Torsion Bar Spring Replacement Components & Torque Specification

G04437548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
