Roof Headlining: Components

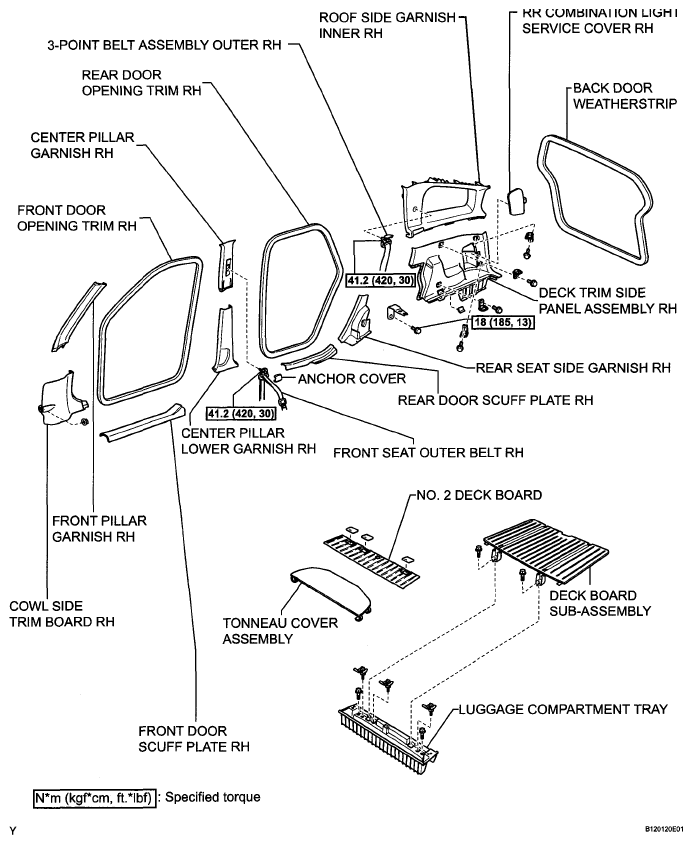

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 2)
G05237451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 2)
G05237452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

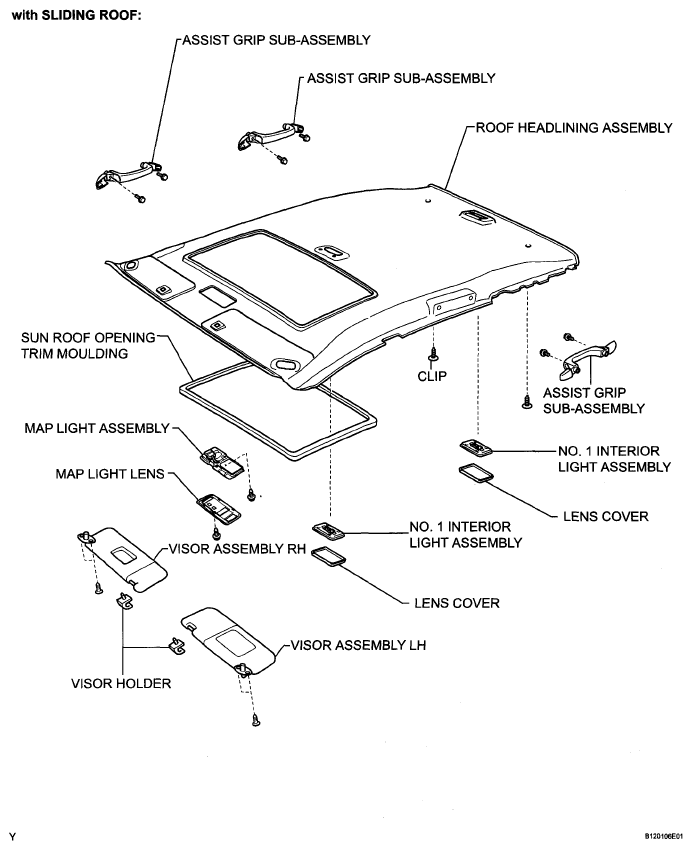

Fig 3: Identifying Roof Headlining Components With Sliding Roof
G05237453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

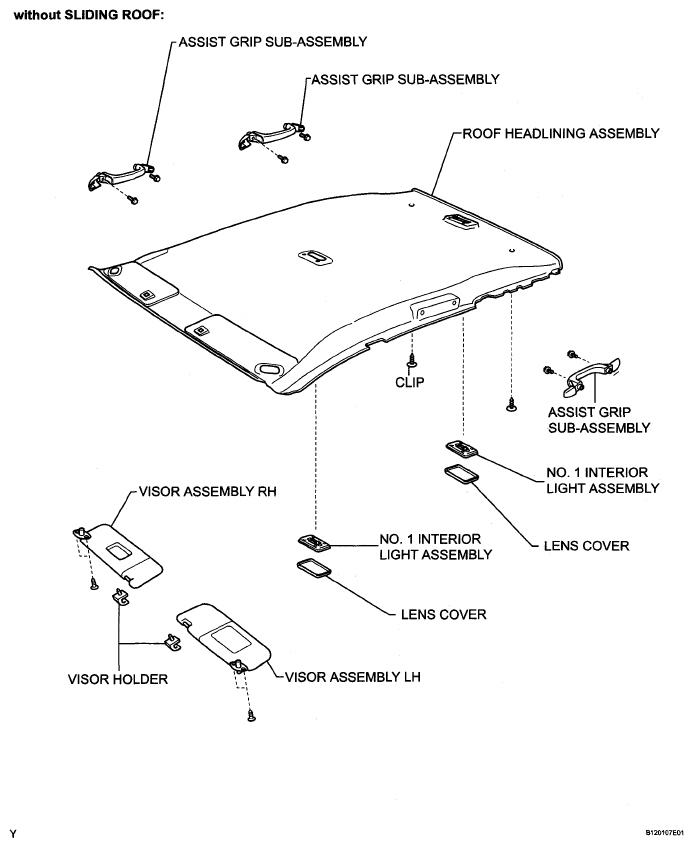

Fig 4: Identifying Roof Headlining Components Without Sliding Roof
G05237454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
