OEM System Circuits: Charging: Notes

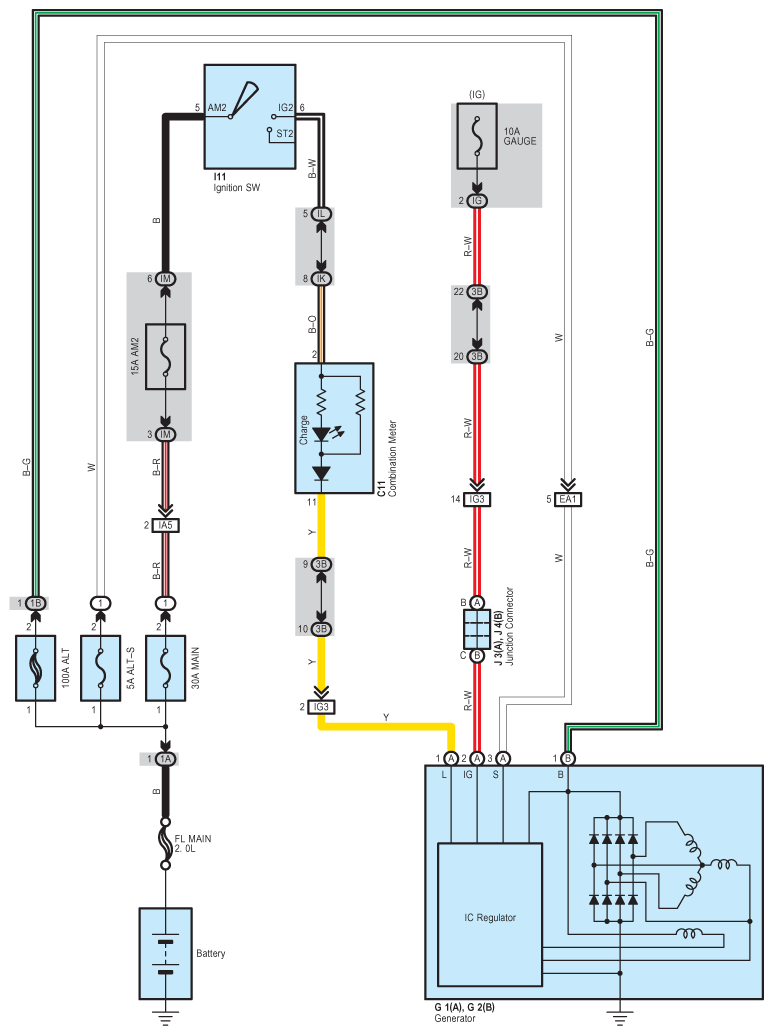

Fig 1: Charging System Wiring Diagram
G08790366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
