Home >> Toyota >> 2007 >> Matrix Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Ignition >> Notes

OEM System Circuits: Ignition: Notes

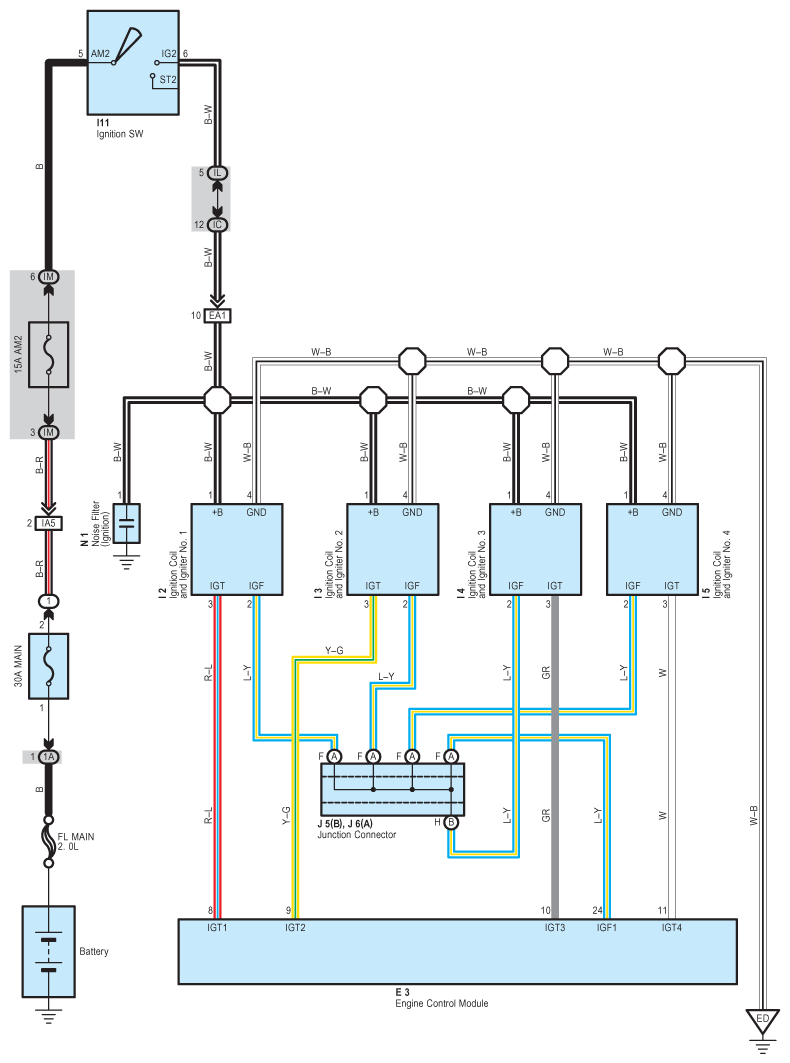

Fig 1: Ignition System Wiring Diagram
G08790365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
