Home >> Toyota >> 2007 >> Matrix Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Mode 6 - TOYOTA >> AVALON

Mode 6 - TOYOTA: AVALON

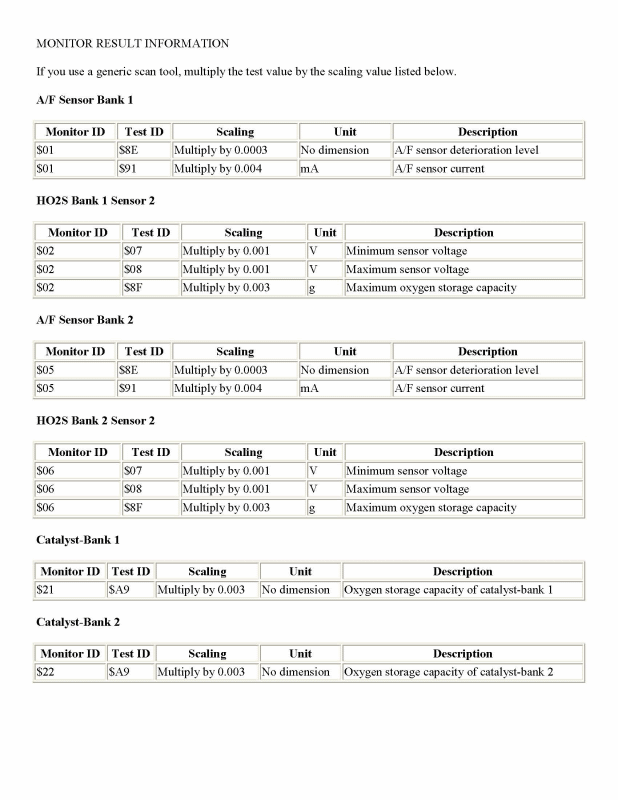

Fig 1: Mode 6 Data For Avalon (1 Of 3)
G00525826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

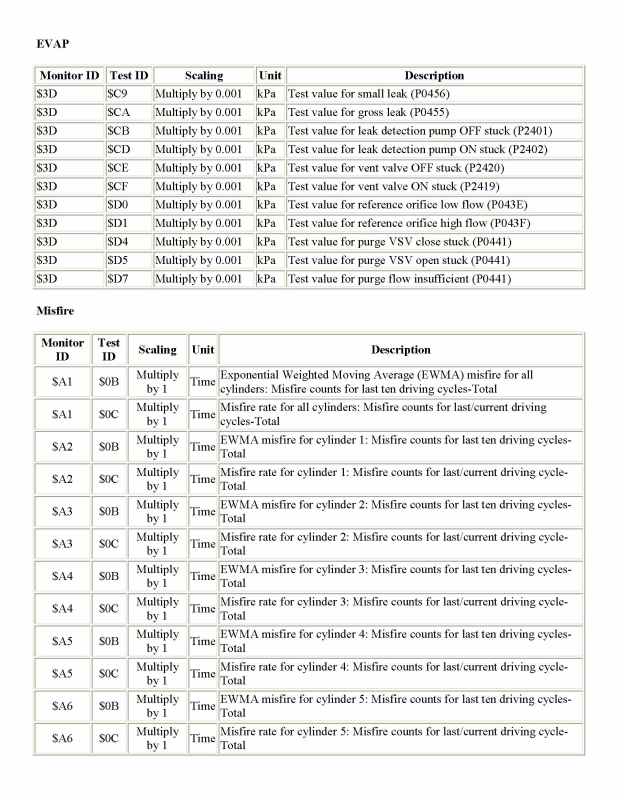

Fig 2: Mode 6 Data For Avalon (2 Of 3)
G00525827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

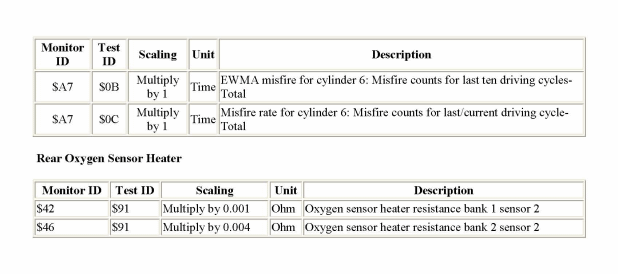

Fig 3: Mode 6 Data For Avalon (3 Of 3)
G00525828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
