Mode 6 - TOYOTA
>>
Land Cruiser
Land Cruiser

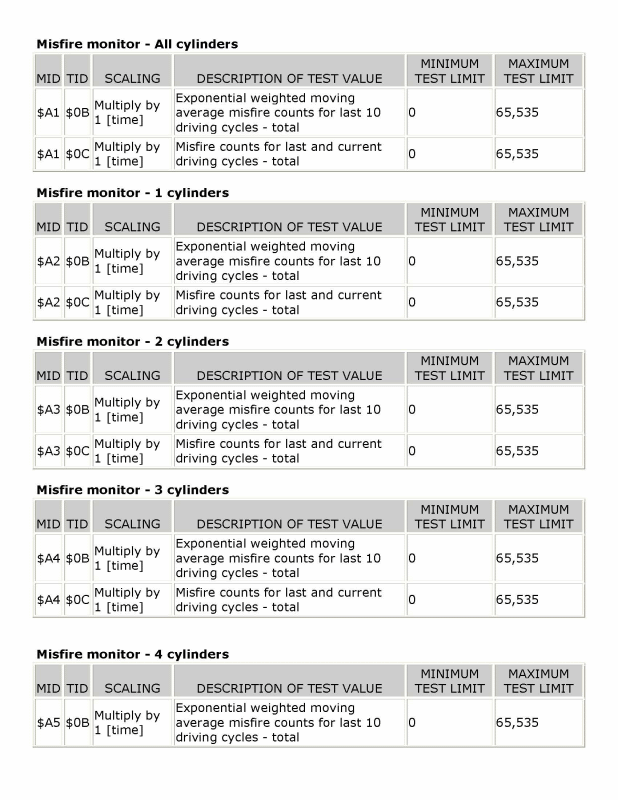

Fig 1: Mode 6 Data For Land Cruiser (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

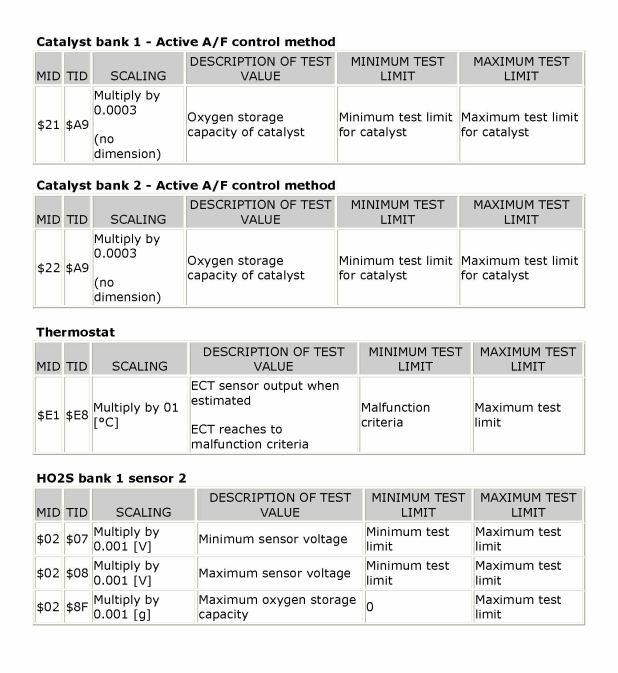

Fig 2: Mode 6 Data For Land Cruiser (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

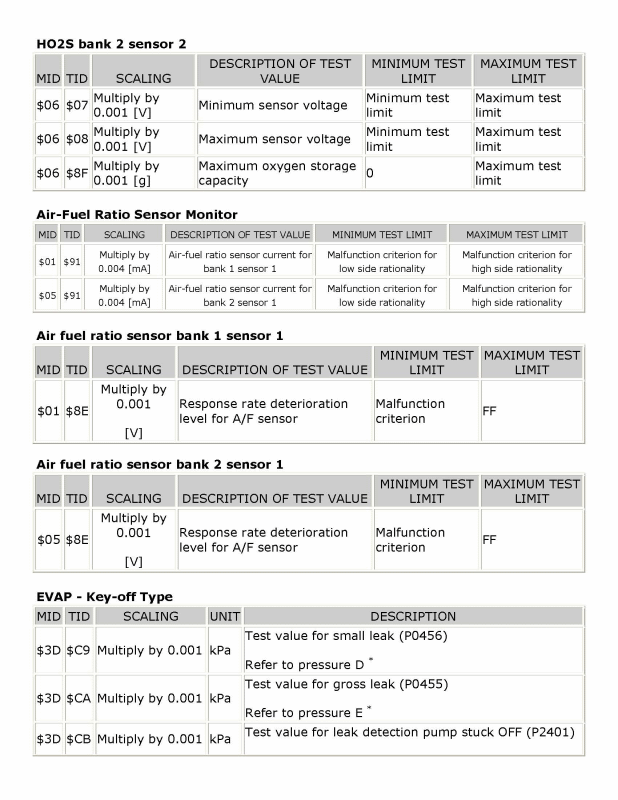

Fig 3: Mode 6 Data For Land Cruiser (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

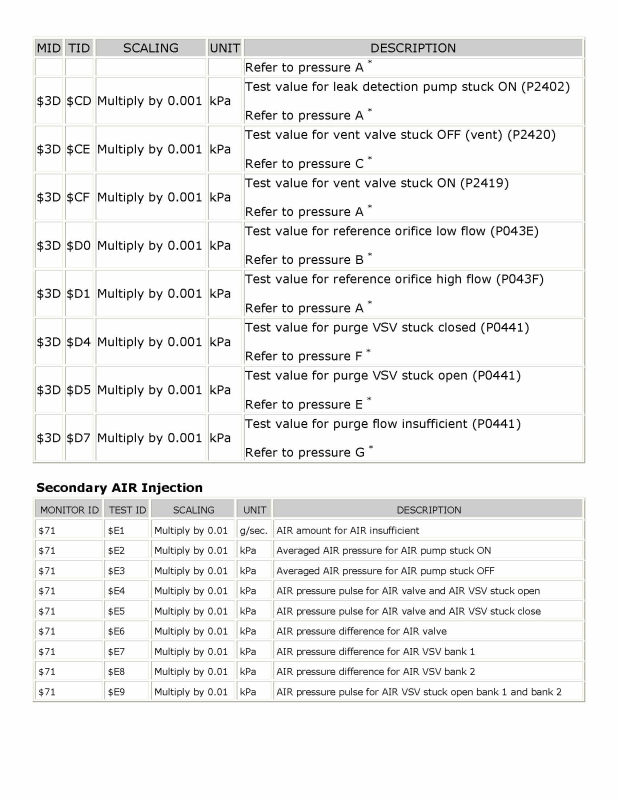

Fig 4: Mode 6 Data For Land Cruiser (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

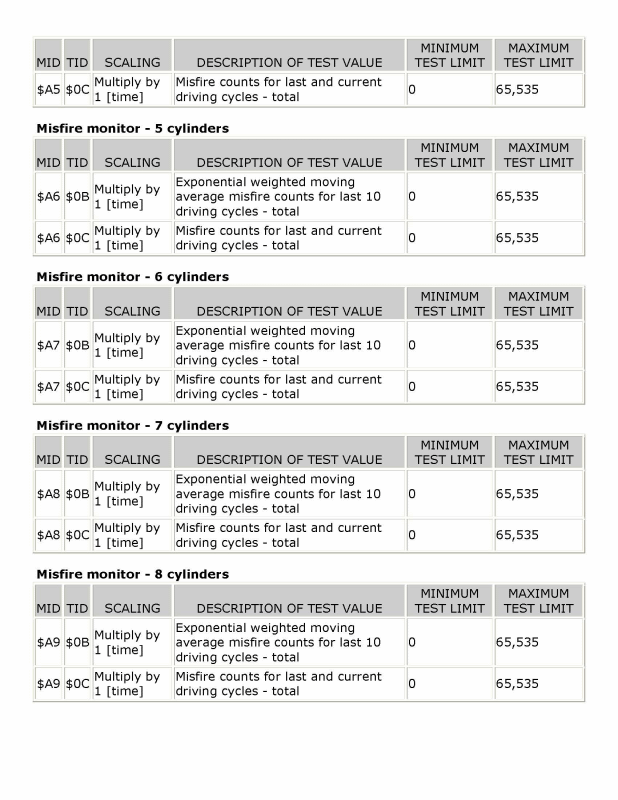

Fig 5: Mode 6 Data For Land Cruiser (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
