Home >> Toyota >> 2007 >> Matrix Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Mode 6 - TOYOTA >> RAV4 >> 2AZ-FE 2.4L

2AZ-FE 2.4L

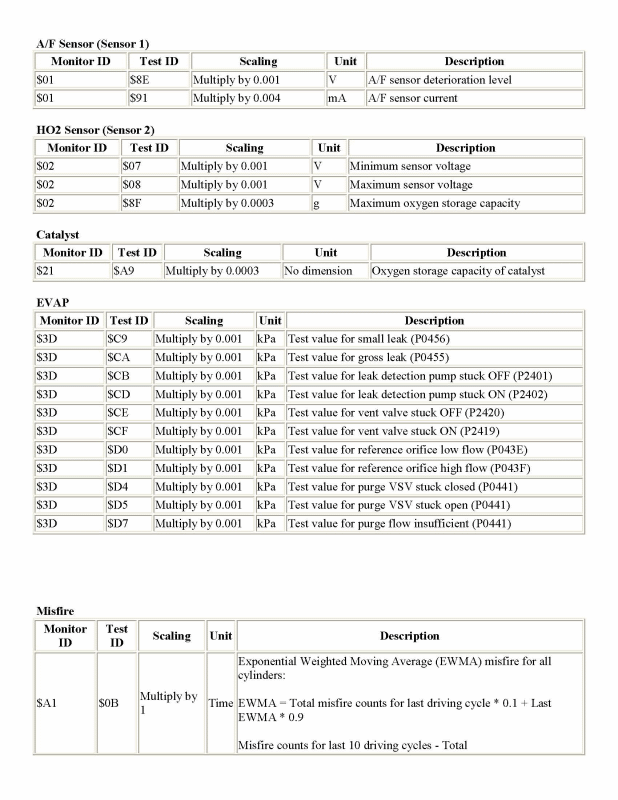

Fig 1: Mode 6 Data For RAV4 4 Cyl. (1 Of 3)
G00526029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

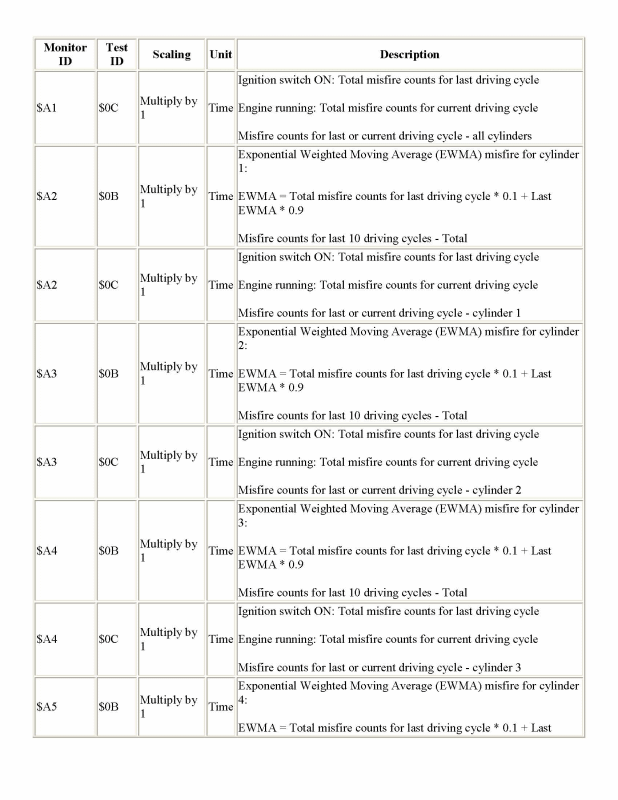

Fig 2: Mode 6 Data For RAV4 4 Cyl. (2 Of 3)
G00526030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

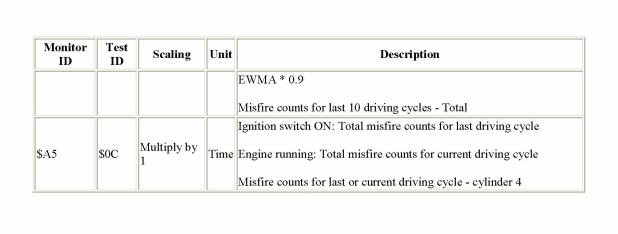

Fig 3: Mode 6 Data For RAV4 4 Cyl. (3 Of 3)
G00526031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
