Home >> Toyota >> 2007 >> Matrix Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Mode 6 - TOYOTA >> YARIS

Mode 6 - TOYOTA: YARIS

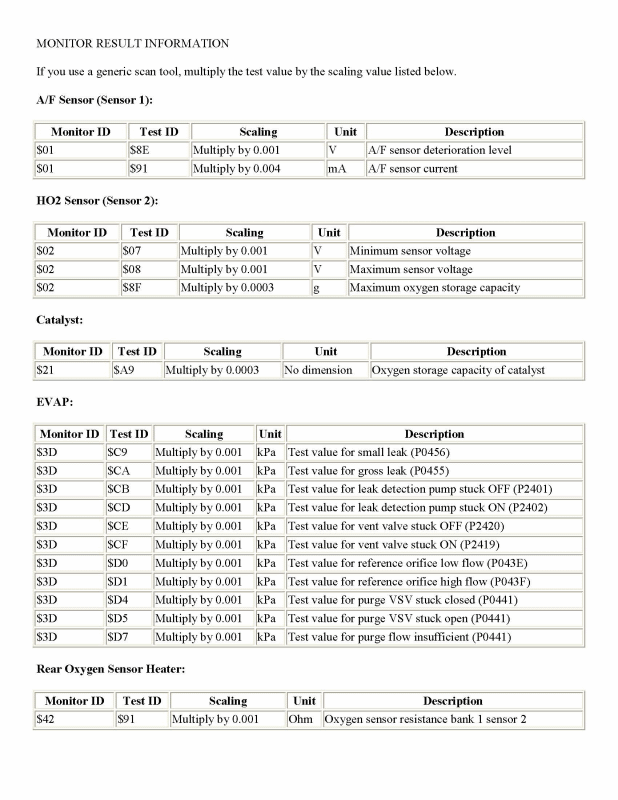

Fig 1: Mode 6 Data For Yaris (1 Of 3)
G00525829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

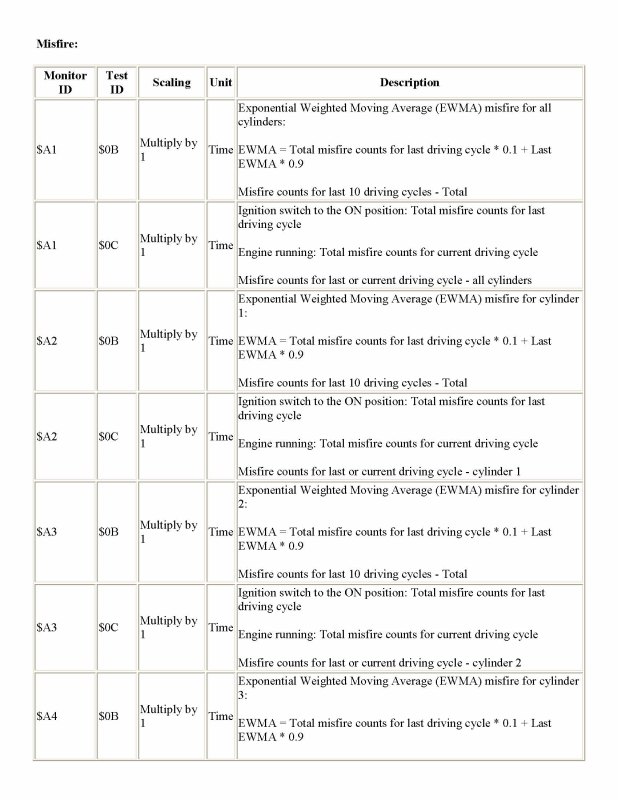

Fig 2: Mode 6 Data For Yaris (1 Of 3)
G00525830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

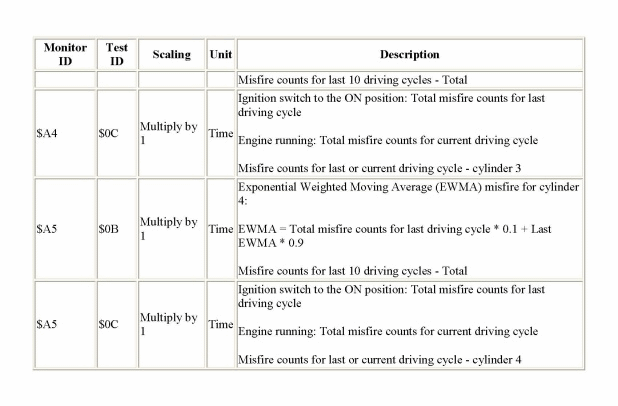

Fig 3: Mode 6 Data For Yaris (3 Of 3)
G00526011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
