Front Lower Ball Joint: Components

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
G05235006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

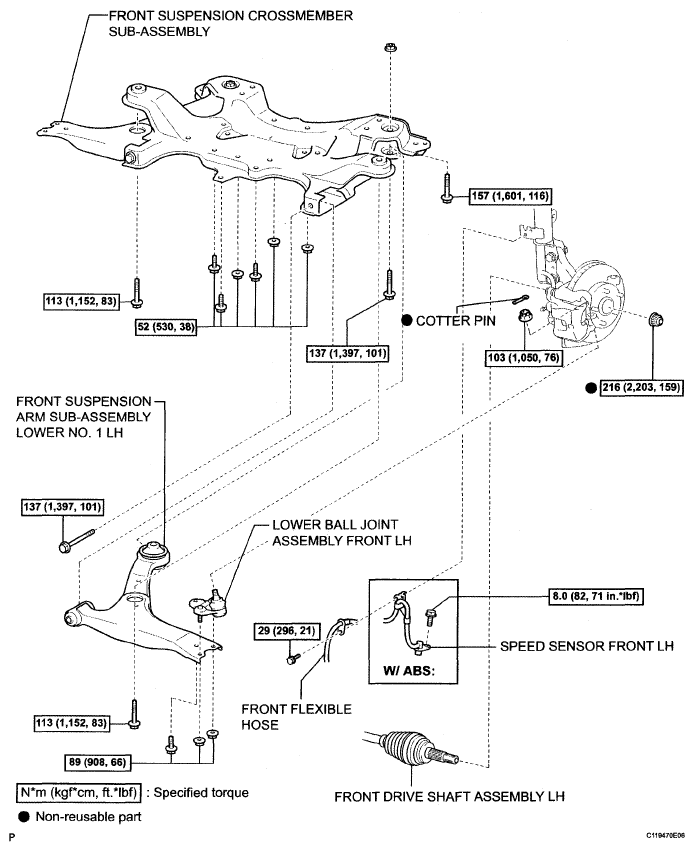

Fig 2: Front Lower Suspension Arm Replacement Components With Torque Specifications (2 Of 2)
G05194652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
