Automatic Transmission - A246E
>>
Differential Case
>>
Components
Differential Case: Components

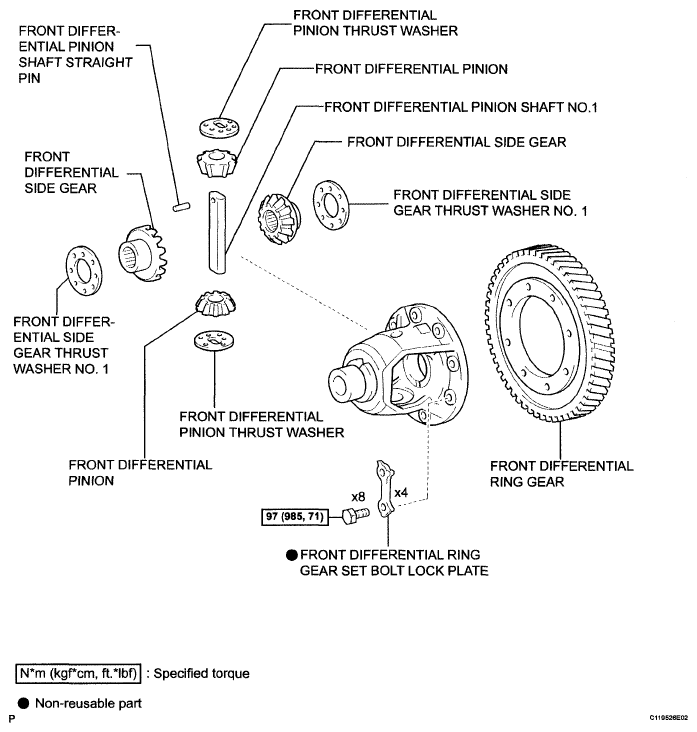

Fig 1: Exploded View Of Differential Case Components With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
