Floor Shift Assembly: Components

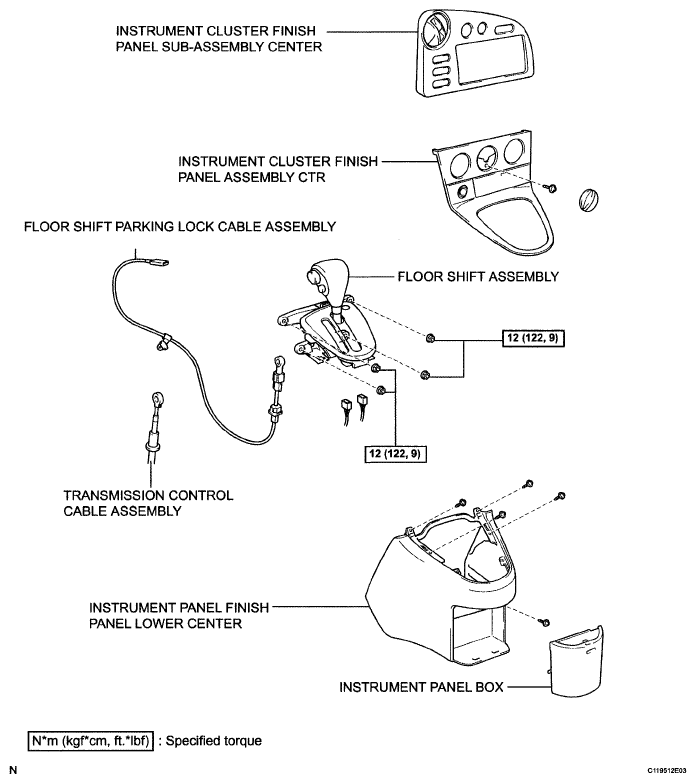

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 2)
G05233982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

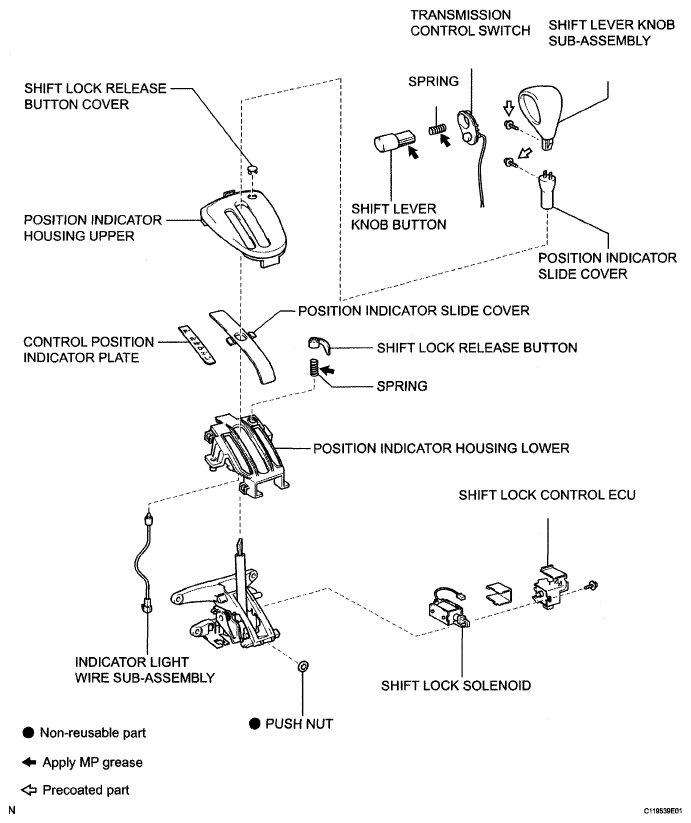

Fig 2: Identifying Floor Shift Assembly Components (2 Of 2)
G05233983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
