Home >> Toyota >> 2007 >> Matrix Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - A246E >> Park/ Neutral Position Switch >> Components

Park/ Neutral Position Switch: Components

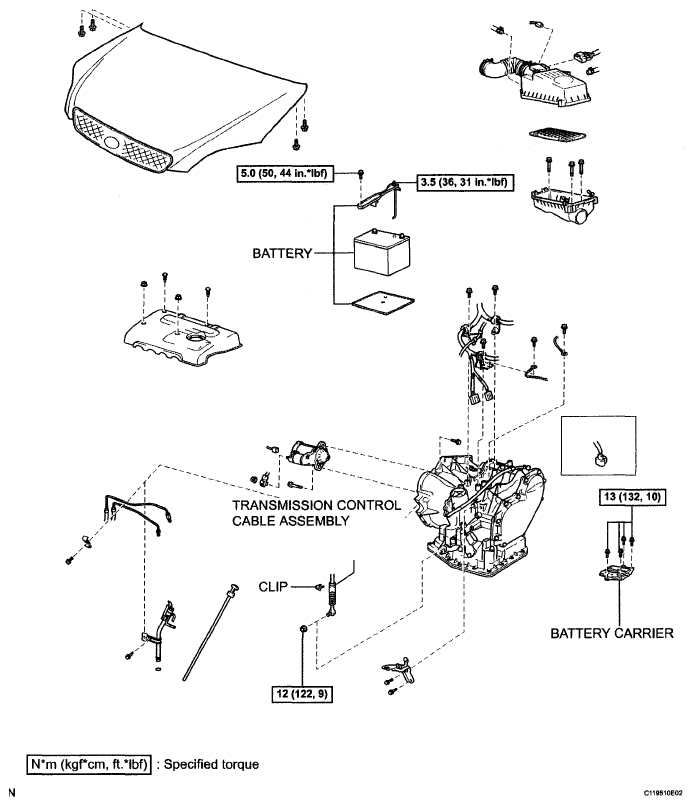

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G05233912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

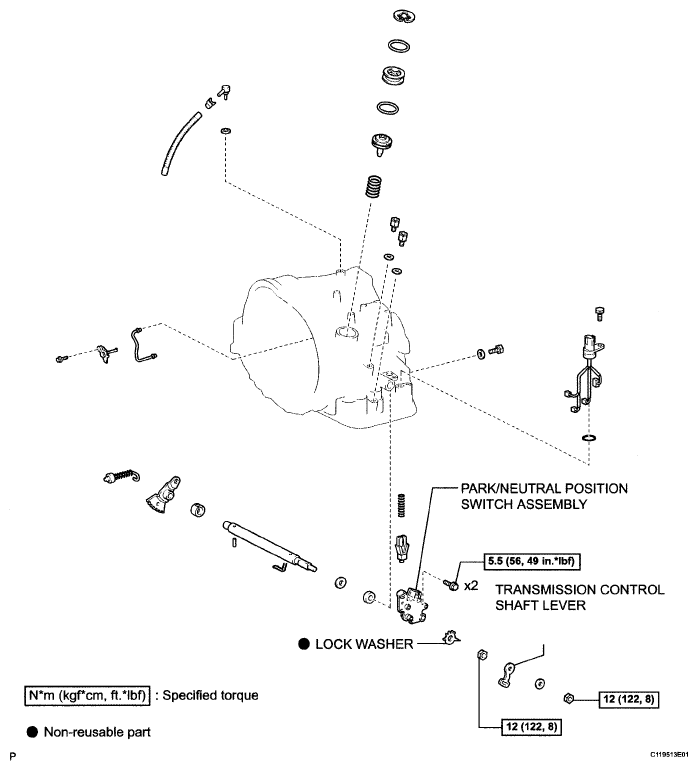

Fig 2: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G05233913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
