Transmission Wire: Components

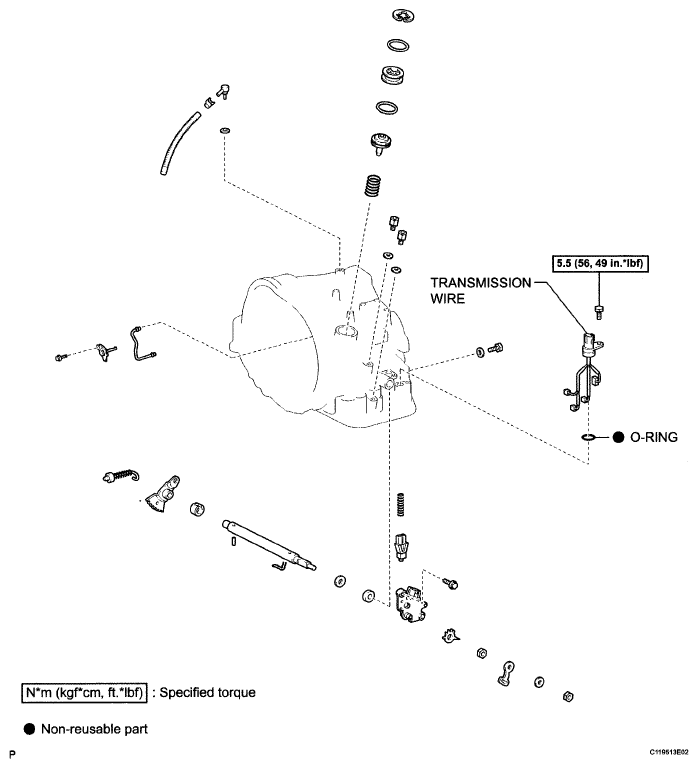

Fig 1: Automatic Transaxle System Replacement Components With Torque Specifications (1 Of 2)
G05233924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

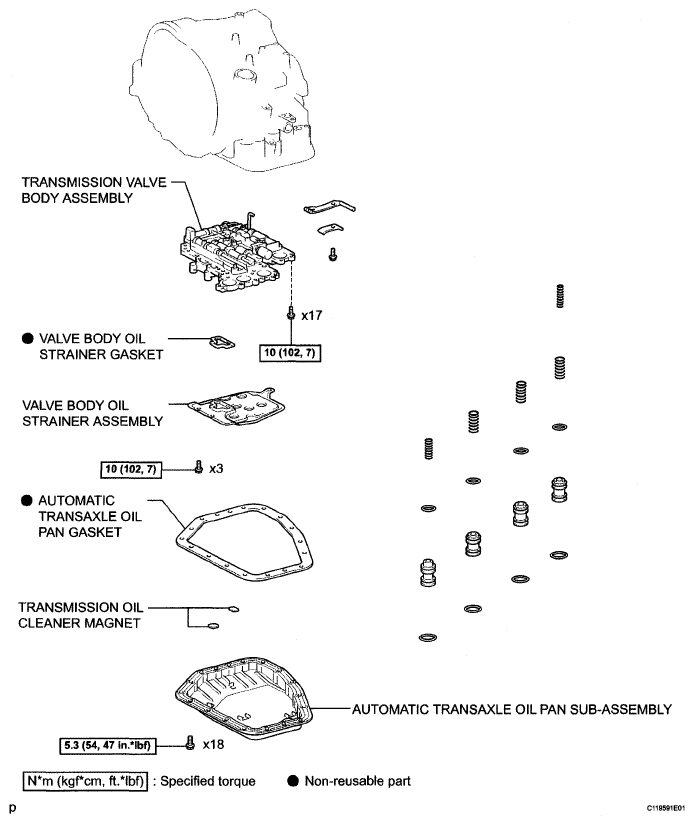

Fig 2: Automatic Transaxle System Replacement Components With Torque Specifications (2 Of 2)
G05233925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
