Multiplex Communication System - CAN Bus: Notes

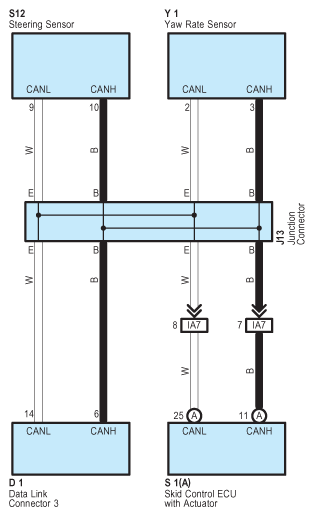

Fig 1: Multiplex Communication System - CAN Bus System Wiring Diagram

G08790377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
