Window Defogger Wire: Repair

  1. REPAIR DEFOGGER WIRE
    1. Clean the broken wire tips with grease, wax and silicone remover.
    2. Place masking tape along both sides of the wire.
    3. Thoroughly mix the repair agent.

      DuPont paste:

      No. 4817 or equivalent

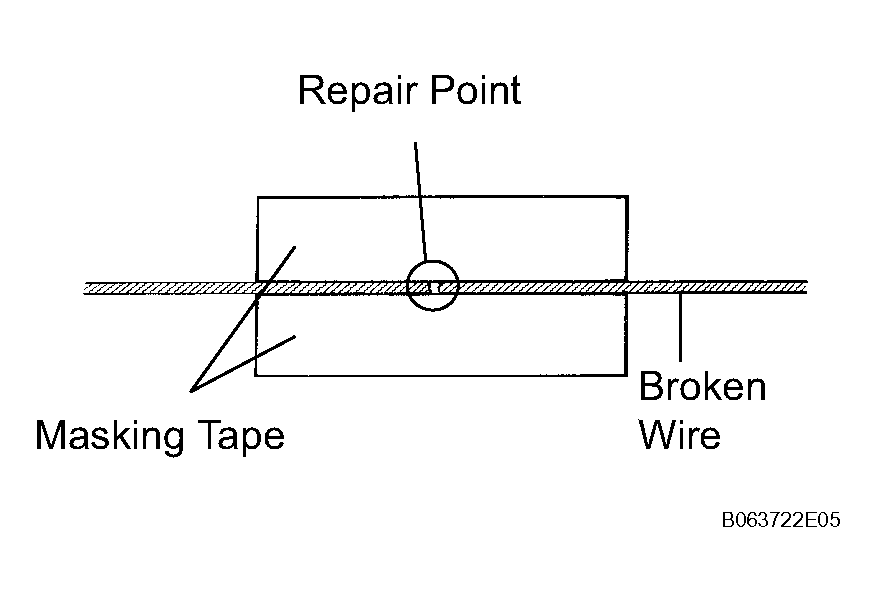

      Fig 1: Placing Masking Tape Along Both Sides Of Wire
      G04476841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a fine tip brush, apply a small amount of the agent to the wire.
    5. After a few minutes, remove the masking tape.
      NOTE: Do not repair the defogger wire again for at least

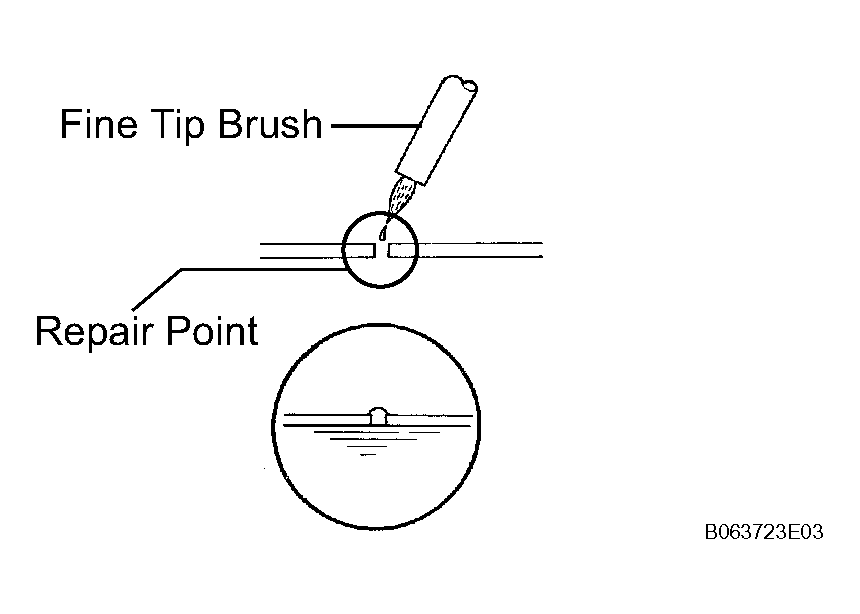

      Fig 2: Applying Small Amount Of Agent To Wire
      G04476842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
