Automatic Light Control: Notes

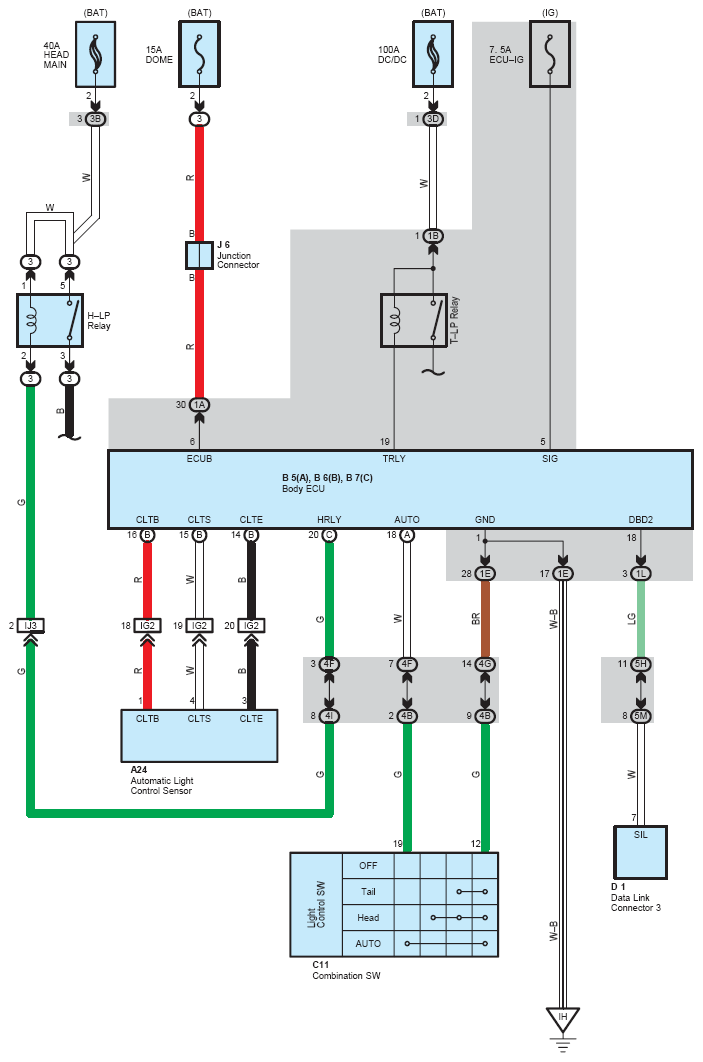

Fig 1: Automatic light control system wiring diagram

G08866053

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
