Back-Up Light: Notes

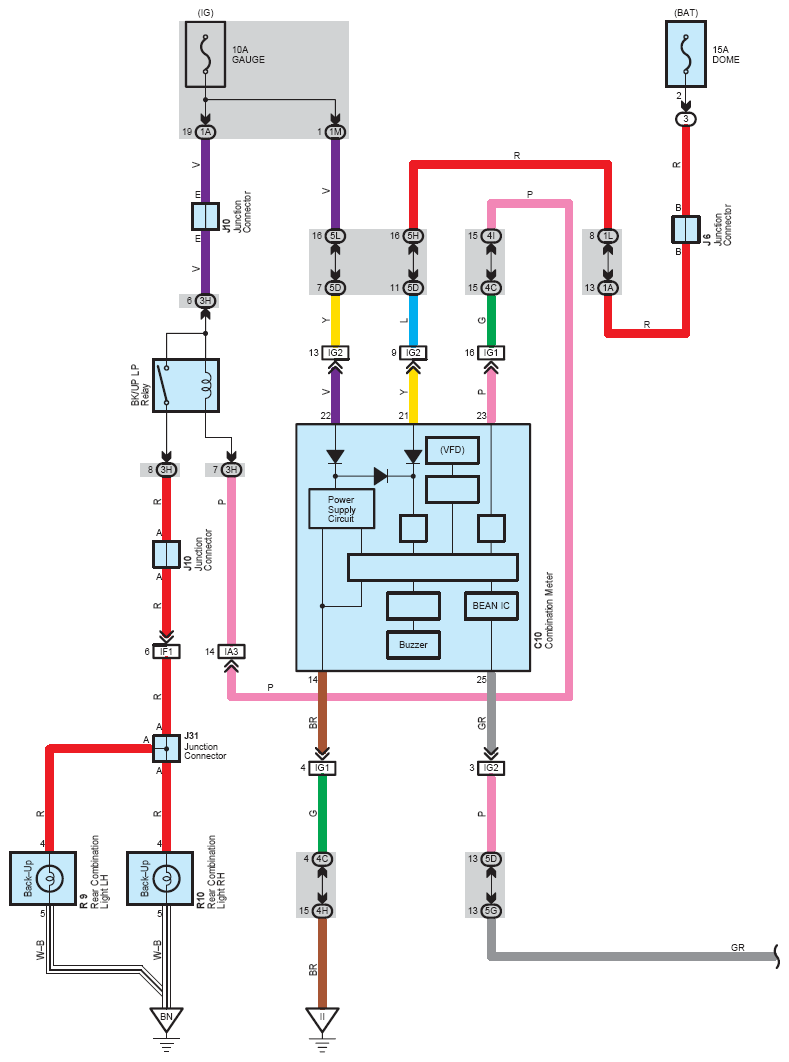

Fig 1: Back-up light system wiring diagram (1 of 2)
G08866069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

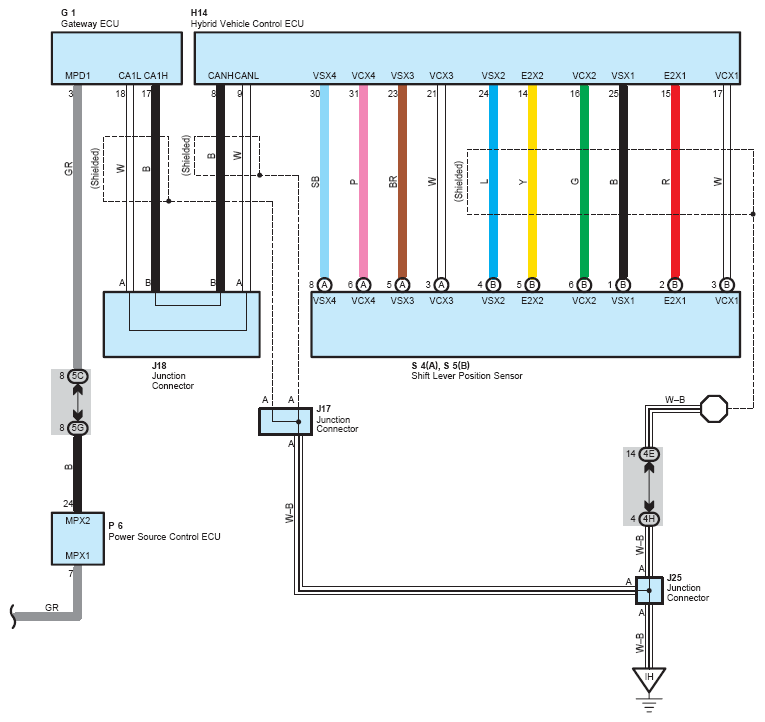

Fig 2: Back-up light system wiring diagram (2 of 2)
G08866070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
