Door Lock Control: Notes

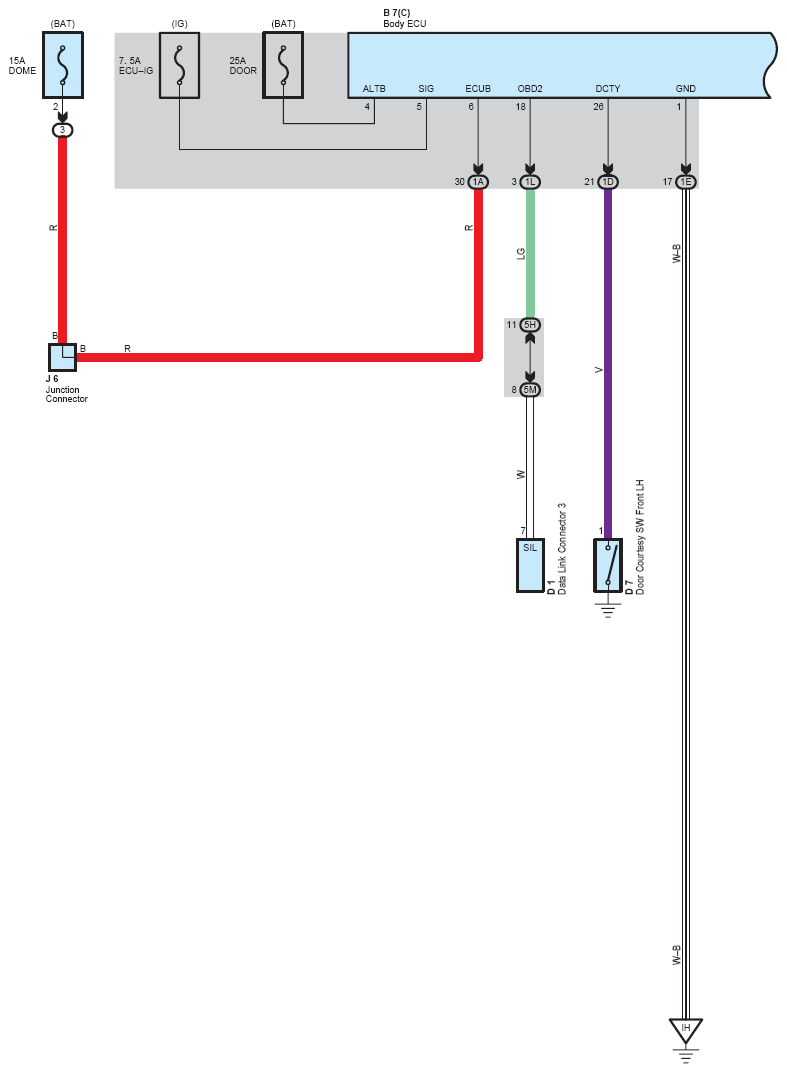

Fig 1: Door lock control system wiring diagram (1 of 4)
G08866078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

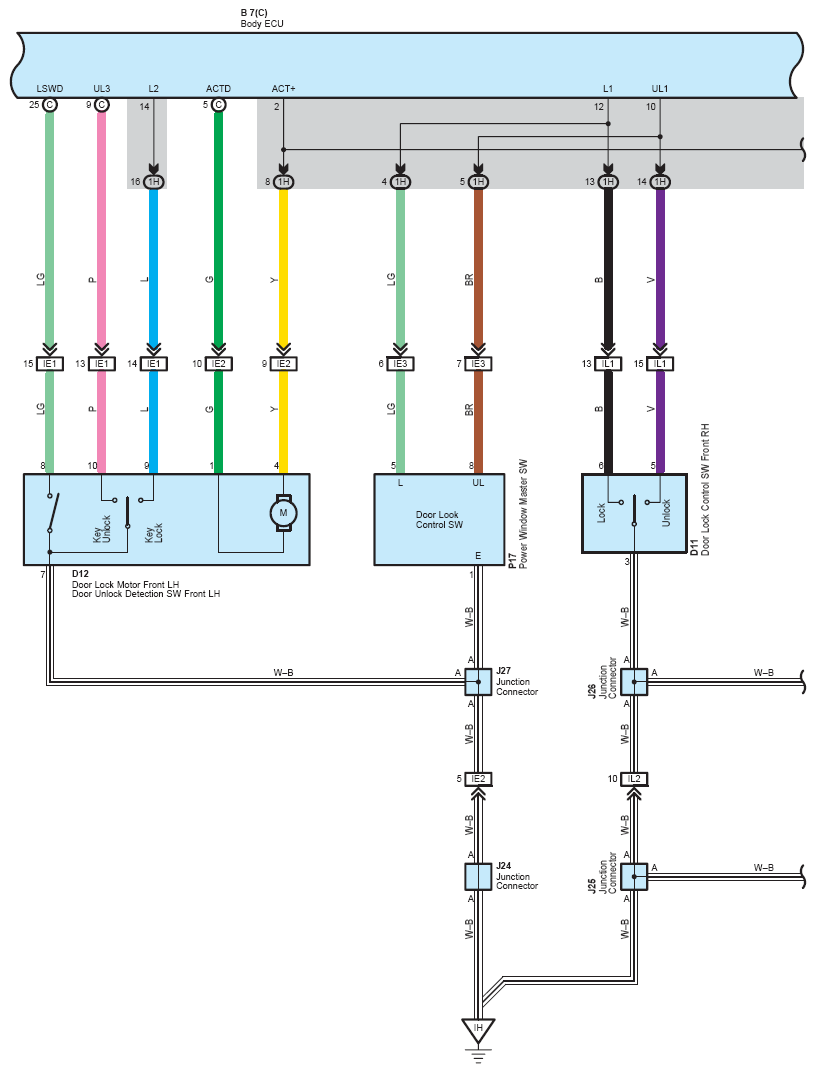

Fig 2: Door lock control system wiring diagram (2 of 4)
G08866079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

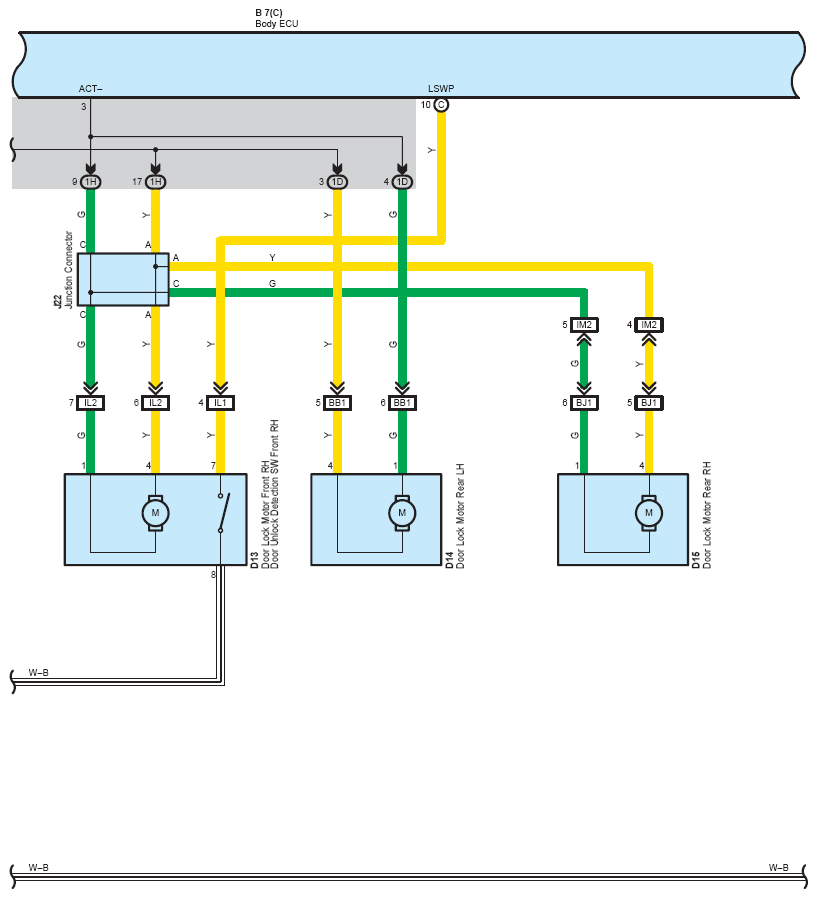

Fig 3: Door lock control system wiring diagram (3 of 4)
G08866080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

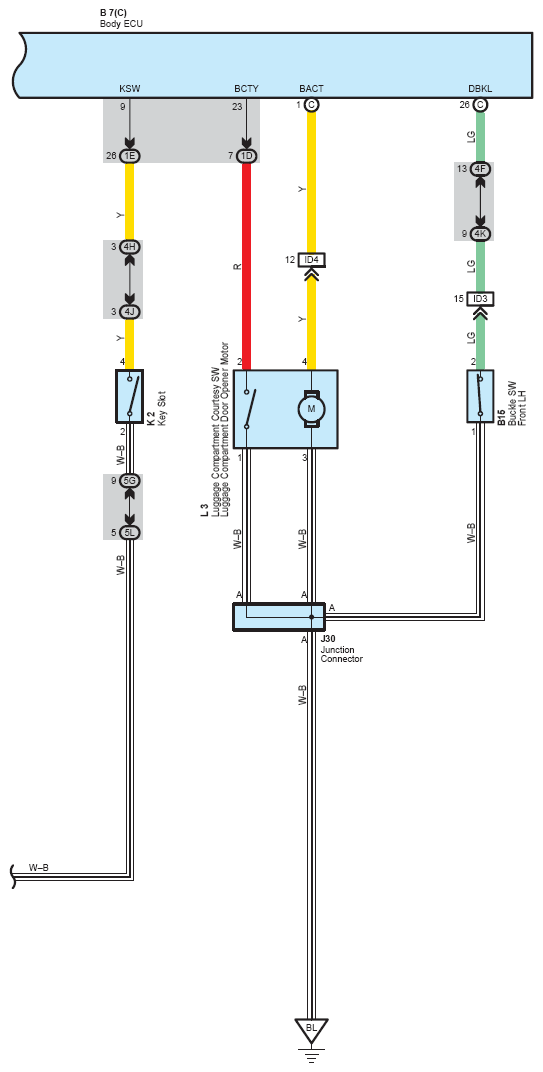

Fig 4: Door lock control system wiring diagram (4 of 4)
G08866081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
