OEM System Circuits: EPS: Notes

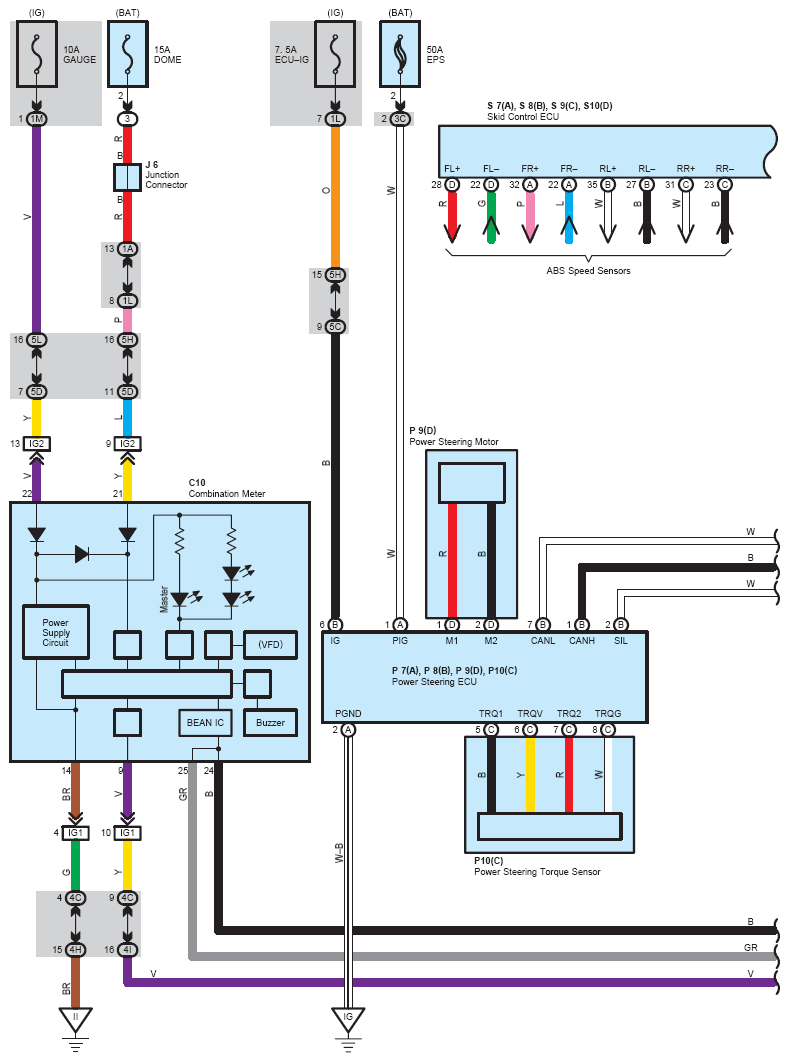

Fig 1: Eps wiring diagram (1 of 4)
G08866129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

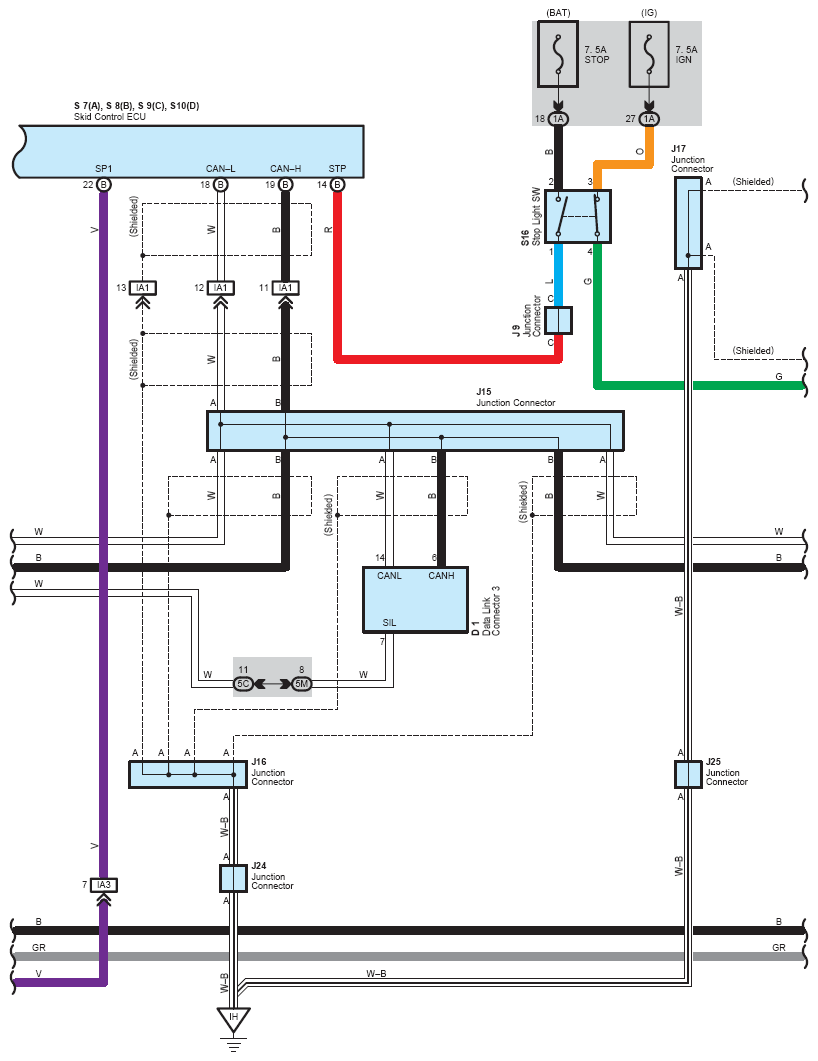

Fig 2: Eps wiring diagram (2 of 4)
G08866130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Eps wiring diagram (3 of 4)
G08866131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

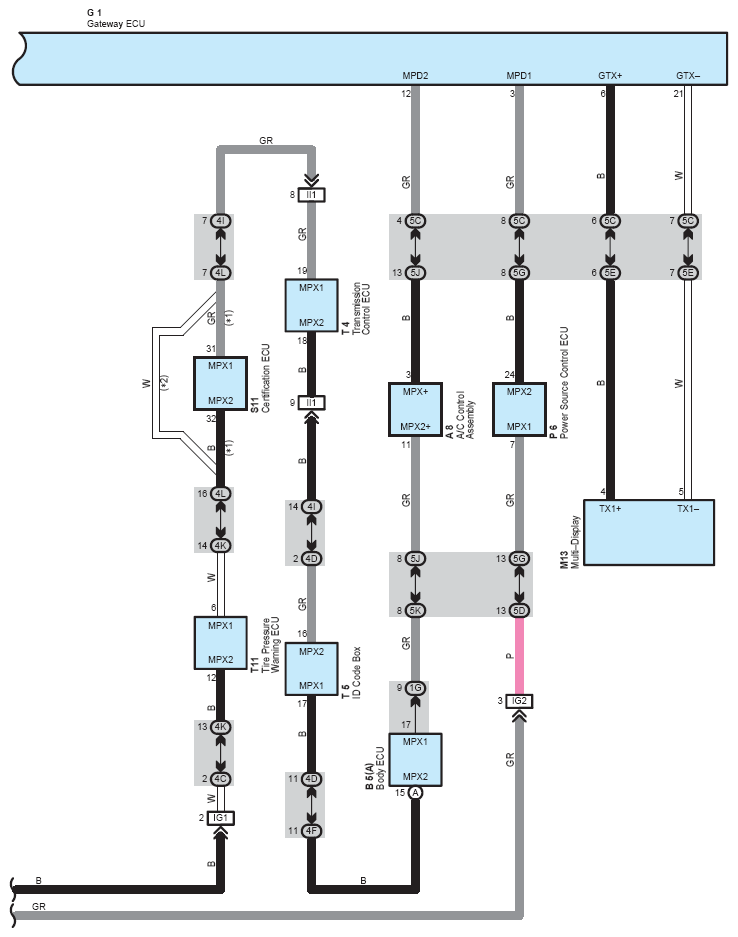

Fig 4: Eps wiring diagram (4 of 4)
G08866132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
