Headlight Beam Level Control: Notes

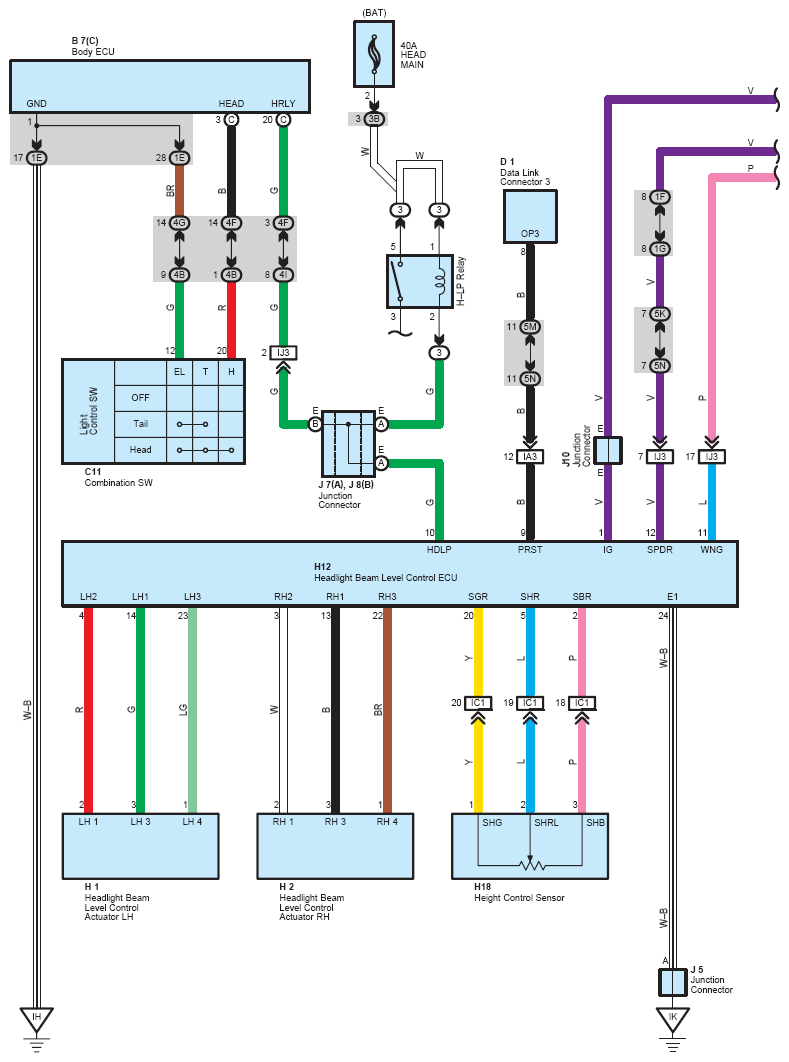

Fig 1: Headlight beam level control system wiring diagram (1 of 2)
G08866051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight beam level control system wiring diagram (2 of 2)
G08866052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
