OEM System Circuits: Headlight: Notes

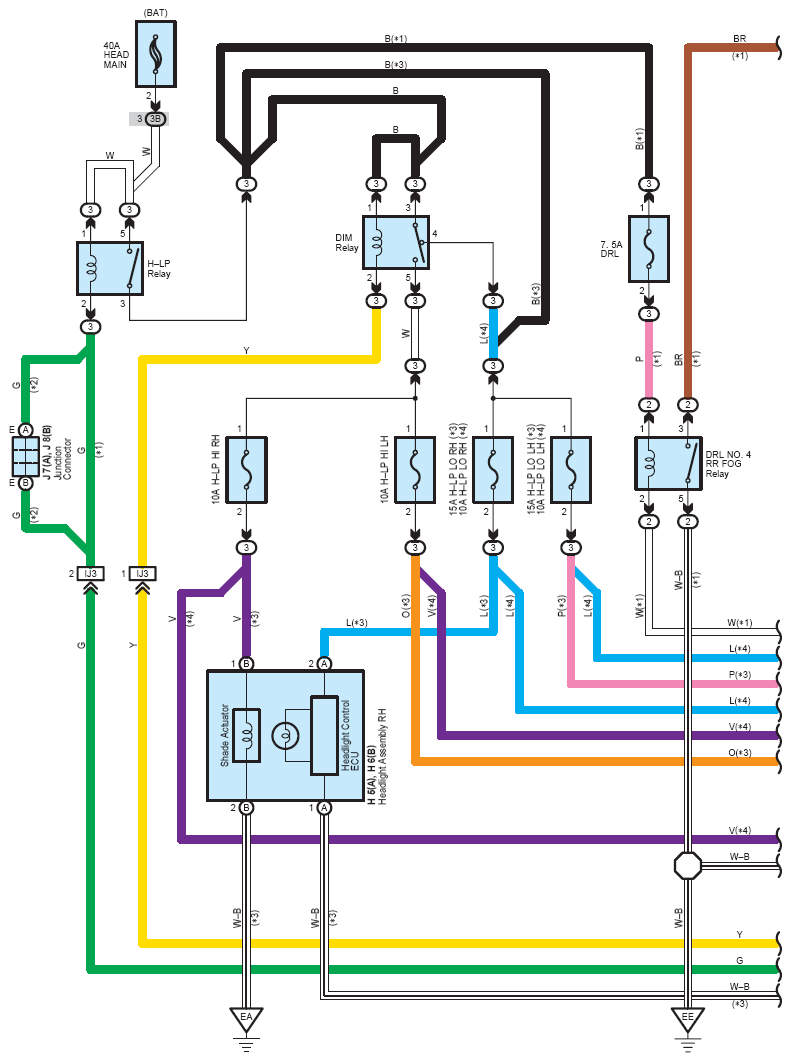

Fig 1: Headlight system wiring diagram (1 of 5)
G08866046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

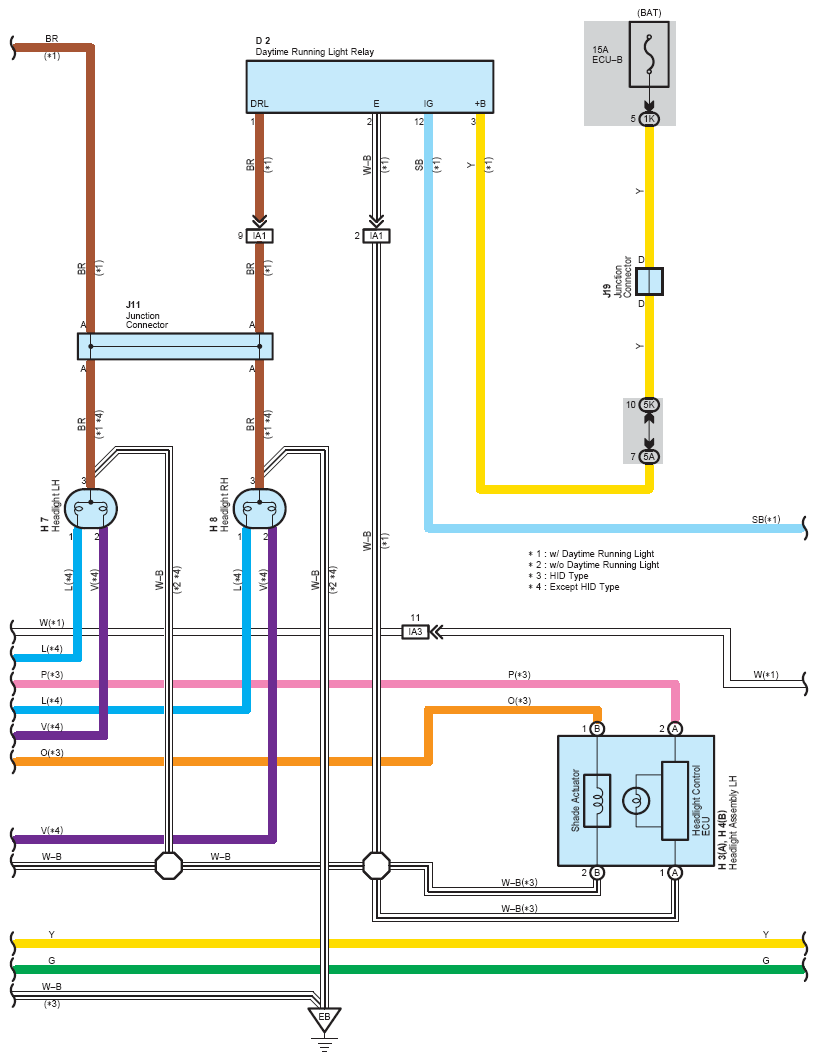

Fig 2: Headlight system wiring diagram (2 of 5)
G08866047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

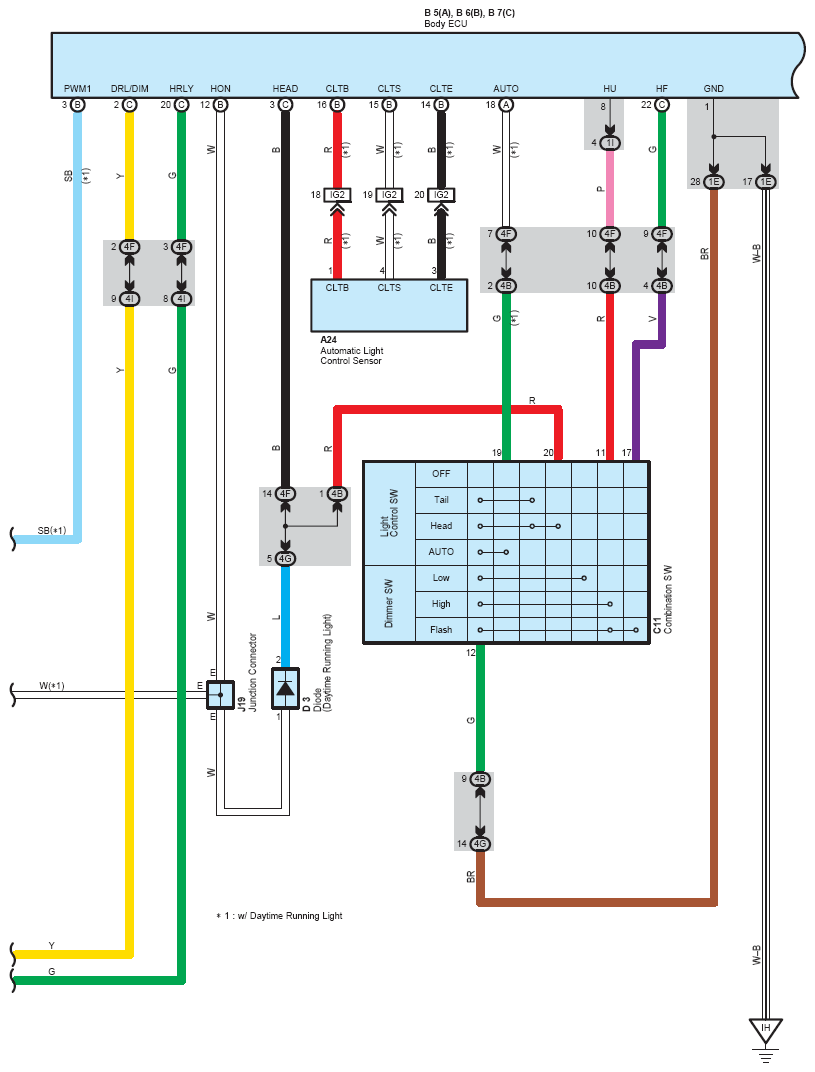

Fig 3: Headlight system wiring diagram (3 of 5)
G08866048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Headlight system wiring diagram (4 of 5)
G08866049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Headlight system wiring diagram (5 of 5)
G08866050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
