OEM System Circuits
>>
Interior Light
>>
Notes
Interior Light: Notes

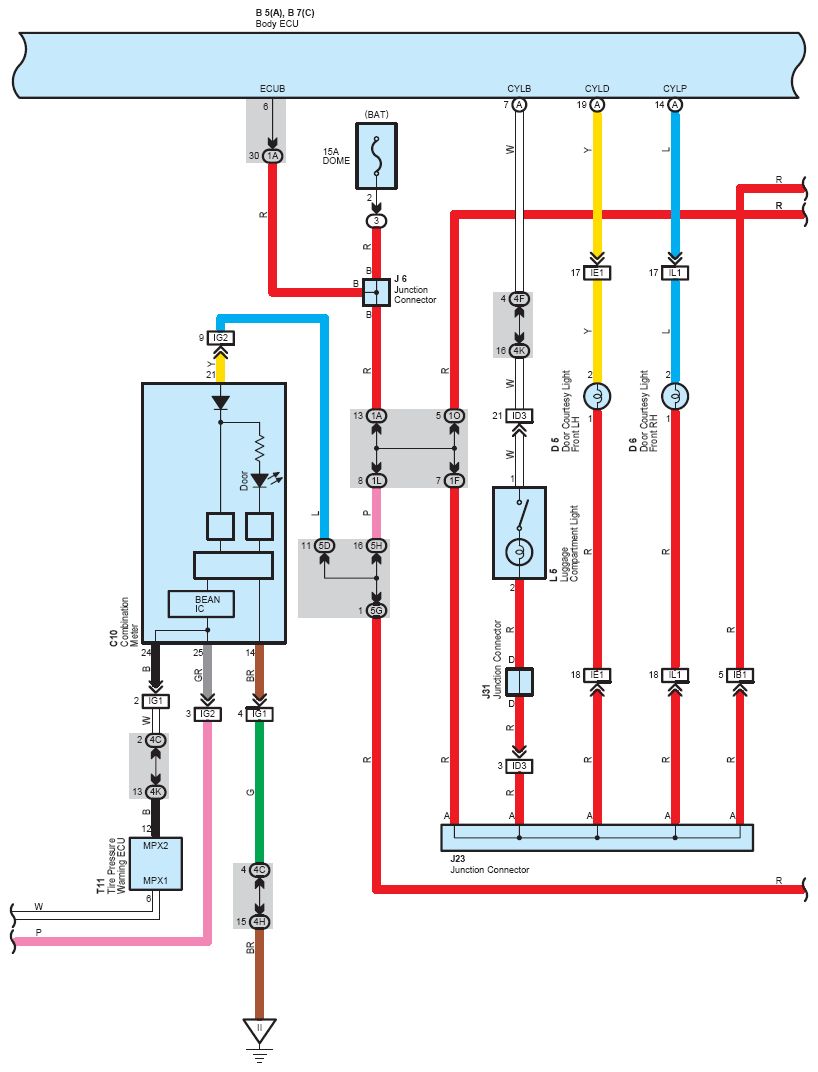

Fig 1: Interior light system wiring diagram (1 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

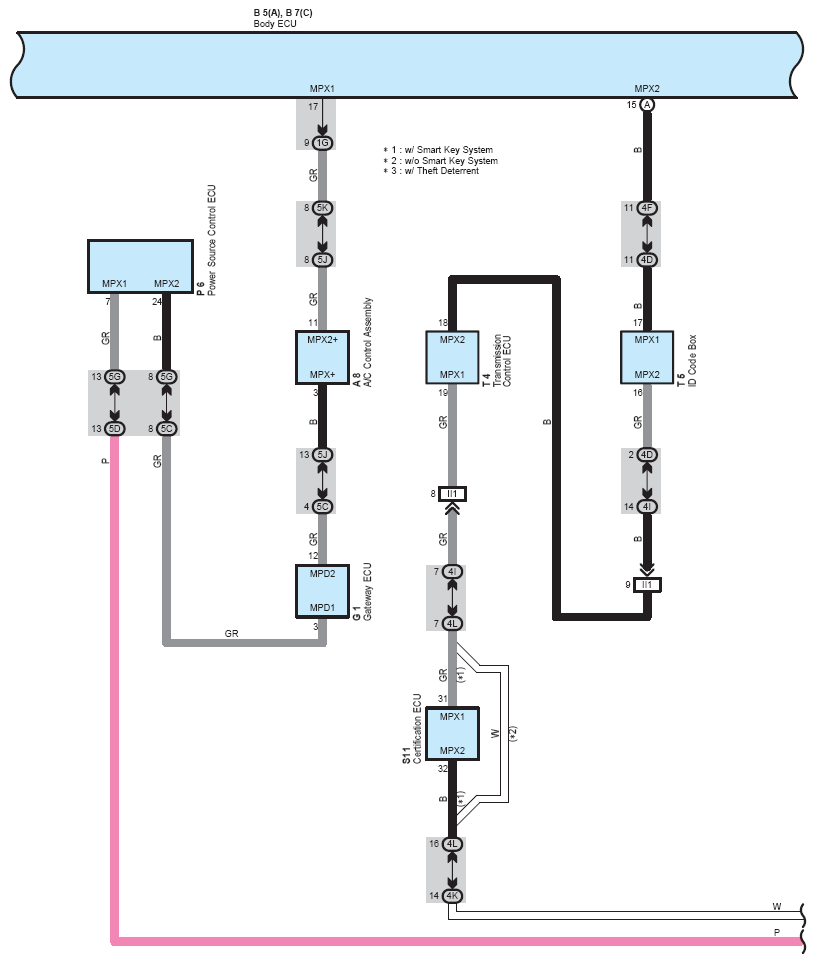

Fig 2: Interior light system wiring diagram (2 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

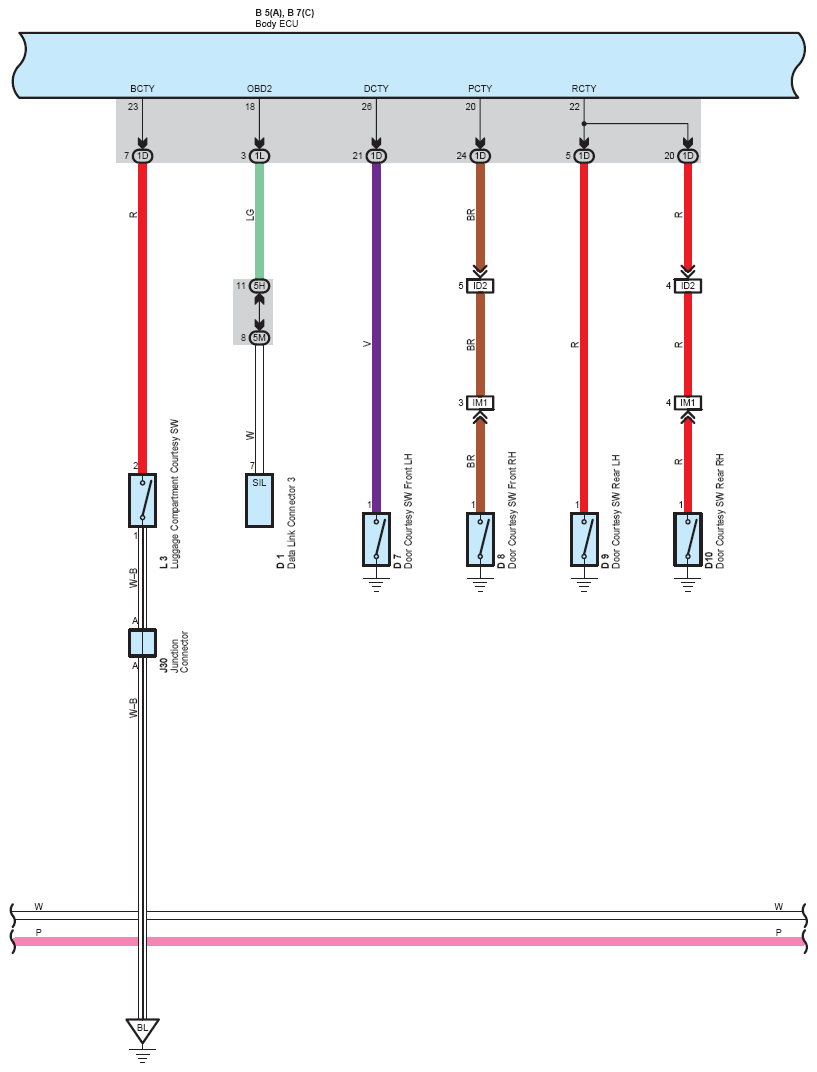

Fig 3: Interior light system wiring diagram (3 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

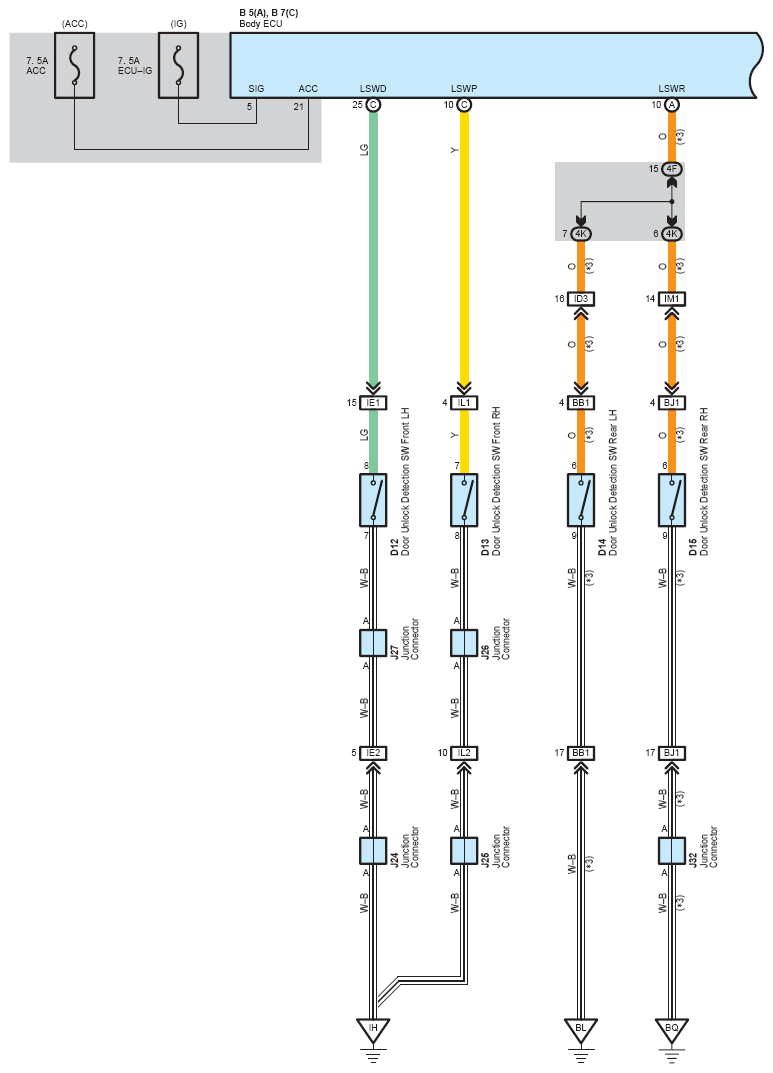

Fig 4: Interior light system wiring diagram (4 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

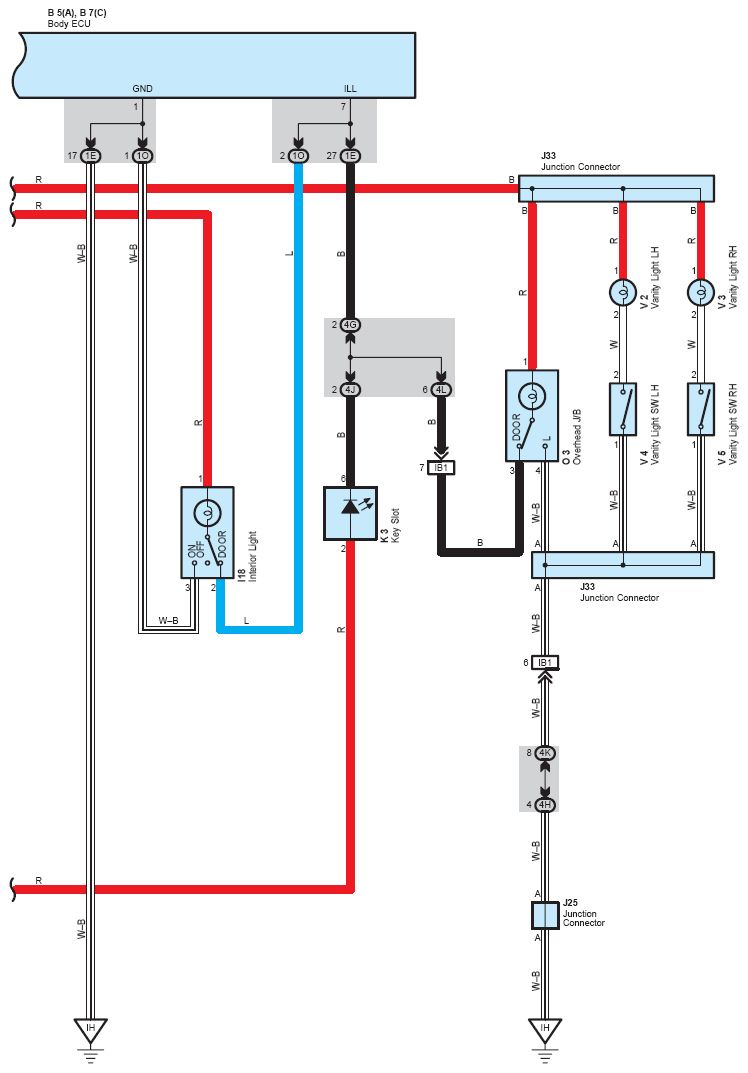

Fig 5: Interior light system wiring diagram (5 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
