Multi-Display And Audio System For Built-In Amplifier: Notes

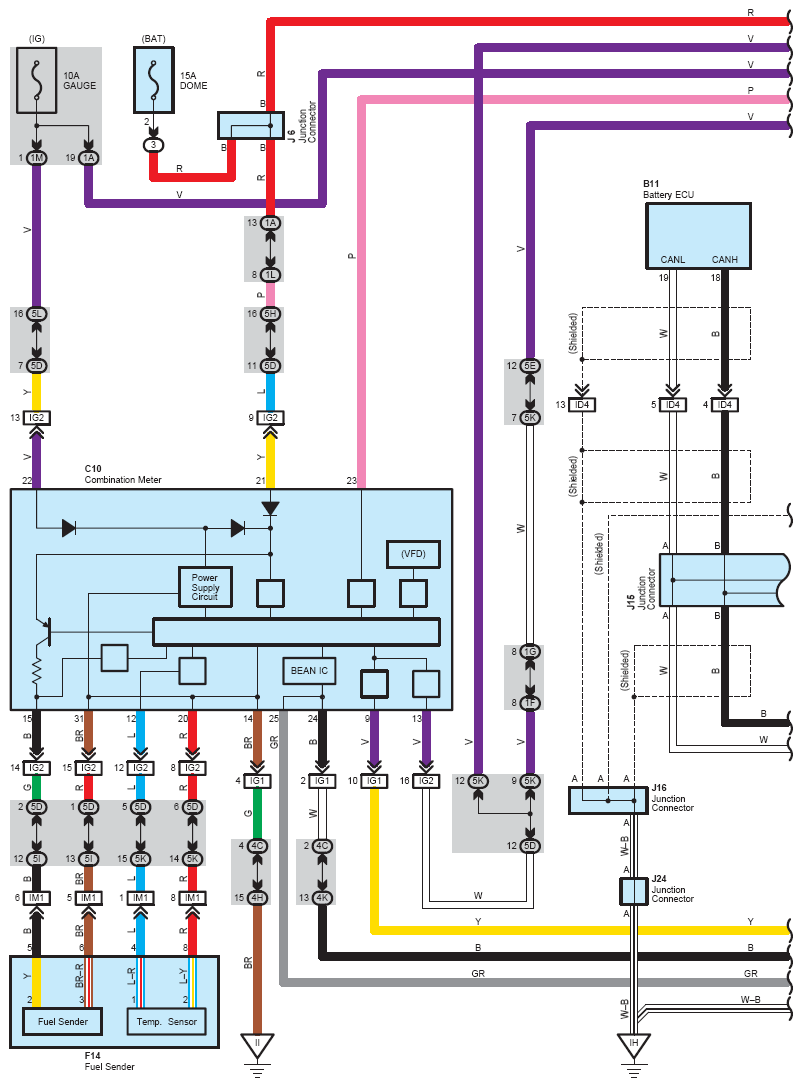

Fig 1: Multi-display and audio system for built-in amplifier system wiring diagram (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

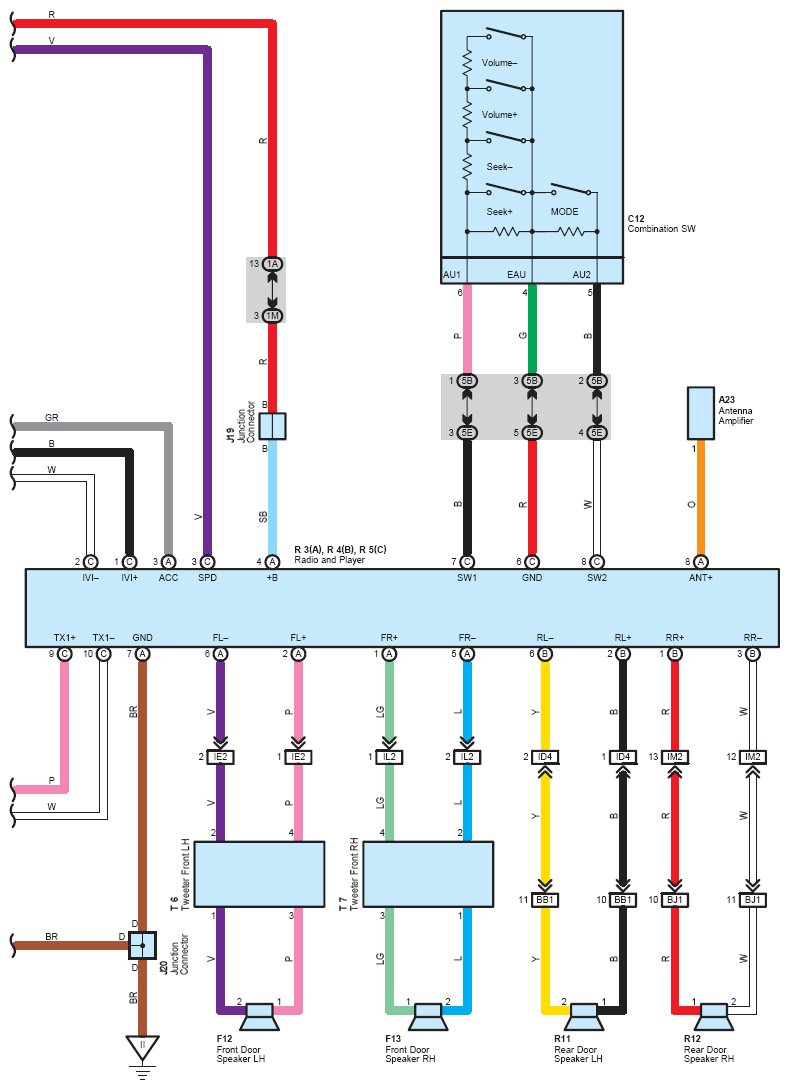

Fig 2: Multi-display and audio system for built-in amplifier system wiring diagram (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

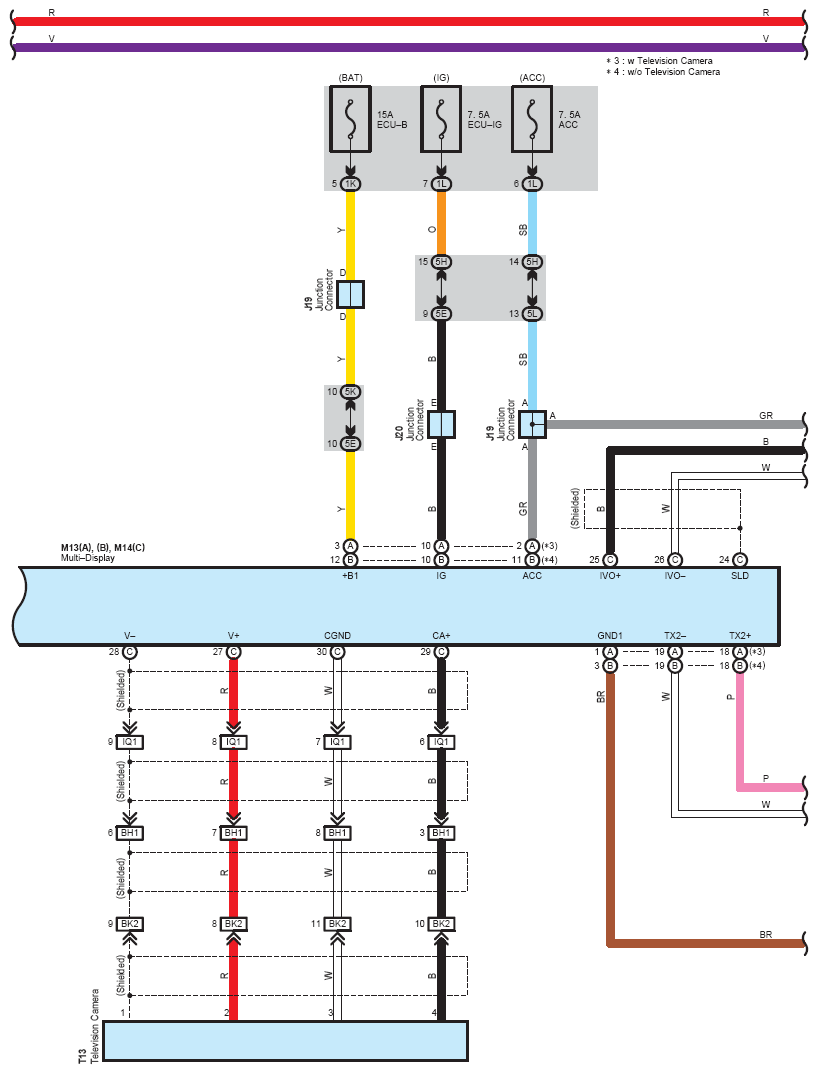

Fig 3: Multi-display and audio system for built-in amplifier system wiring diagram (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

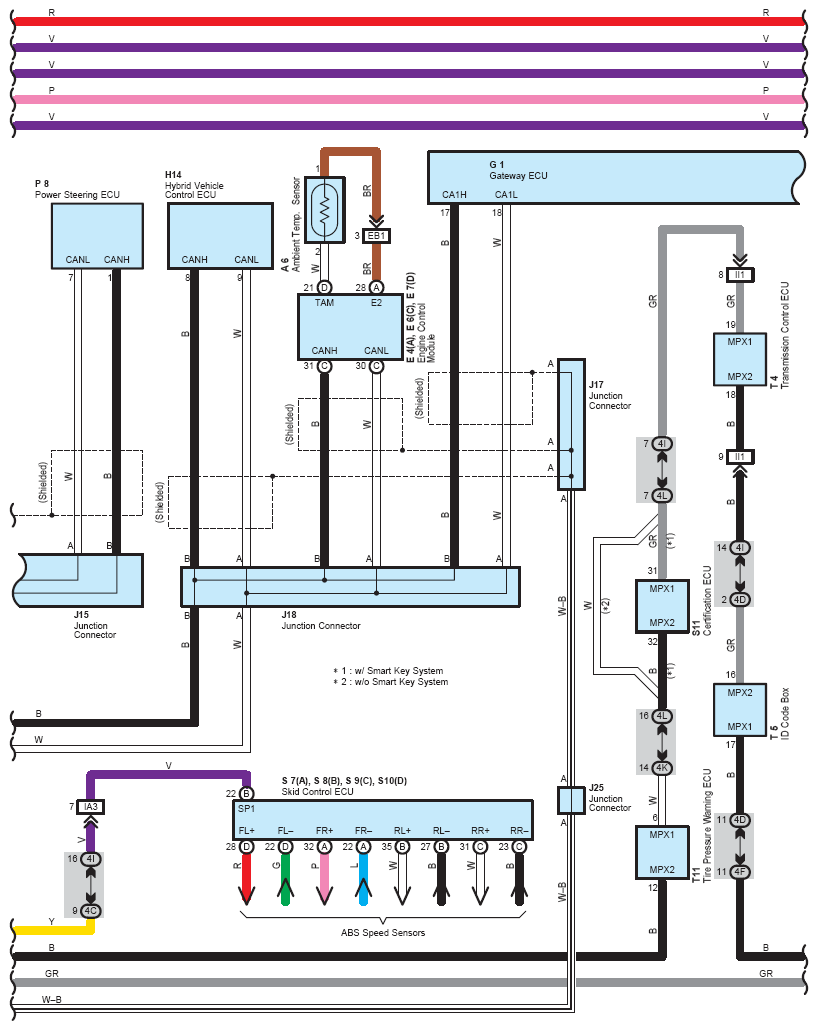

Fig 4: Multi-display and audio system for built-in amplifier system wiring diagram (4 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

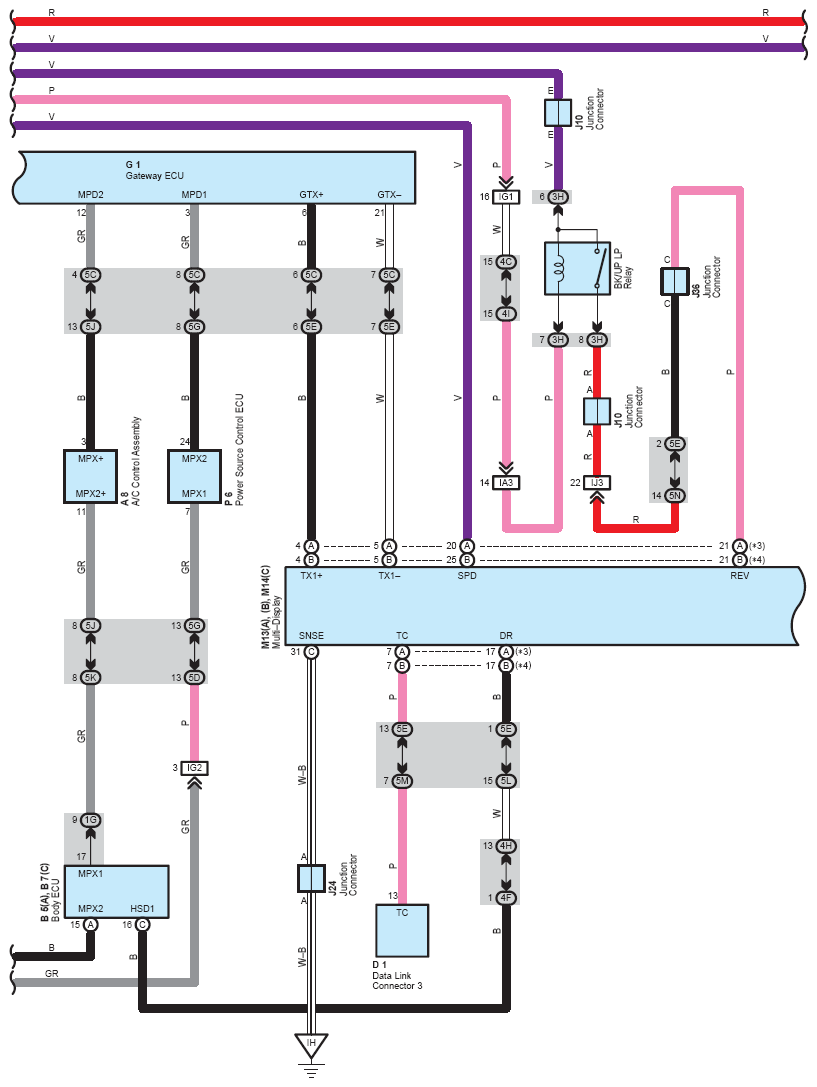

Fig 5: Multi-display and audio system for built-in amplifier system wiring diagram (5 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
