Instrument Panel Safety Pad: Components

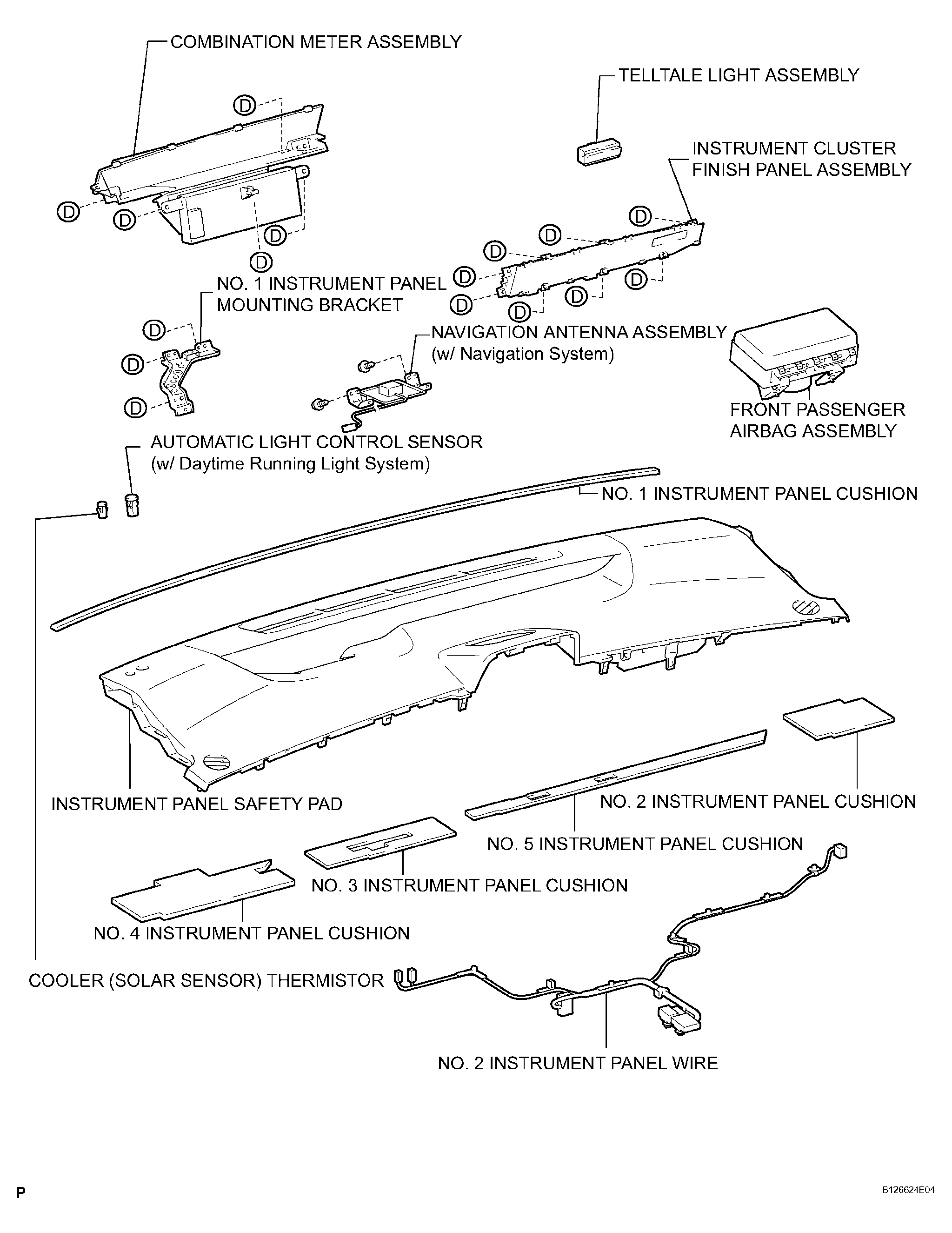

Fig 1: Identifying Instrument Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

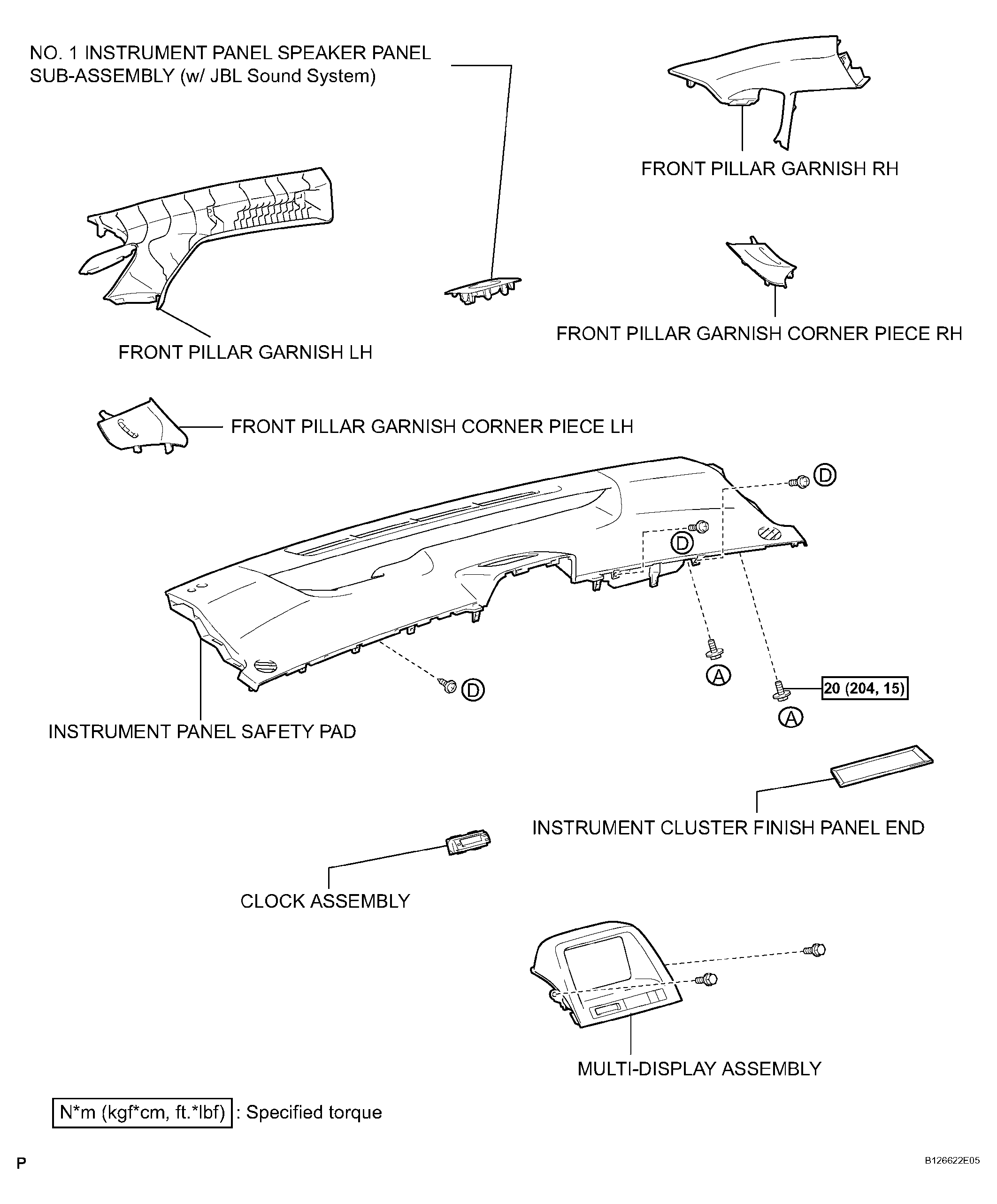

Fig 2: Identifying Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

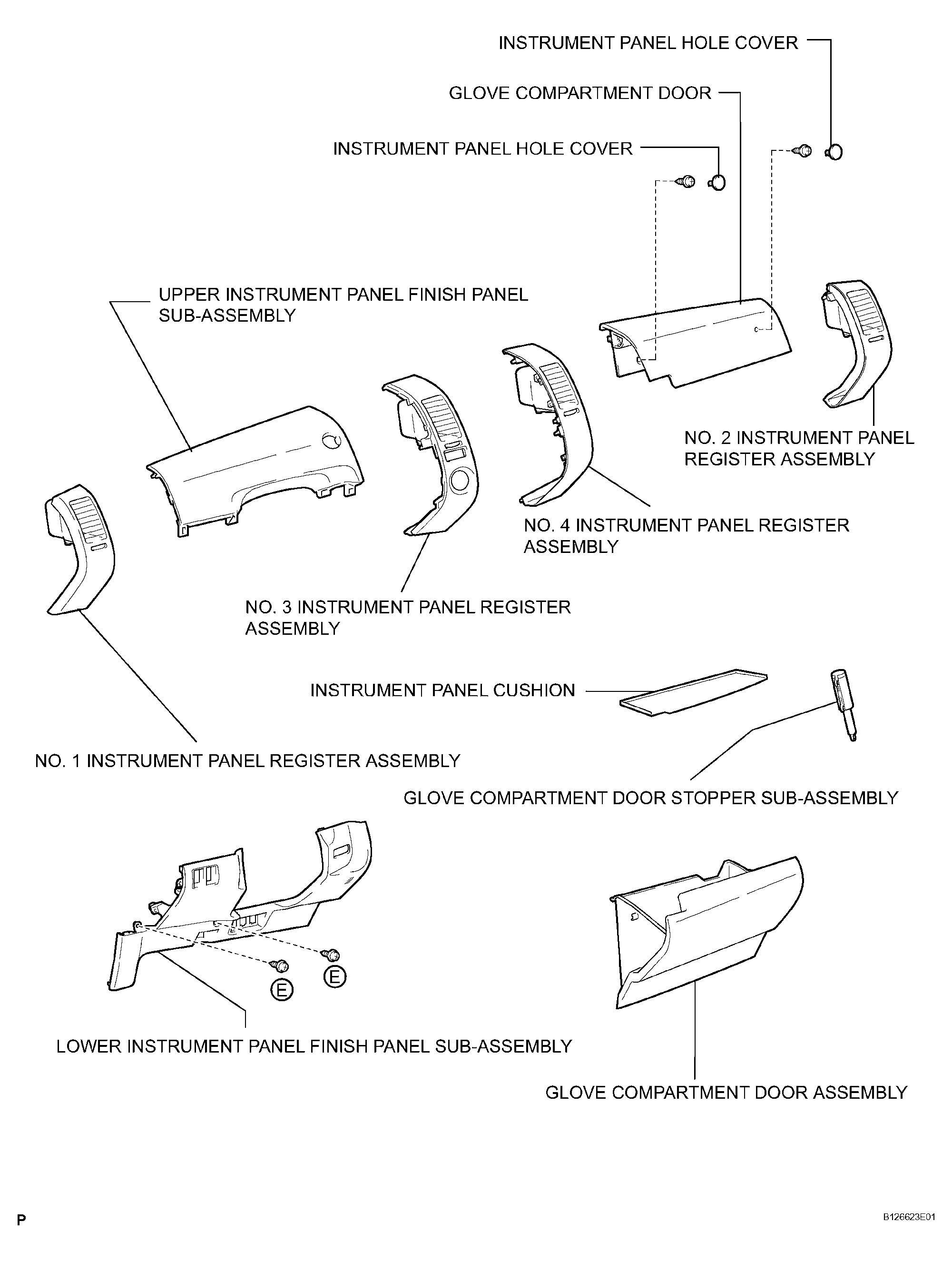

Fig 3: Identifying Instrument Panel Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
