Rear Console Box: Installation

INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
1. Install the console box with the 2 screws and 2 bolts.

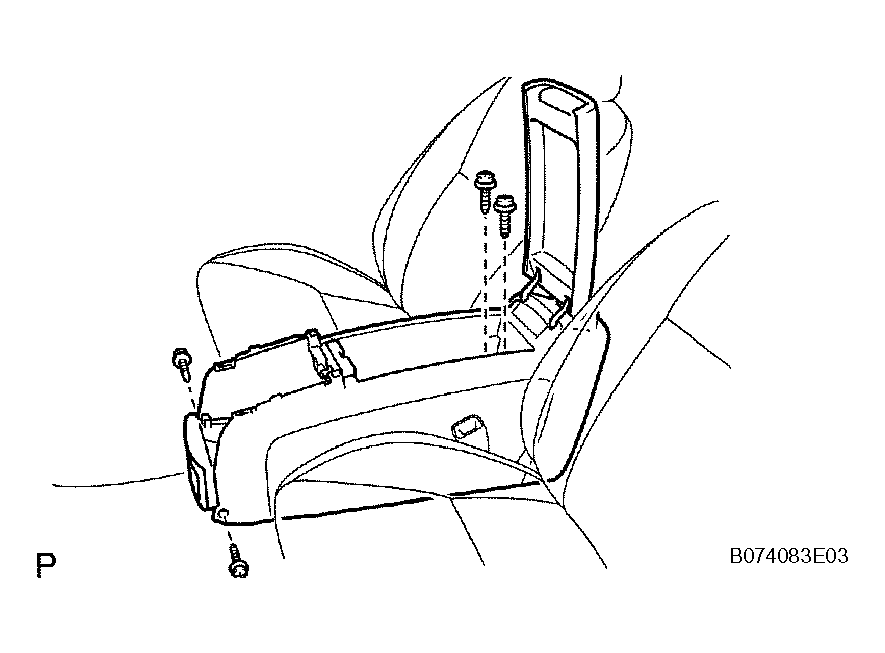

  Fig 1: Installing Console Box With Screws And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE REAR END PANEL SUBASSEMBLY
1. Install the rear console box cup holder with the 4 screws.

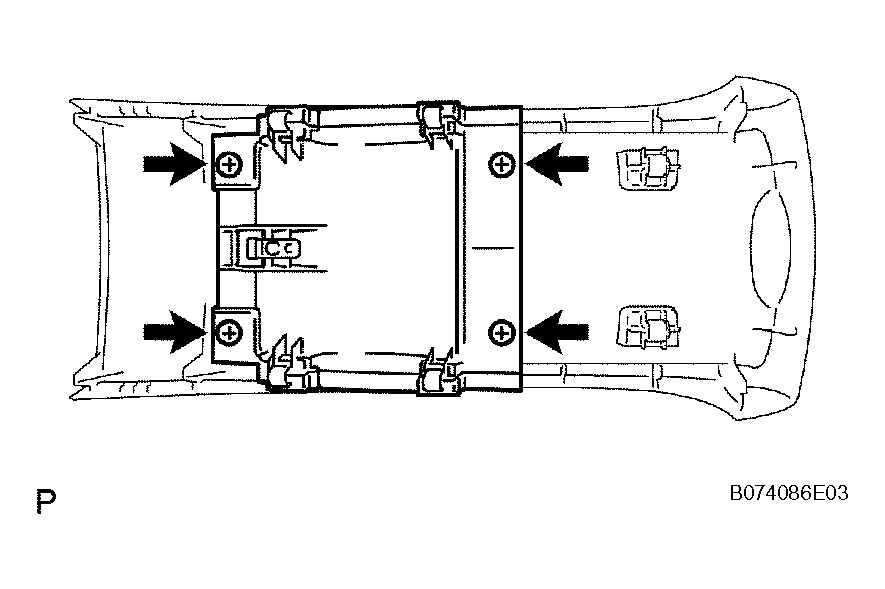

  Fig 2: Installing Rear Console Box Cup Holder With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 6 clips to install the console rear end panel.

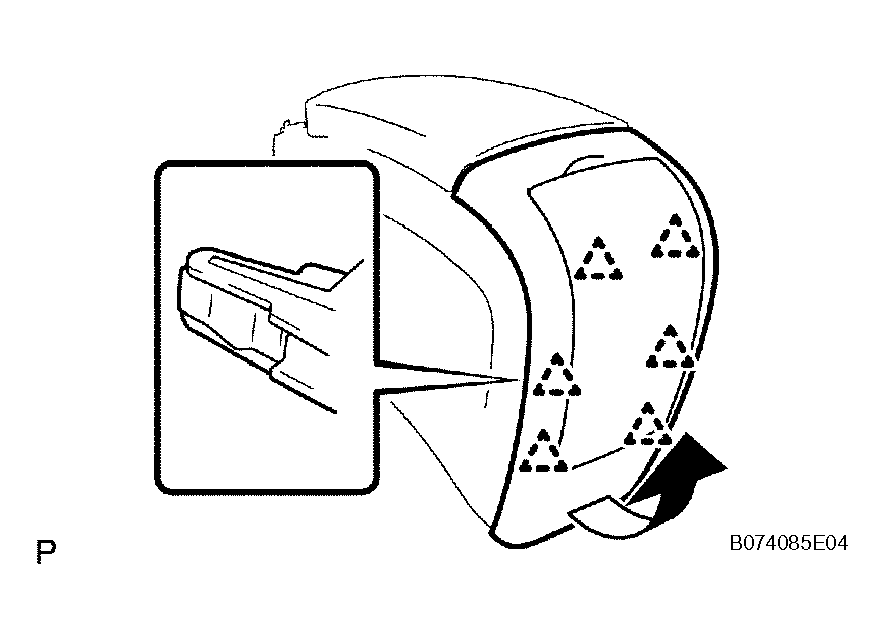

  Fig 3: Attaching Clips To Install Console Rear End Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX CARPET
INSTALL CONSOLE BOX POCKET
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
1. Install the instrument panel cup holder with the 4 screws.

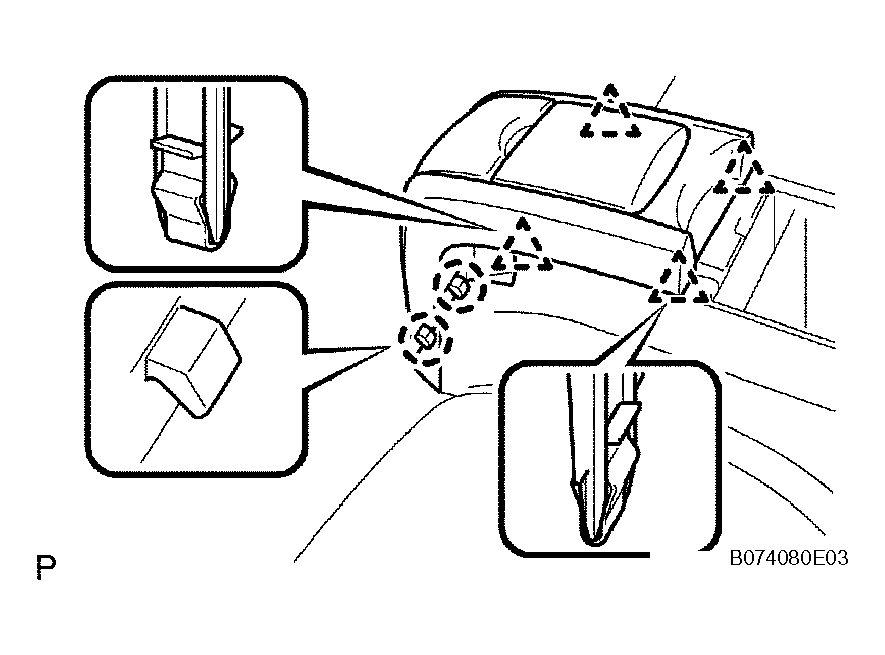

  Fig 4: Installing Instrument Panel Cup Holder With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 4 clips and 2 claws to install the console panel.

  Fig 5: Attaching Clips And Claws To Install Console Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
