Rear Console Box: Reassembly

  1. INSTALL REAR CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Install the console compartment door with the 4 screws.

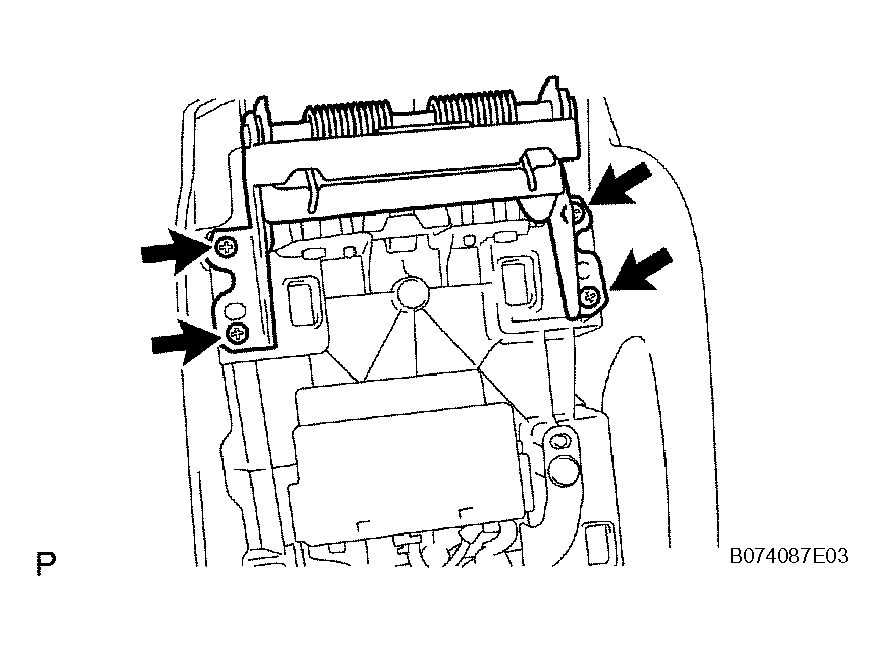

      2. Fig 1: Installing Console Compartment Door With Screws
      G04476935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR POWER POINT SOCKET COVER
  3. INSTALL REAR POWER POINT SOCKET ASSEMBLY
  4. INSTALL NO. 4 INSTRUMENT PANEL WIRE
