Home >> Toyota >> 2007 >> Prius Base >> Repair and Diagnosis >> Electrical >> Gauges >> Meter >> Combination Meter >> Reassembly

Combination Meter: Reassembly

  1. INSTALL COMBINATION METER CASE
  2. INSTALL NO. 4 METER CIRCUIT PLATE
    NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

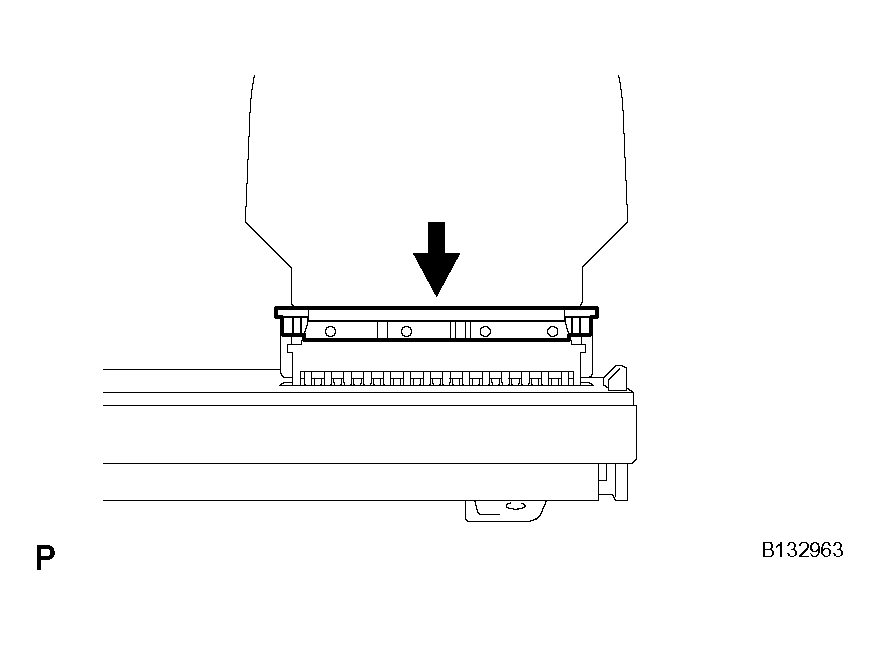

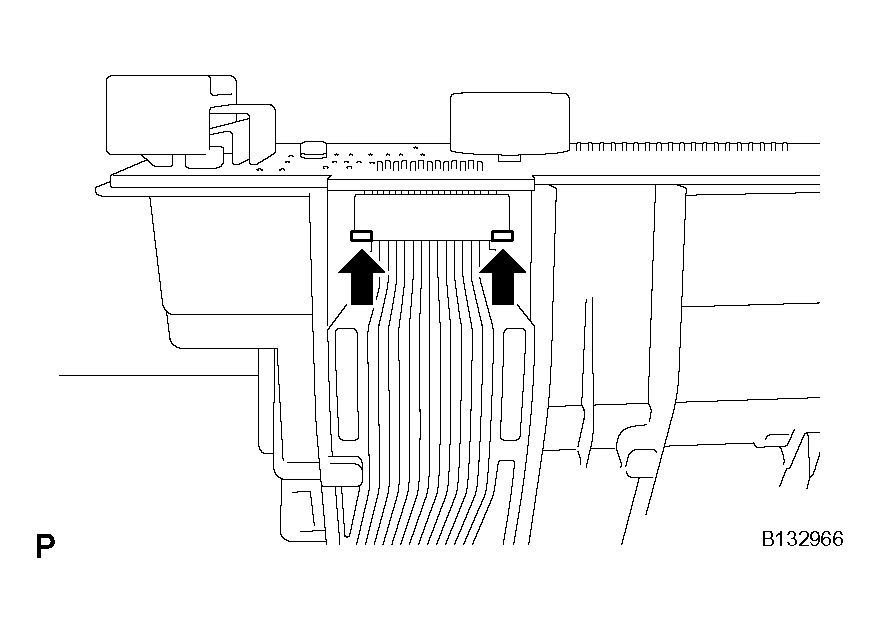

    1. Push the connector lock in the direction indicated by the arrow in Fig 1, and install the meter circuit plate.
      Fig 1: Pushing Connector Lock
      G04476235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 METER CIRCUIT PLATE
    NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

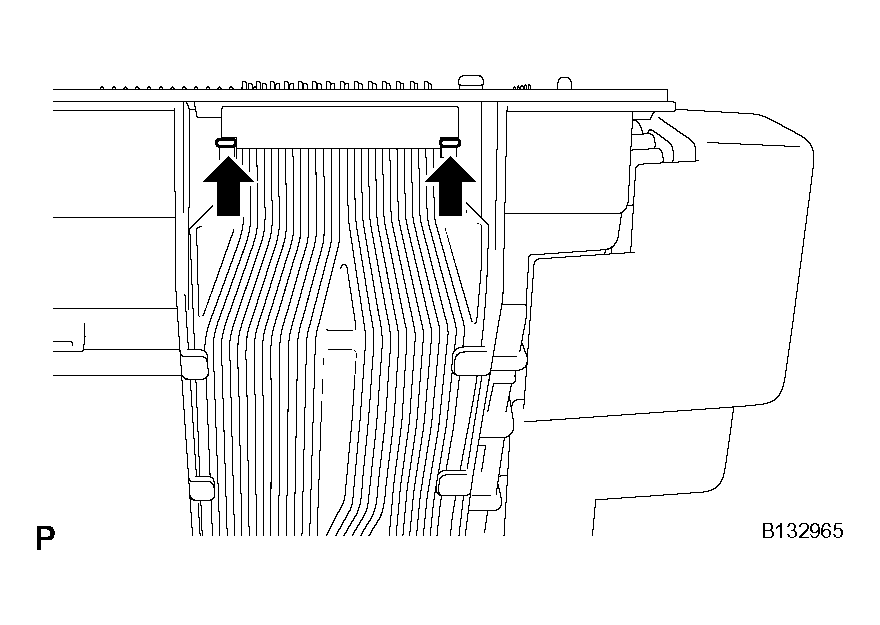

    1. Push the connector lock in the direction indicated by the arrow in Fig 2, and install the meter circuit plate.
      Fig 2: Pushing Connector Lock
      G04476236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

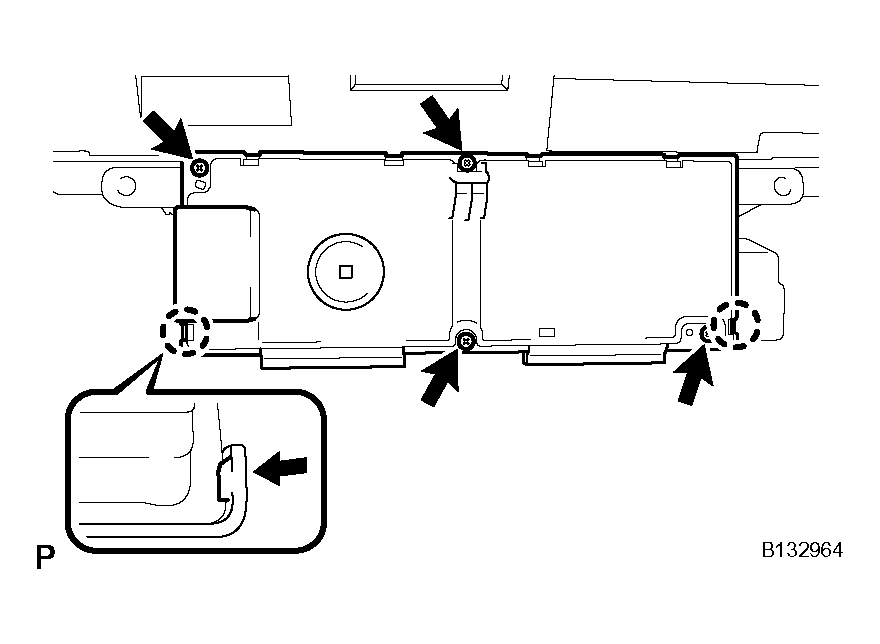

  4. INSTALL NO. 3 COMBINATION METER COVER
    1. Attach the 2 claws to install the combination meter cover.
    2. Install the 4 screws.
      Fig 3: Installing No. 3 Combination Meter Cover
      G04476237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 COMBINATION METER REFLECTOR

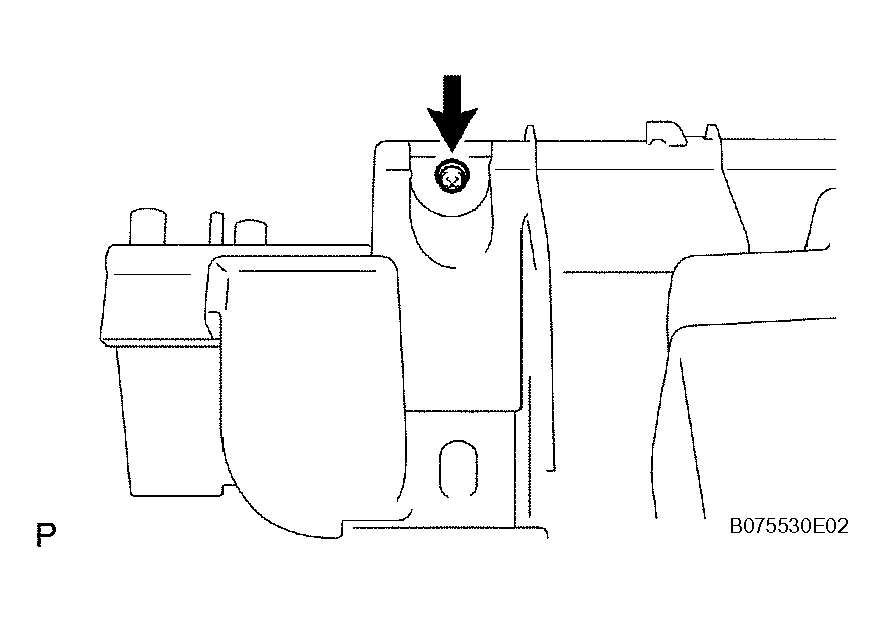

    1. Install the combination reflector with the screw.
      Fig 4: Installing No. 1 Combination Reflector With Screw
      G04476238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

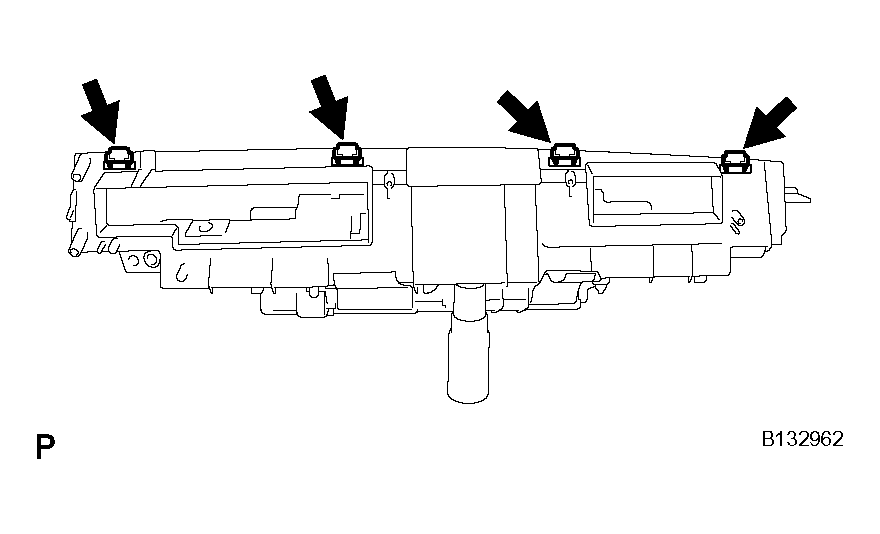

    2. Install the 4 clips.
      Fig 5: Installing Clips
      G04476239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 3 COMBINATION METER CASE
  7. INSTALL NO. 2 METER CIRCUIT PLATE
    NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

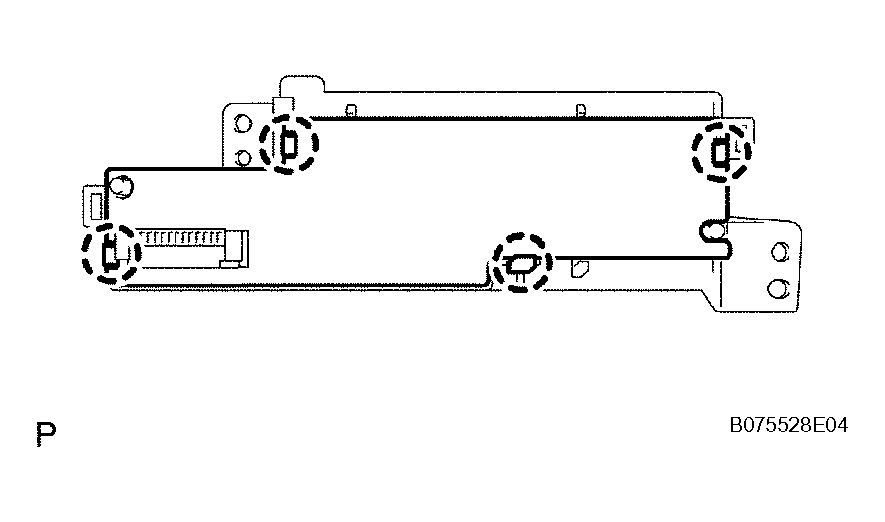

    1. Attach the 4 claws to install the meter circuit plate.
      Fig 6: Attaching Meter Circuit Plate Claws
      G04476240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

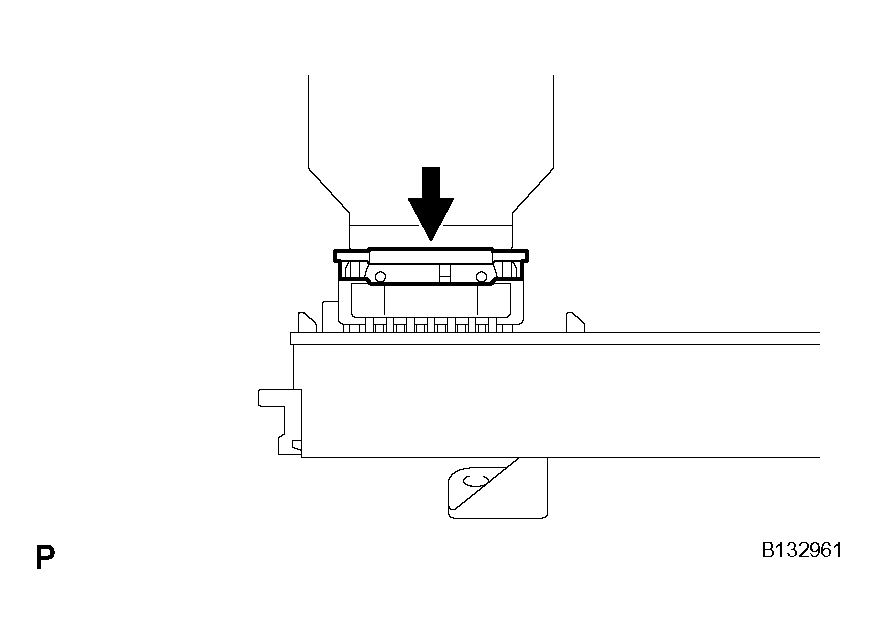

    2. Push the connector lock in the direction indicated by the arrow in Fig 7 and install the No. 4 meter circuit plate from the No. 2 meter circuit plate.
      Fig 7: Pushing Connector Lock
      G04476241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 COMBINATION METER COVER
    NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

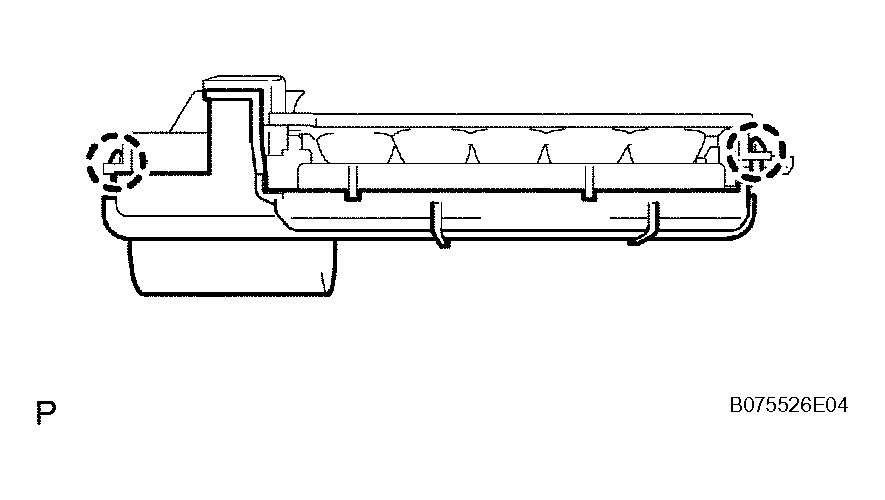

    1. Attach the 2 claws to install the combination meter cover.
      Fig 8: Attaching Combination Meter Cover Claws
      G04476242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

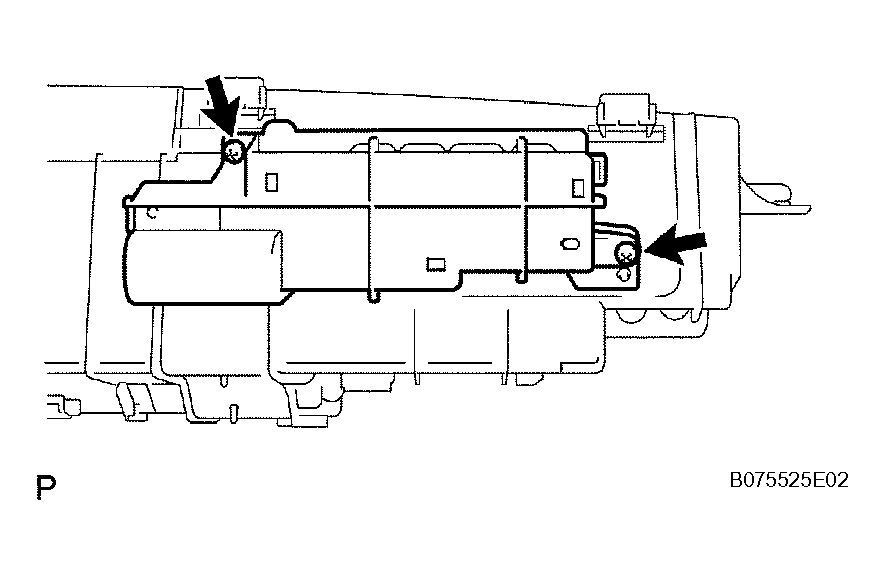

    2. Install the 2 screws.
      Fig 9: Installing No. 2 Combination Meter Case With Screw
      G04476243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 COMBINATION METER CASE
  10. INSTALL METER CIRCUIT PLATE
    NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

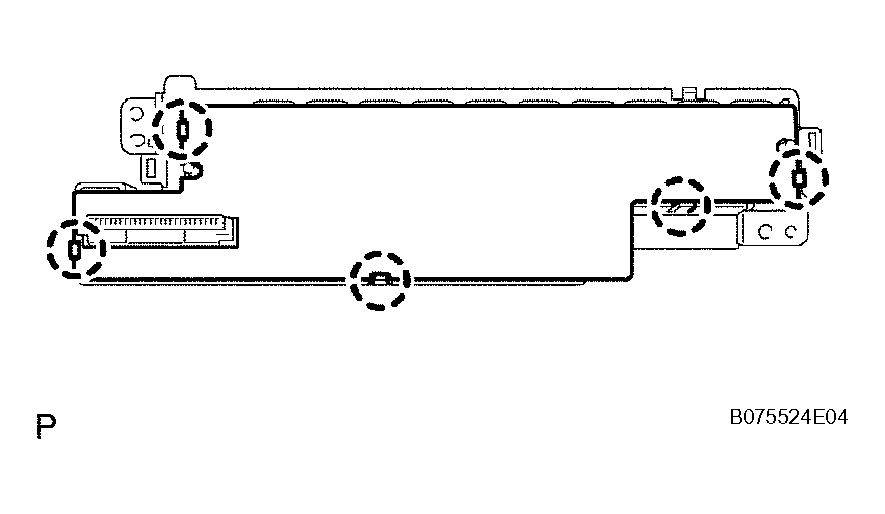

    1. Attach the 5 claws to install the meter circuit plate.
      Fig 10: Attaching Meter Circuit Plate Claws
      G04476244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push the connector lock in the direction indicated by the arrow in Fig 11 and install the No. 3 meter circuit plate to the meter circuit plate.
      Fig 11: Pushing Connector Lock
      G04476245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 COMBINATION METER COVER

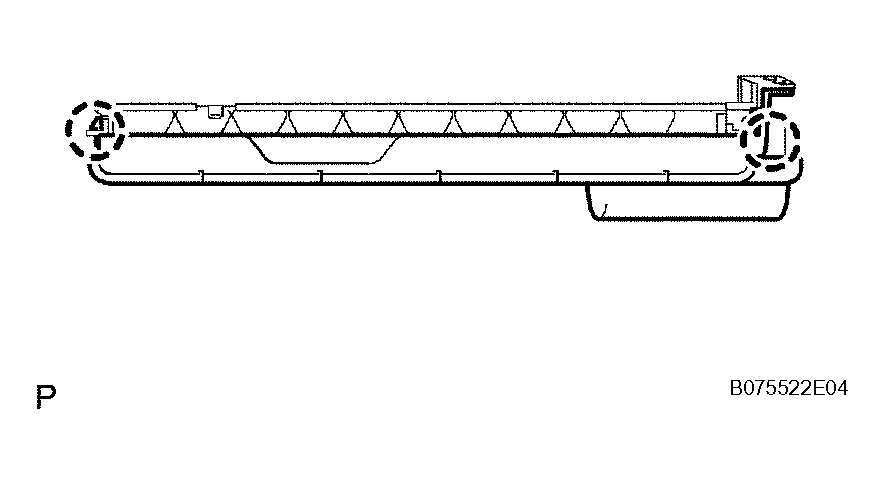

    1. Attach the 2 claws to install the combination meter cover.
      Fig 12: Attaching Combination Meter Cover Claws
      G04476246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

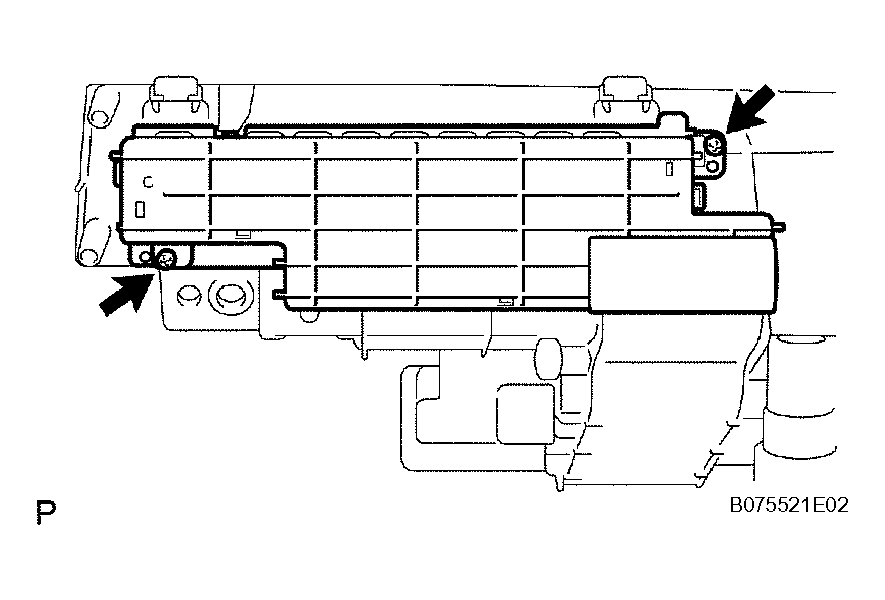

    2. Install the 2 screws.
      Fig 13: Installing Screws
      G04476247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
