Home >> Toyota >> 2007 >> Prius Base >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Ignition System (1NZ-FXE) >> Ignition Coil >> Components

Ignition Coil: Components

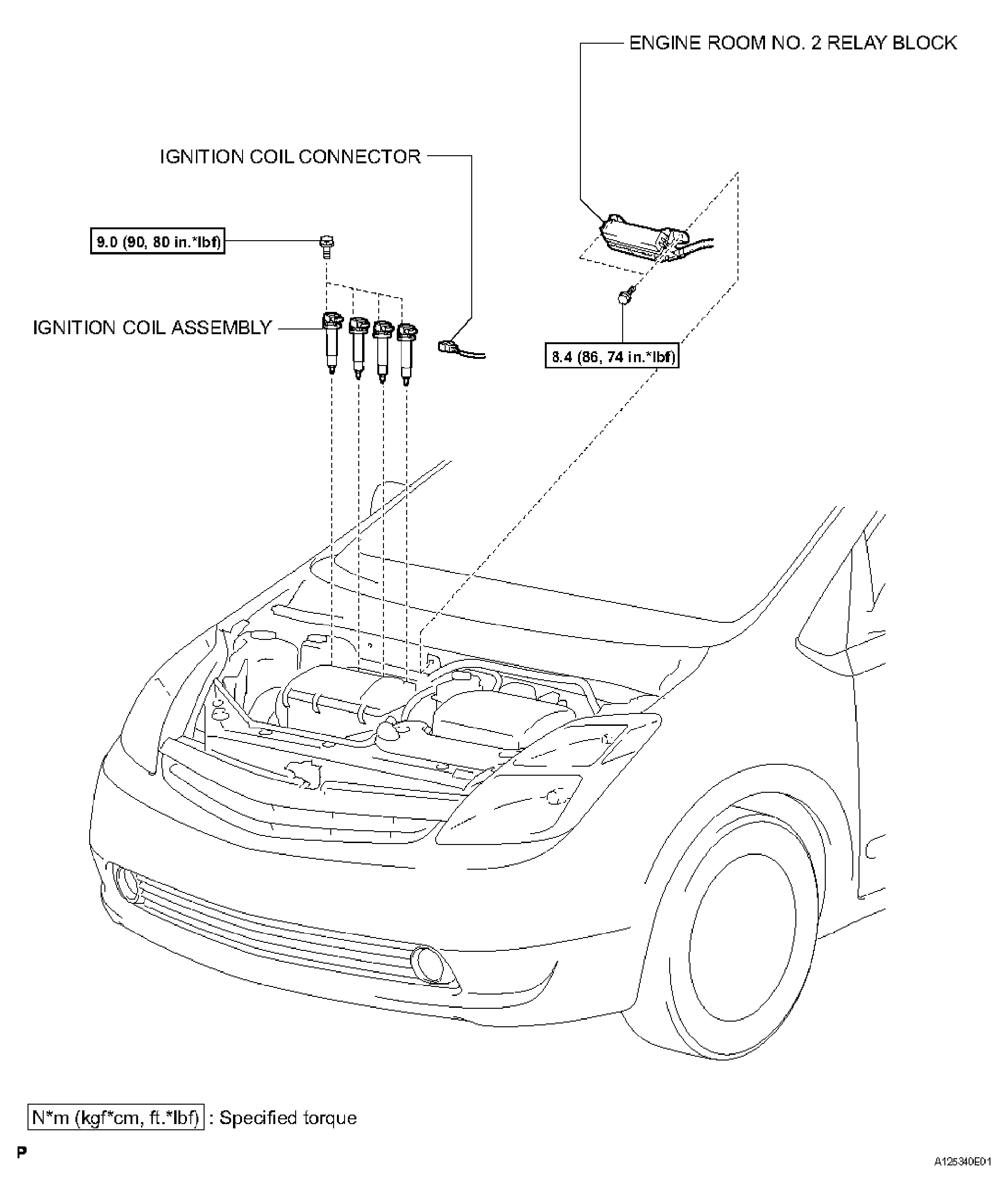

Fig 1: Ignition Coil Replacement Components -- With Torque Specification

G04473171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
