Front Stabilizer Bar: Removal

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE COLUMN HOLE COVER SILENCER SHEET (See  REMOVAL  )
  3. DISCONNECT STEERING SLIDING YOKE SUB-ASSEMBLY (See  REMOVAL  )
  4. DISCONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE FRONT WHEEL
  6. REMOVE FRONT STABILIZER LINK ASSEMBLY LH
    1. Remove the 2 nuts and front stabilizer link LH.

    HINT:

    Use a 6 mm hexagon wrench to hold the stud if the ball joint turns together with the nut.

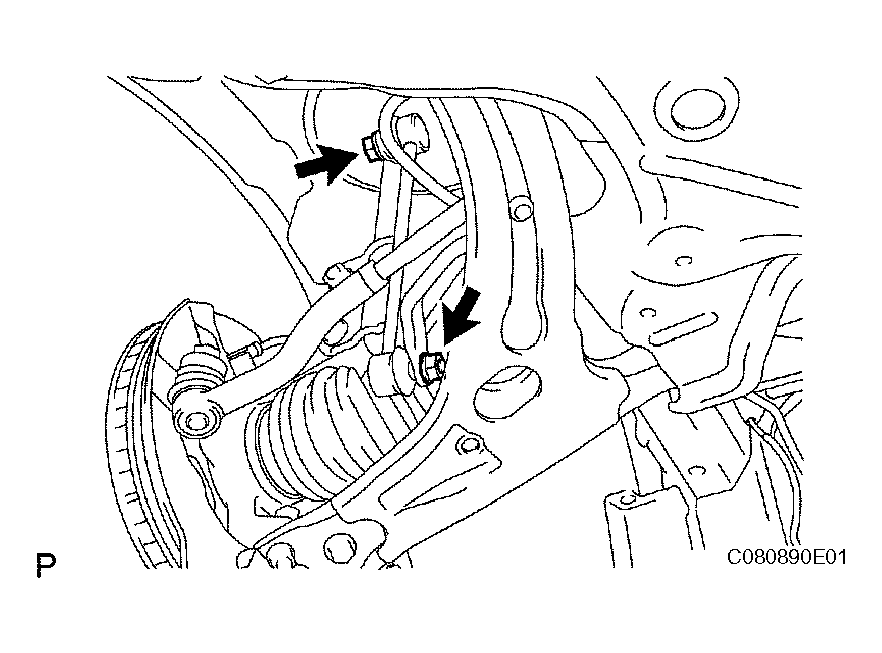

    Fig 1: Removing Nuts And Front Stabilizer Link LH
    G04474431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 2 TIE ROD END SUB-ASSEMBLY (See  REMOVAL  )
  8. DISCONNECT NO. 1 TIE ROD END SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE FLOOR PANEL BRACE FRONT (See  REMOVAL  )
  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See  REMOVAL  )
  11. DISCONNECT FRONT NO. 1 STABILIZER BRACKET LH
    1. Remove the 2 bolts and the No. 1 stabilizer bracket from the front suspension crossmember.
  12. DISCONNECT FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Remove the RH side following the same procedures as the LH side.

  13. REMOVE STEERING INTERMEDIATE SHAFT (See  REMOVAL  )
  14. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
  15. REMOVE STEERING GEAR ASSEMBLY (See  REMOVAL  )
  16. REMOVE FRONT NO. 1 STABILIZER BAR BUSH
    1. Remove the 2 front No. 1 stabilizer bar bushes from the stabilizer bar.
  17. REMOVE FRONT STABILIZER BAR
    1. Remove the front stabilizer bar from the right side of the vehicle.
