Home >> Toyota >> 2007 >> Prius Base >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Rear Axle Beam >> Components

Rear Axle Beam: Components

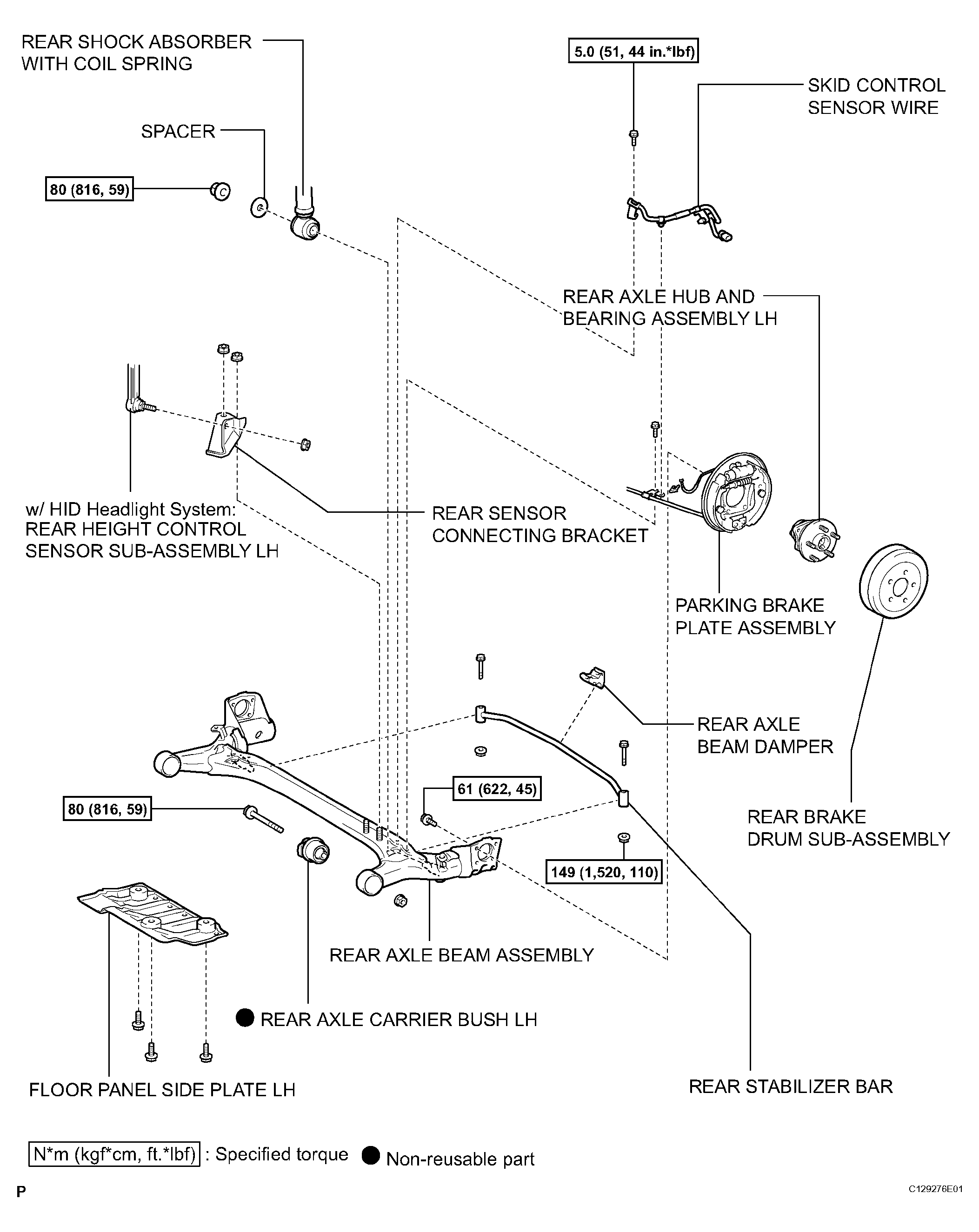

Fig 1: Rear Axle Beam Replacement Components -- With Torque Specification

G04474451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
