Toyota
>>
2007
>>
Prius Base
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Suspension System
>>
Rear Stabilizer Bar
>>
Components
Rear Stabilizer Bar: Components

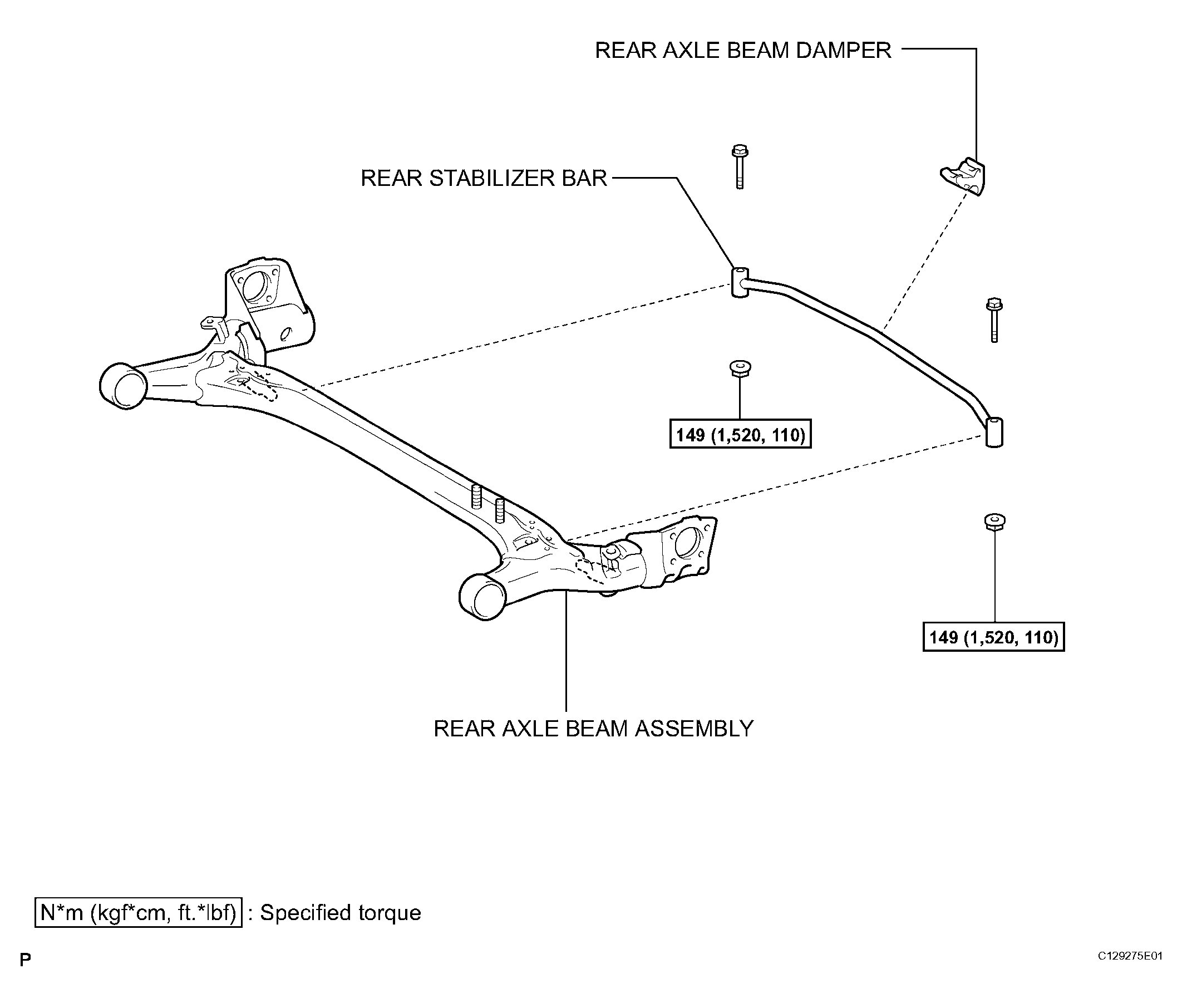

Fig 1: Rear Stabilizer Bar Replacement Components -- With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
