Quarter Window Glass: Components

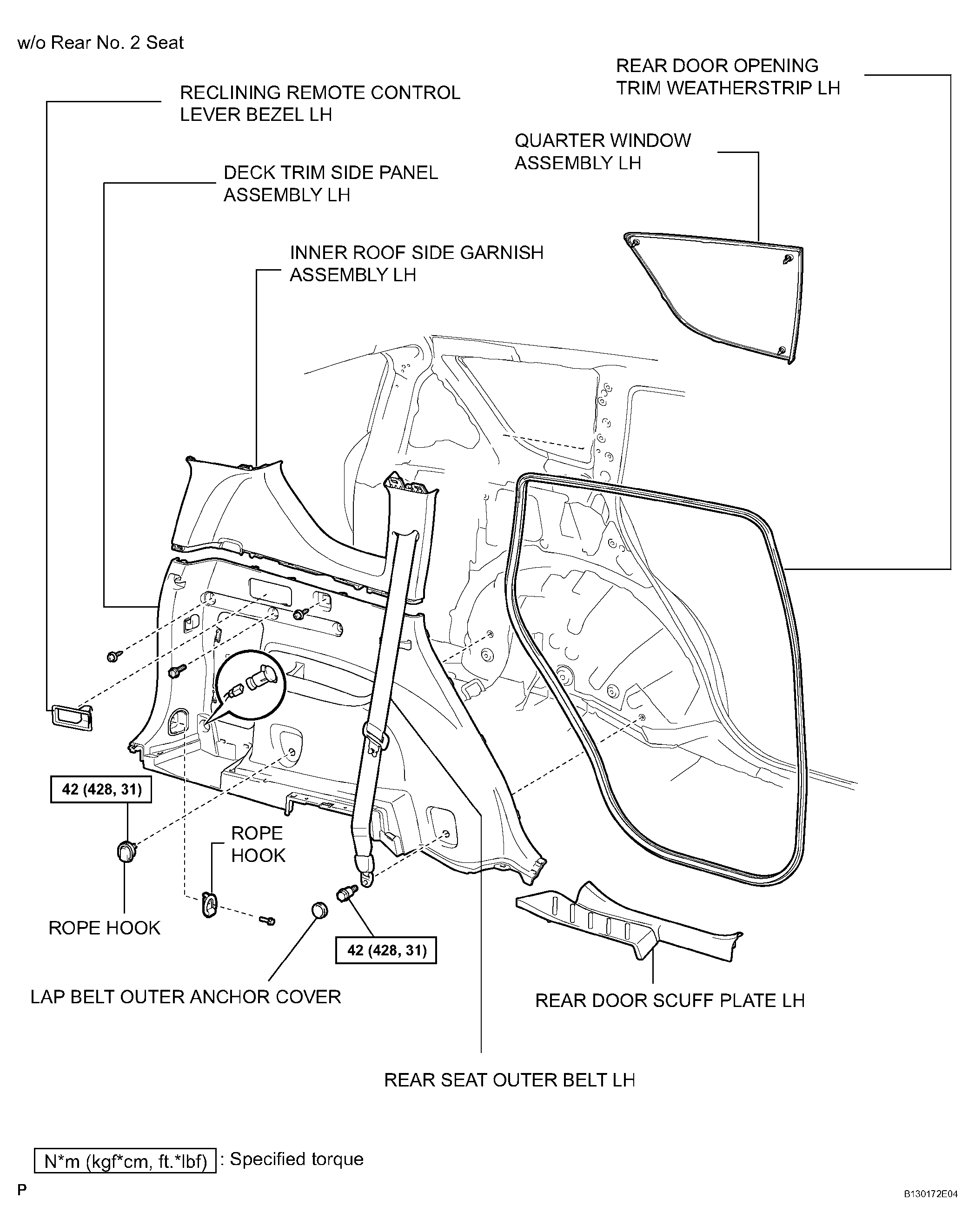

Fig 1: Quarter Window Glass Replacement Components With Torque Specifications (1 Of 4)
G04491476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Quarter Window Glass Components (2 Of 4)
G04491477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

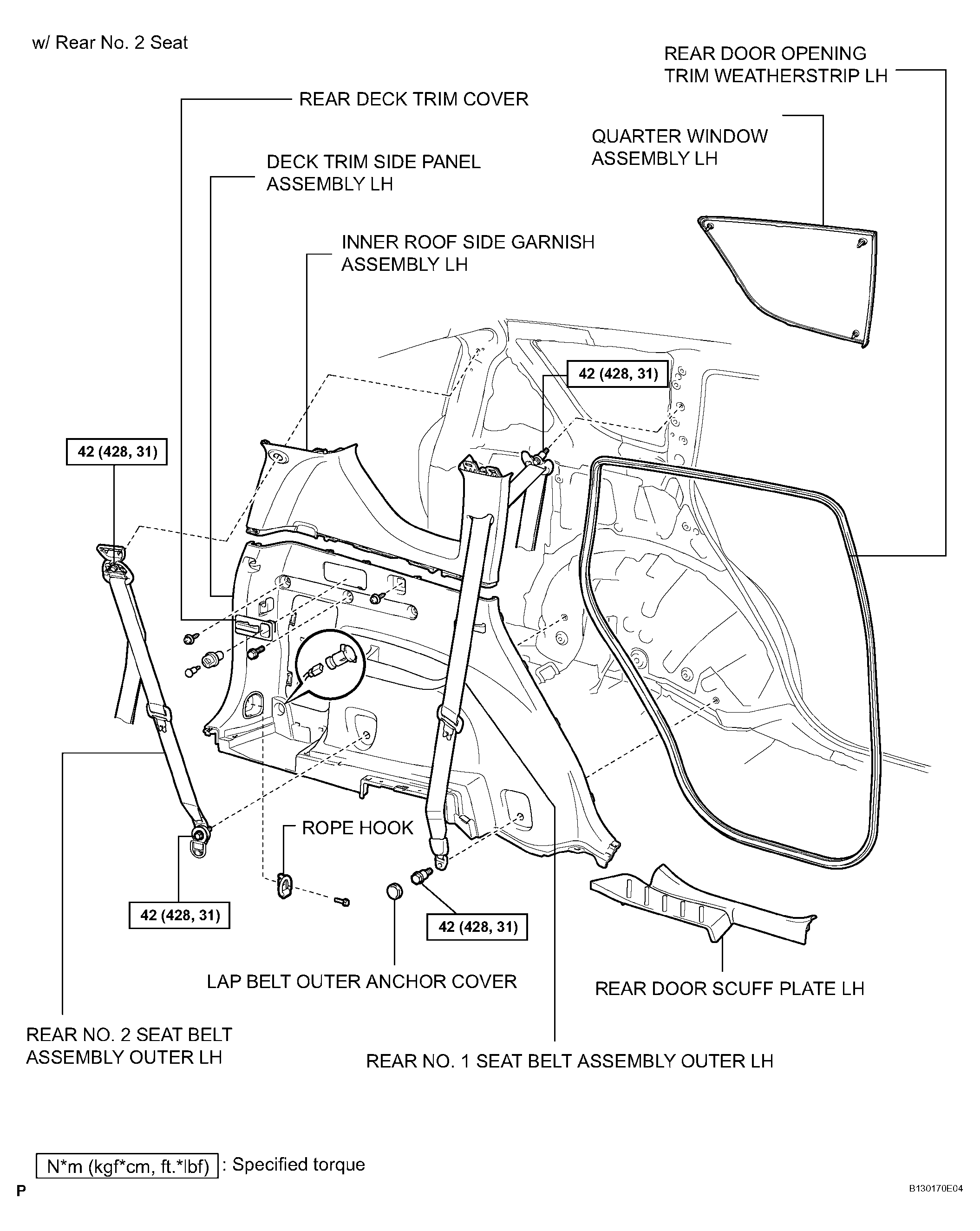

Fig 3: Quarter Window Glass Replacement Components With Torque Specifications (3 Of 4)
G04491478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Quarter Window Glass Components (4 Of 4)
G04491479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
