Home >> Toyota >> 2007 >> RAV4 Base, 3.5 K, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2GR-FE) >> Knock Sensor >> Components

Knock Sensor: Components

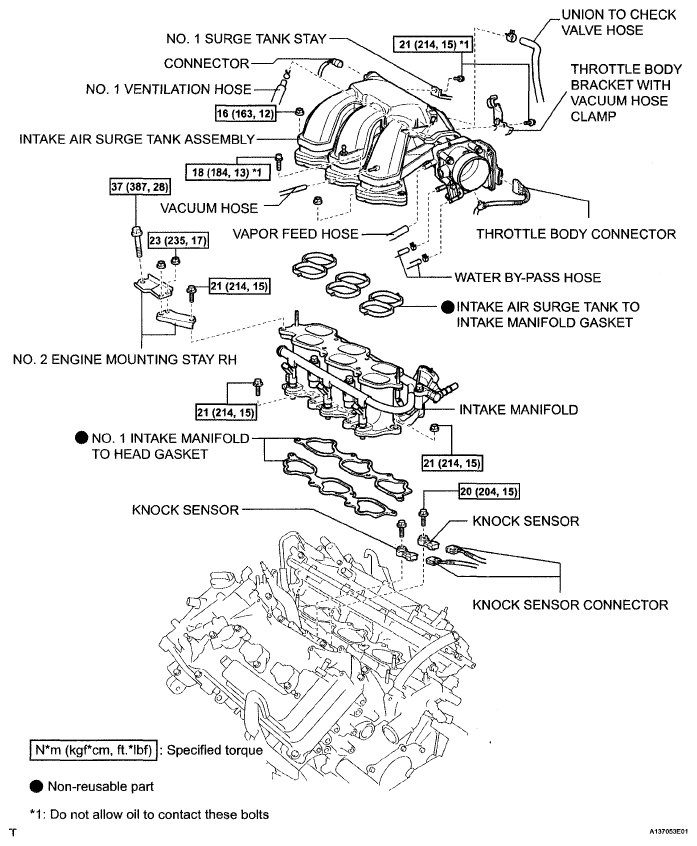

Fig 1: Knock Sensor Replacement Components With Torque Specifications

G05184283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
