Ignition Coil: Installation

  1. INSTALL IGNITION COILS (WITH IGNITER)
    1. Install the ignition coil (with igniter) with the bolt. Install the 8 ignition coils (with igniter).

      Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

  2. CONNECT IGNITION COIL (WITH IGNITER) CONNECTORS

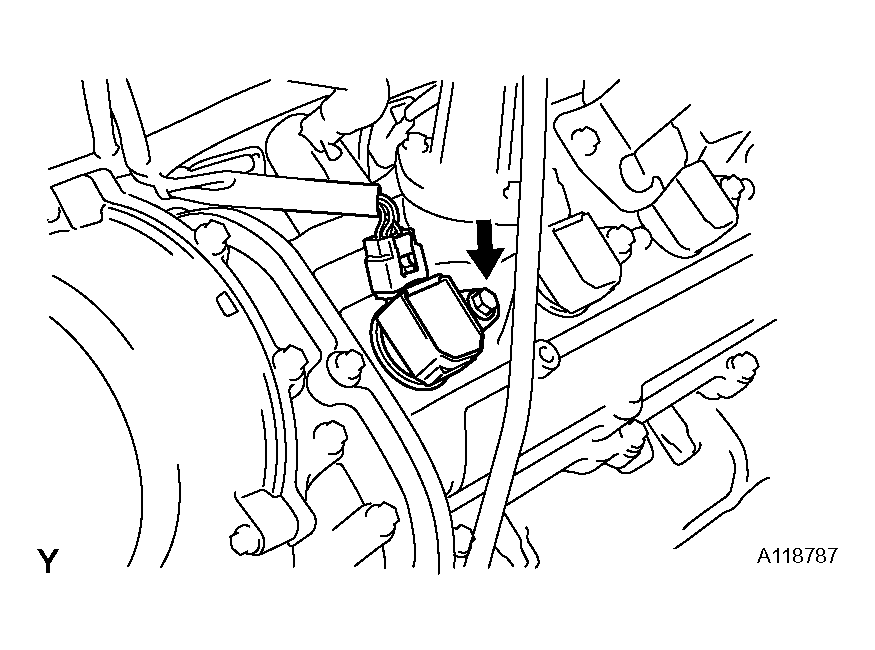

    Fig 1: Installing Bolts & Ignition Coil (With Igniter)
    G04507675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
