Home >> Toyota >> 2007 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2UZ-FE) >> Engine Coolant Temperature Sensor >> Components

Engine Coolant Temperature Sensor: Components

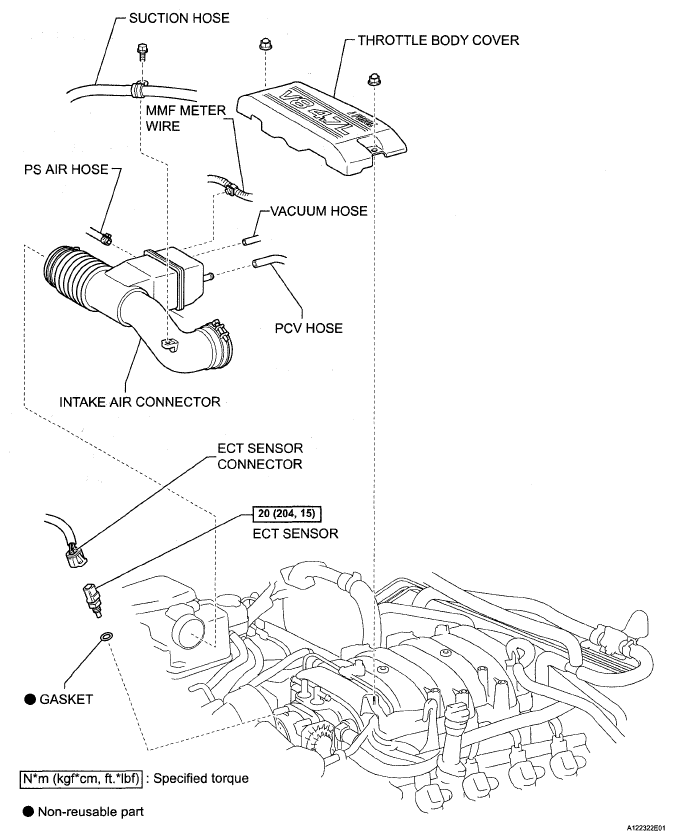

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

G05190651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
